1. Core Technical Parameters

Control Supply：24 VDC

Processor Clock：32-bit 40 MHz

Built-in Memory：256 KB RAM + 512 KB Flash

Drive Communication：DDCS serial bus

PWM Signal Channels：8 isolated outputs

Withstand Isolation：2000 VDC

Operating Temperature：0℃ ~ +70℃

2. Compatibility & Expandability

Same-brand Compatibility

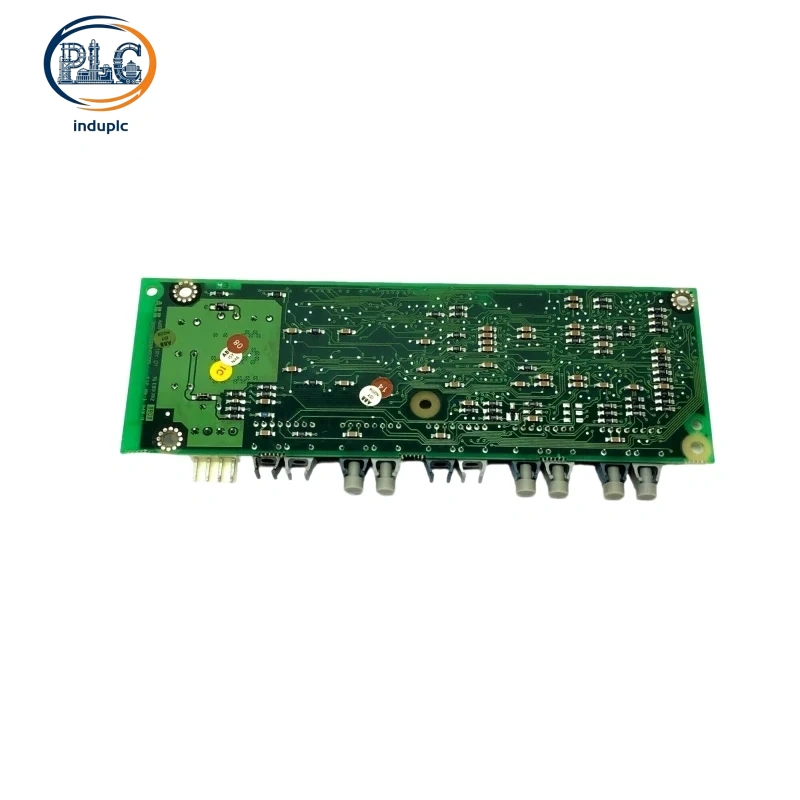

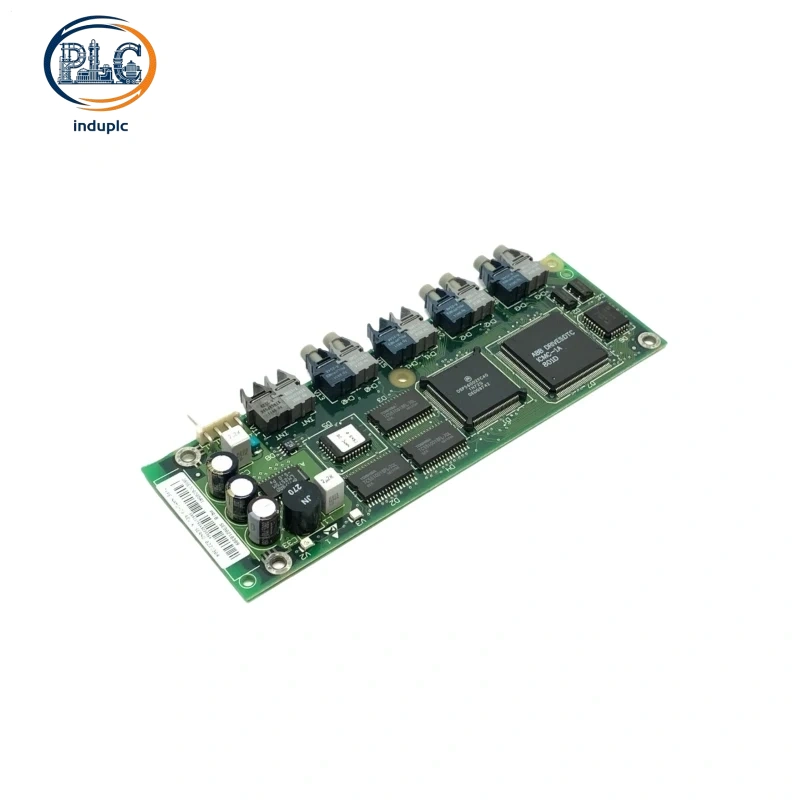

ABB NAMC-03C is main control board dedicated to ABB ACS800 multi-drive power units. Drive service technicians install multiple ABB NAMC-03C inside shared inverter cabinets to build multi-motor synchronous drive systems for metal processing production lines. ABB NAMC-03C inserts standard internal rack slots and transmits speed, torque control pulses to ABB power semiconductor modules without extra signal isolation terminal blocks. Front panel diagnostic LED indicators allow field staff to monitor operating status of ABB NAMC-03C and maintain stable DDCS bus communication with ABB fieldbus adapters and control panels.

Cross-brand Compatibility

Exclusive DDCS proprietary bus and customized internal slot pin layout prevent direct hardware matching of ABB NAMC-03C with third-party frequency converters. External signal transfer terminal boards are required to construct control links connecting ABB NAMC-03C to Siemens or Rockwell drive equipment. Standard PWM pulse output specifications enable ABB NAMC-03C to send drive regulation signals to generic power stacks with no internal circuit reconstruction.

3. Lifecycle Cost Analysis

Service cycle of ABB NAMC-03C lasts 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: DDCS bus signal calibration and internal dust clearance for ABB NAMC-03C costs 34 USD per year, total 10-year maintenance expense: 340 USD

Spare part replacement cost: Main control chip aging damage of ABB NAMC-03C generally occurs once every 7 years, single spare control board price: 442 USD, total replacement expense within 10 years: 442 USD

Retrofit expense saving: Original multi-drive internal wiring harness fully fits ABB NAMC-03C during equipment modernization projects, saving 266 USD extra wiring labor cost compared with incompatible substitute main control boards

Total cumulative running cost for single ABB NAMC-03C across ten service years: 486 USD
