1. Core Technical Parameters

Backplane Supply：24 VDC

Analog Output Channels：8 channels

Output Signal Range：4–20 mA / 0–10 VDC

Channel Isolation：2500 VAC group isolation

Resolution：12-bit conversion precision

Operating Temperature：-20℃ ~ +70℃

Matching Rack Series：ABB S800 I/O backplane

2. Compatibility & Expandability

Same-brand Compatibility

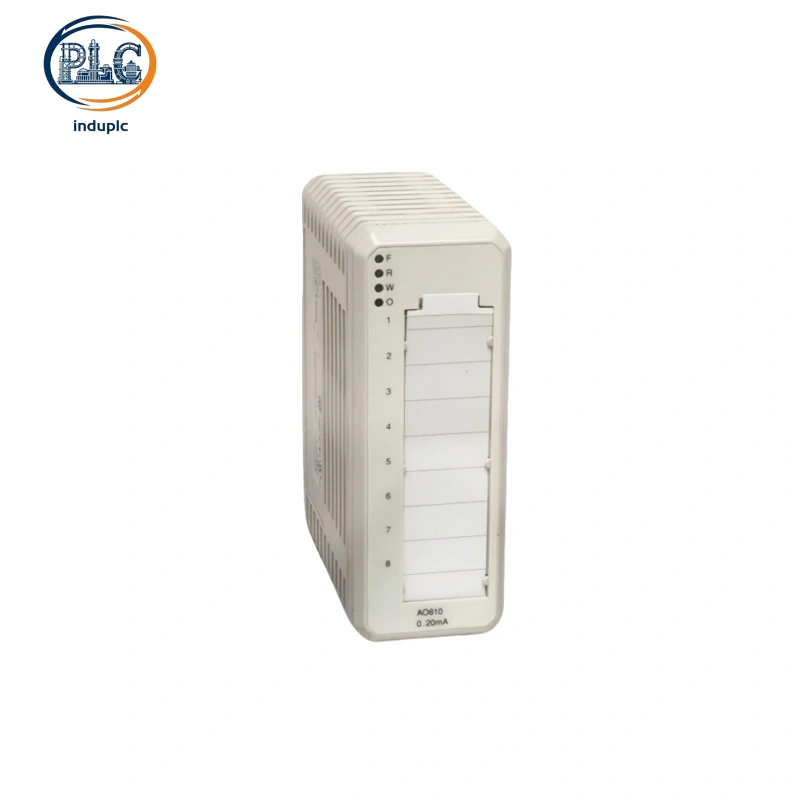

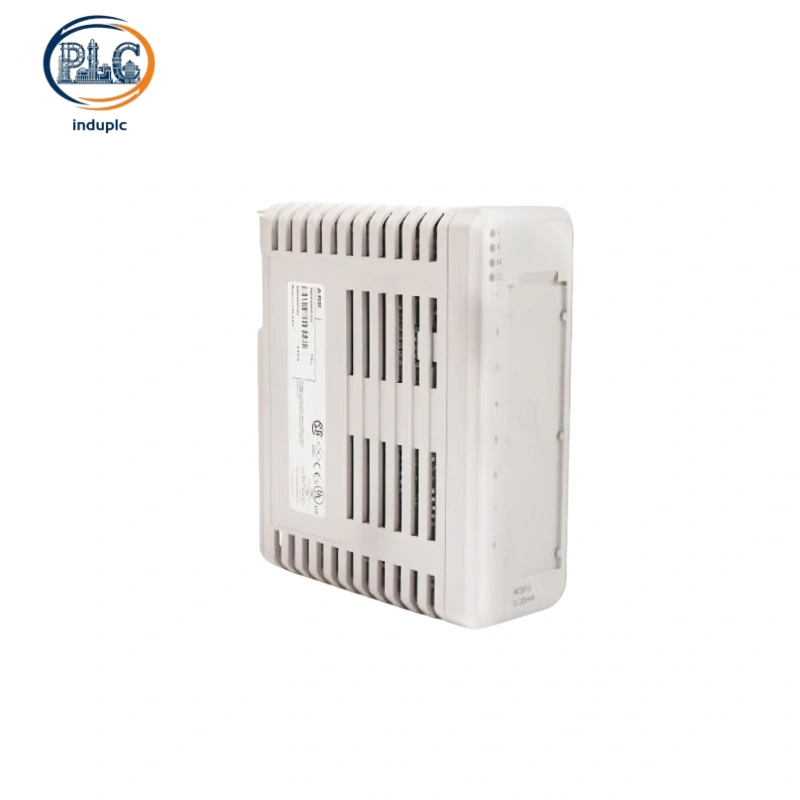

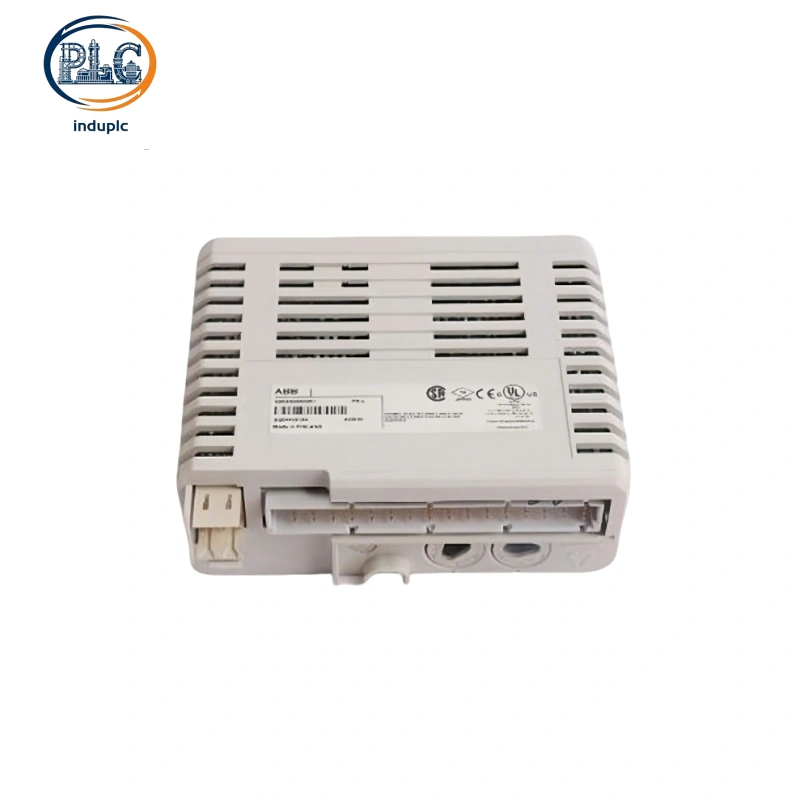

ABB AO810V2 is standard analog output module for ABB AC800M distributed control system. On-site automation technicians install multiple ABB AO810V2 on DSBB rack backplanes to expand analog control output points for valve and actuator regulation loops. ABB AO810V2 snaps into single-width S800 rack slots and executes digital-to-analog conversion for control logic signals sent from ABB PM8xx CPU units without external signal amplifiers. Matched TU800 series terminal bases deliver stable wiring contact to ensure ABB AO810V2 transmits continuous regulating signals to all ABB field control valves.

Cross-brand Compatibility

Proprietary S800 backplane bus protocol prevents direct hardware pairing of ABB AO810V2 with third-party controller racks. External signal transfer terminal blocks are required to build control signal links connecting ABB AO810V2 to Siemens and Schneider PLC hardware. Global standard 4–20mA analog output specification allows ABB AO810V2 to drive most aftermarket proportional actuators with no internal circuit refitting.

3. Lifecycle Cost Analysis

Service cycle of ABB AO810V2 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Output channel linearity calibration and internal dust clearance for ABB AO810V2 costs 32 USD per year, total 10-year maintenance expense: 320 USD

Spare part replacement cost: Analog output drive circuit damage of ABB AO810V2 generally occurs once every 8 years, single spare module price: 426 USD, total replacement expense within 10 years: 426 USD

Retrofit expense saving: Original cabinet field wiring fully adapts to ABB AO810V2 during control cabinet upgrading projects, saving 264 USD extra wiring labor cost compared with incompatible substitute analog output modules

Total cumulative running cost for single ABB AO810V2 across ten service years: 482 USD
