1. Core Technical Parameters

Backplane Supply：24 VDC

Bus Protocol：Modbus Master RTU

Max Connected Slaves：31 units

Transmission Speed：1200–115200 bit/s

Isolation Voltage：2000 VAC channel isolation

Operating Temperature：-20℃ ~ +70℃

Rack Platform：ABB AC800M controller chassis

2. Compatibility & Expandability

Same-brand Compatibility

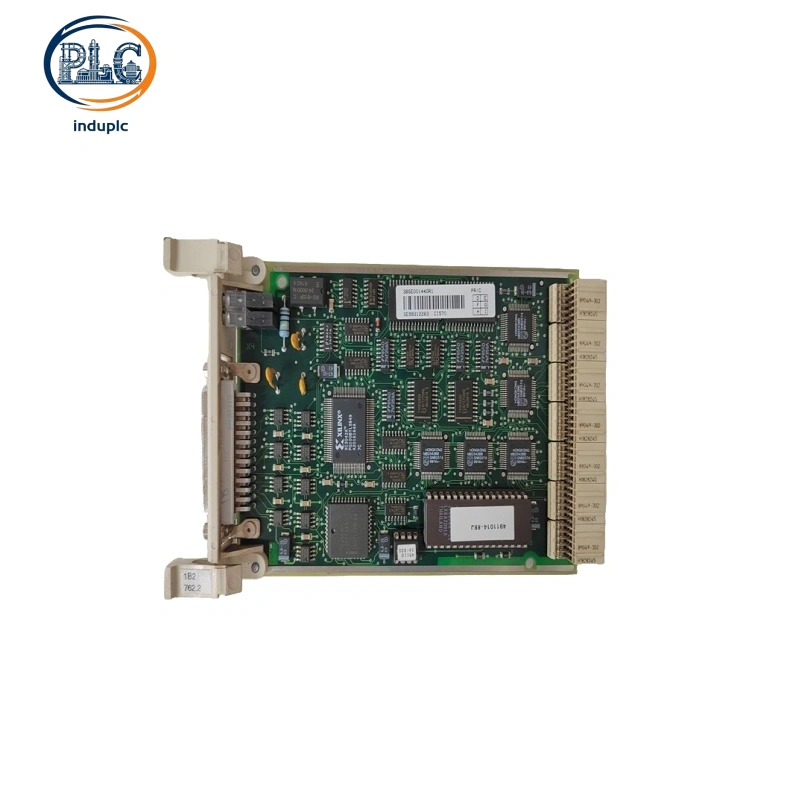

ABB CI532V03 is a dedicated Modbus master communication interface card for ABB AC800M DCS control system. On-site process technicians install multiple ABB CI532V03 on cabinet backplanes to build multi-channel serial bus networks for factory motor and sensor groups. ABB CI532V03 inserts standard single rack slots and transmits bidirectional parameter data with ABB PM8xx CPU modules and all S800 series I/O hardware without extra signal transfer terminal boards. Front panel address configuration switches maintain stable cyclic data communication between ABB CI532V03 and all original ABB inverters and measuring transmitters.

Cross-brand Compatibility

Exclusive AC800M internal backplane bus architecture prevents direct hardware interconnection of ABB CI532V03 to third-party main controllers. Independent protocol conversion gateways are required to build serial data links connecting ABB CI532V03 with Siemens or Schneider PLC hosts. Industry-standard Modbus RTU specification allows ABB CI532V03 to collect operational signals from most aftermarket field instruments with no internal circuit refitting.

3. Lifecycle Cost Analysis

Service cycle of ABB CI532V03 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Serial bus signal calibration and internal dust clearance for ABB CI532V03 costs 34 USD per year, total 10-year maintenance expense: 340 USD

Spare part replacement cost: Modbus transceiver chip breakdown of ABB CI532V03 generally occurs once every 7 years, single spare module price: 442 USD, total replacement expense within 10 years: 442 USD

Retrofit expense saving: Original cabinet serial cable layout fully fits ABB CI532V03 during control system modernization, saving 276 USD extra construction labor cost compared with incompatible substitute Modbus master interface modules

Total cumulative running cost for single ABB CI532V03 across ten service years: 506 USD
