1. Core Technical Parameters

Backplane Power：5 VDC

Signal Channel Type：16-channel digital output

Output Rating：0.5 A per channel

Group Isolation：2000 VAC

Bus Protocol：Advant Master Bus

Operating Temperature：0℃ ~ +70℃

Rack Matching：ABB Advant Controller 400 series chassis

2. Compatibility & Expandability

Same-brand Compatibility

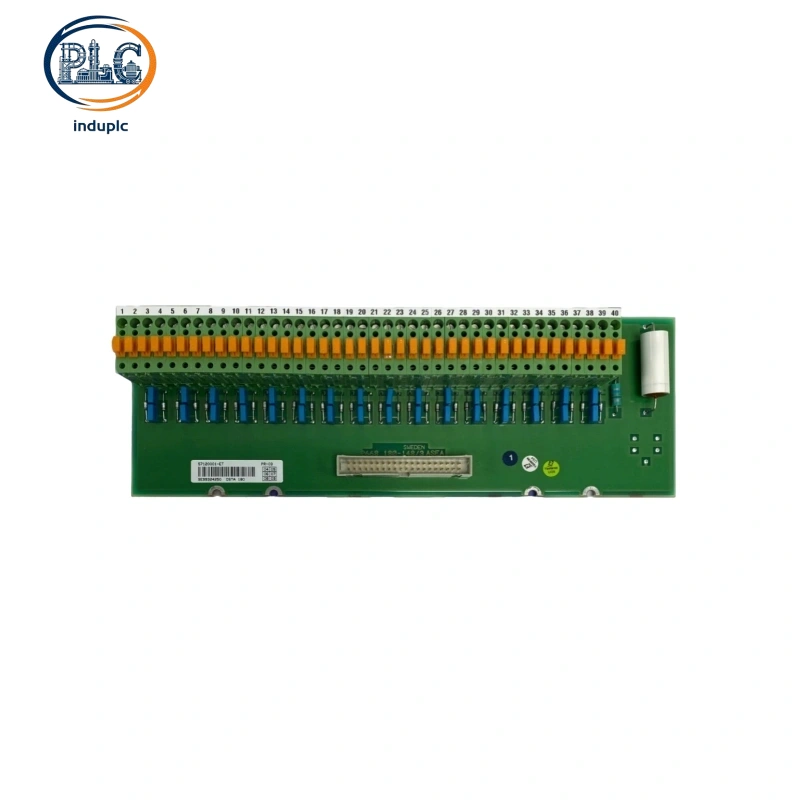

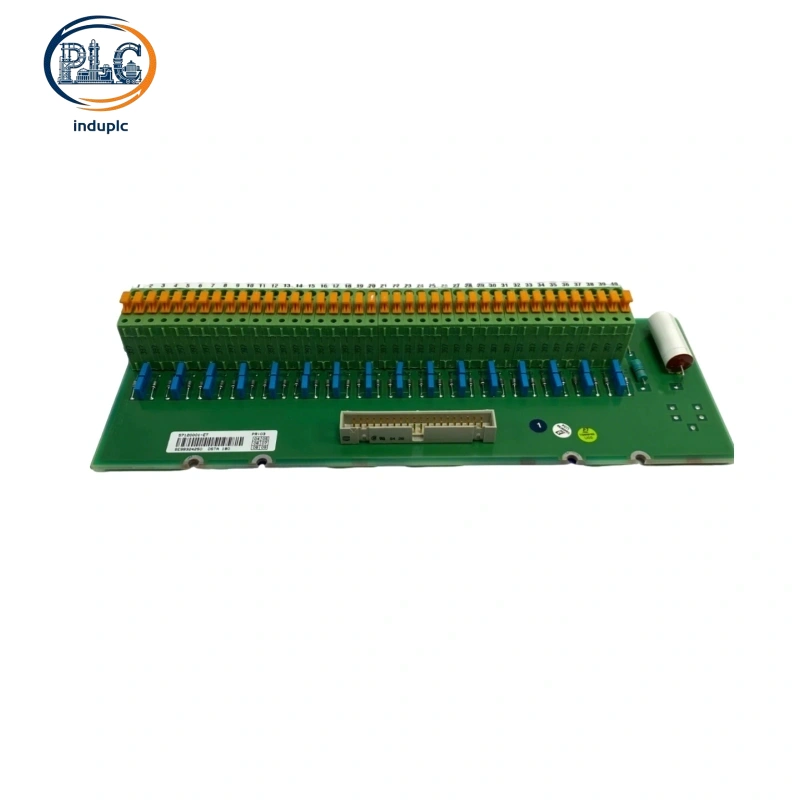

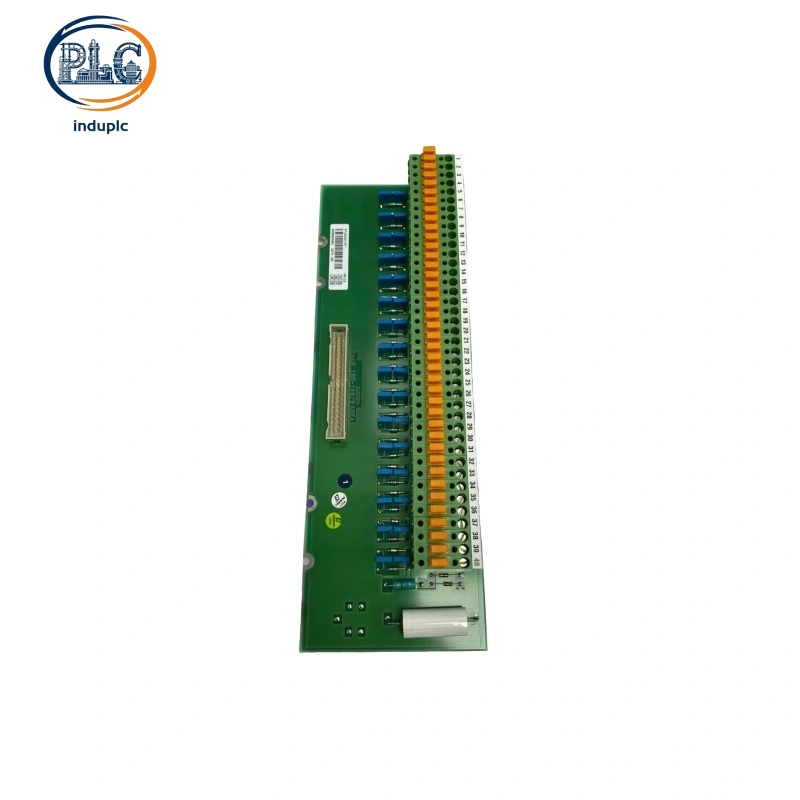

ABB DSTA180 is a digital output module customized for ABB Advant 400 control rack platform. Site automation technicians install multiple ABB DSTA180 on cabinet backplanes to expand discrete actuator control ports for pulp and chemical process lines. ABB DSTA180 slides into standard single rack slots and receives control logic signals from ABB PM400 CPU units without extra signal relay terminal strips. Front-mounted diagnostic LED arrays help maintenance crews track channel operation status of ABB DSTA180 and maintain stable drive output to ABB solenoid valves and contactors.

Cross-brand Compatibility

Exclusive Advant proprietary backplane bus design prevents direct hardware connection of ABB DSTA180 to third-party PLC racks. External signal transfer terminal blocks are required to build control signal links connecting ABB DSTA180 with Siemens or Schneider control hosts. Standard 24V digital drive signal specifications allow ABB DSTA180 to trigger generic aftermarket relay loads with no internal circuit modification.

3. Lifecycle Cost Analysis

Service cycle of ABB DSTA180 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Channel continuity test and internal dust clearance for ABB DSTA180 costs 28 USD per year, total 10-year maintenance expense: 280 USD

Spare part replacement cost: Output transistor array failure of ABB DSTA180 generally takes place once every 8 years, single spare module price: 384 USD, total replacement expense within 10 years: 384 USD

Retrofit expense saving: Original cabinet field wiring fully fits ABB DSTA180 during control system overhaul, saving 226 USD extra wiring labor cost compared with incompatible substitute digital output modules

Total cumulative running cost for single ABB DSTA180 across ten service years: 438 USD
