1. Core Technical Parameters

Backplane Power Input：24 VDC

Communication Protocol：FOUNDATION Fieldbus H1

Max Field Device Count：32 field instruments

Bus Operating Speed：31.25 kbps

Galvanic Isolation Grade：2000 VAC

Operating Temperature：-20℃ ~ +70℃

Mounting Carrier：ABB Freelance DCS rack chassis

2. Compatibility & Expandability

Same-brand Compatibility

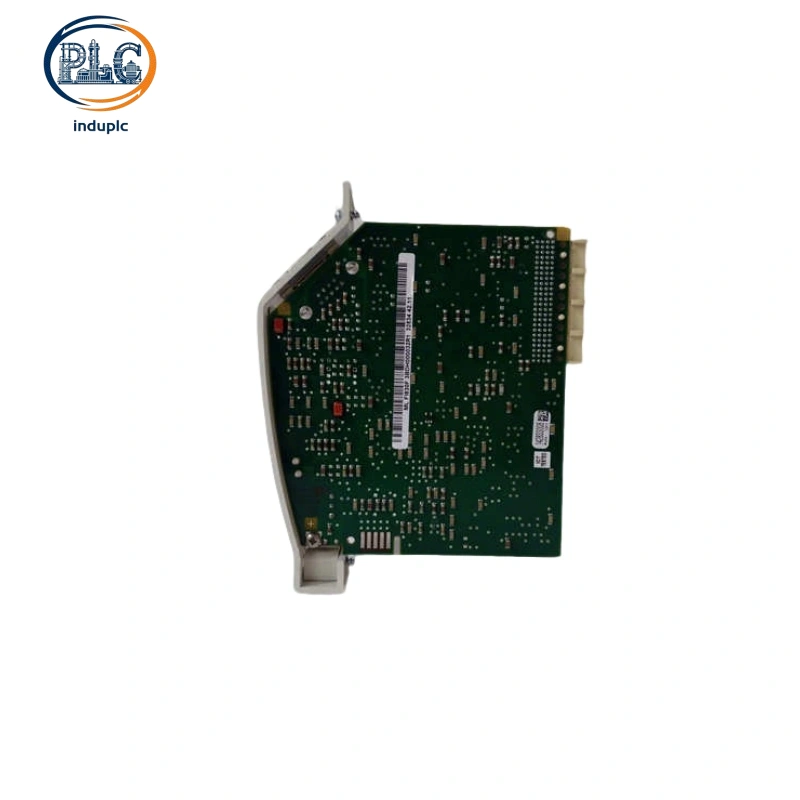

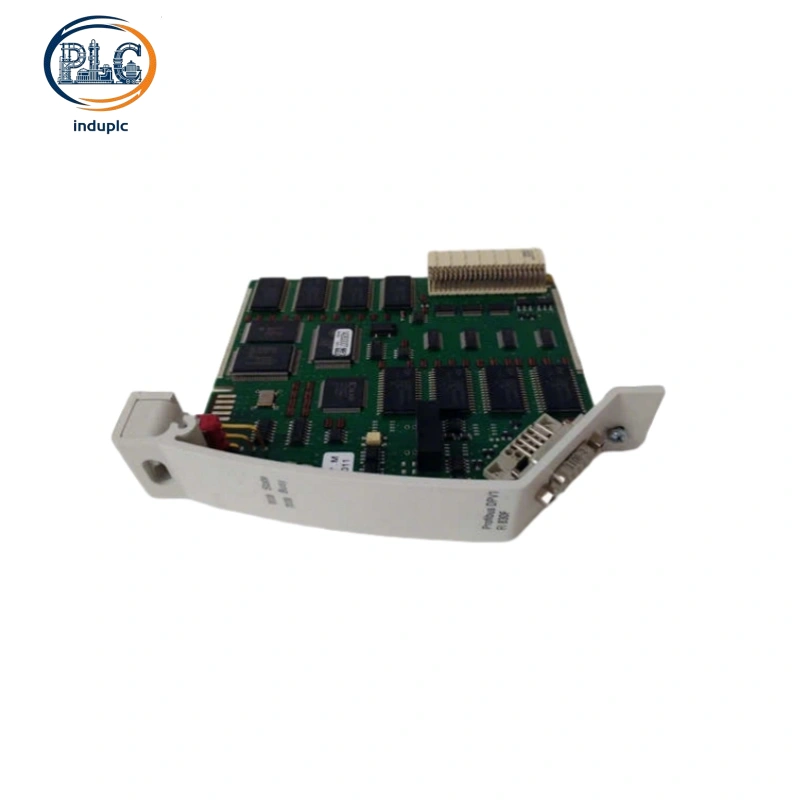

ABB FI830F is a dedicated fieldbus interface module developed for ABB Freelance distributed control platform. Process automation technicians install multiple ABB FI830F on cabinet backplanes to expand FOUNDATION Fieldbus loops for chemical and water treatment plants. ABB FI830F inserts standard single rack slots and exchanges real-time process values with ABB AC700F CPU units and Freelance series signal boards without auxiliary signal transfer adapters. Front panel address dial switches support offline configuration to maintain stable cyclic data transmission between ABB FI830F and factory-installed ABB smart transmitters and valve positioners.

Cross-brand Compatibility

Exclusive Freelance internal rack bus architecture blocks direct hardware connection of ABB FI830F to third-party main controllers. Independent protocol conversion gateways are required to build data links connecting ABB FI830F with Siemens or Schneider PLC equipment. Global unified FOUNDATION Fieldbus H1 industry standard allows ABB FI830F to collect measurement feedback signals from most aftermarket smart field instruments with no internal circuit refitting.

3. Lifecycle Cost Analysis

Service cycle of ABB FI830F covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Fieldbus signal calibration and internal dust clearance for ABB FI830F costs 34 USD per year, total 10-year maintenance expense: 340 USD

Spare part replacement cost: Fieldbus communication chip breakdown of ABB FI830F generally occurs once every 7 years, single spare module price: 442 USD, total replacement expense within 10 years: 442 USD

Retrofit expense saving: Original cabinet wiring layout fully matches ABB FI830F during DCS system modernization projects, saving 274 USD extra construction labor cost compared with incompatible substitute fieldbus interface modules

Total cumulative running cost for single ABB FI830F across ten service years: 508 USD
