1. Core Technical Parameters

Supply Voltage：24 VDC

DDCS Communication Speed：4 Mbit/s

Optical Isolation Rating：2500 VDC

Max CS31 Nodes per Master：30 units

Operating Temperature：-20℃ ~ +70℃

Fiber Max Distance：10 m

Mounting Standard：DIN rail TS35

2. Compatibility & Expandability

Same-brand Compatibility

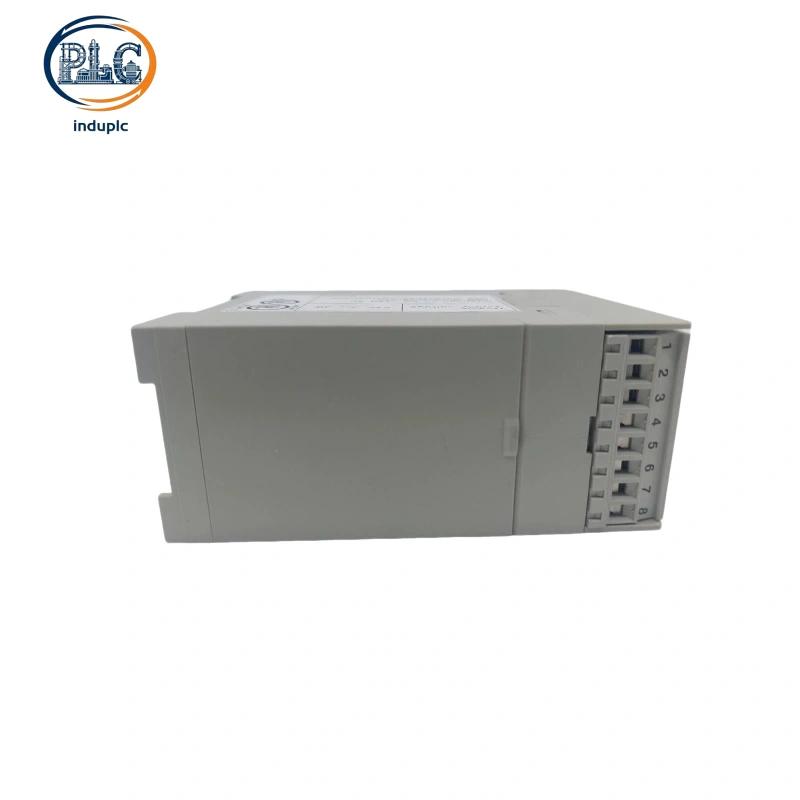

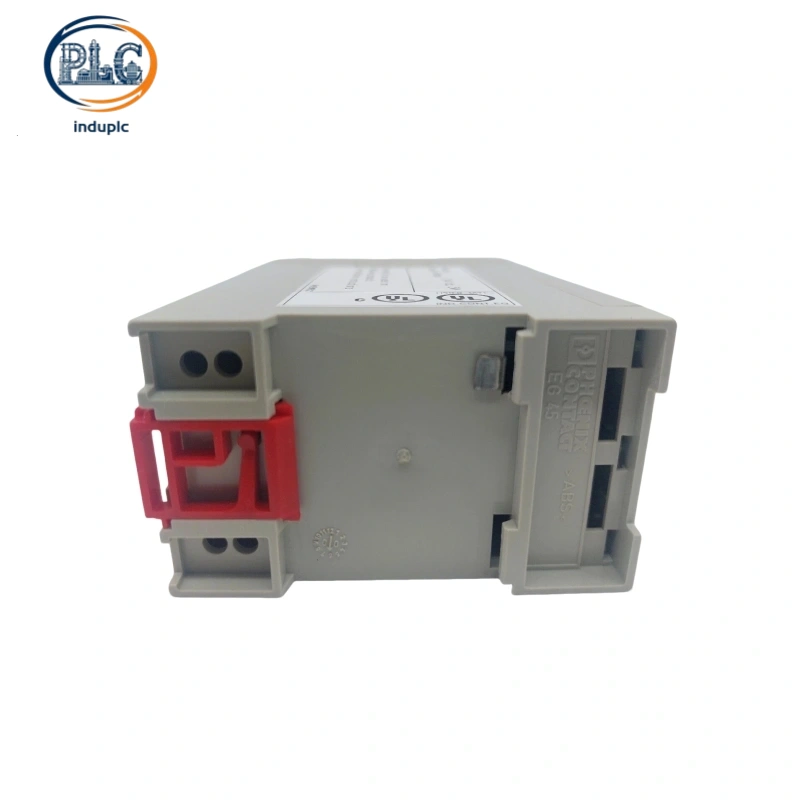

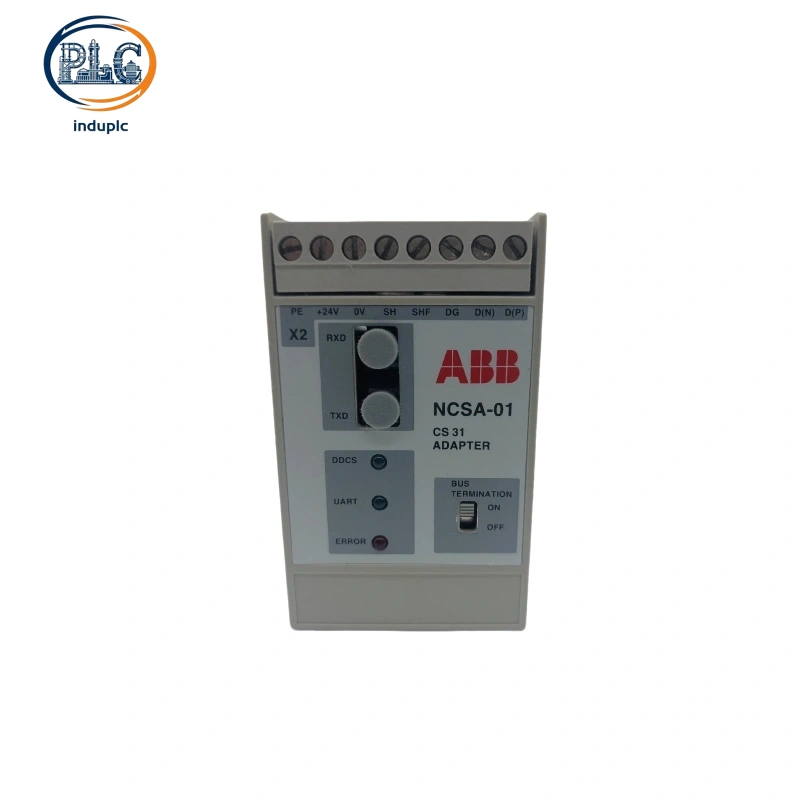

ABB NCSA-01 acts as CS31 to DDCS optical adapter for ABB classic variable frequency drives. Drive maintenance technicians install multiple ABB NCSA-01 inside shared control cabinets to link multi-motor drive groups to ABB Procontic CS31 PLC hosts. ABB NCSA-01 connects via Versatile Link fiber ports and exchanges real-time speed, torque and fault data with ABB ACS300, ACS600 and DCS500 drive units without extra signal isolation boards. Built-in DIP termination switches eliminate signal reflection so ABB NCSA-01 maintains stable cyclic communication with ABB 07KR31 and 07KT series CS31 CPU modules.

Cross-brand Compatibility

Exclusive DDCS fiber communication protocol prevents direct data interconnection of ABB NCSA-01 to non-ABB inverters. External serial protocol converters become mandatory to build signal links connecting ABB NCSA-01 with Siemens or Schneider drive control systems. Standard CS31 serial electrical signals allow ABB NCSA-01 to transmit drive operating feedback to most aftermarket third-party monitoring panels with no internal circuit reconstruction.

3. Lifecycle Cost Analysis

Service cycle of ABB NCSA-01 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Fiber port cleaning and CS31 bus signal testing for ABB NCSA-01 costs 27 USD per year, total 10-year maintenance expense: 270 USD

Spare part replacement cost: Optical transceiver chip aging failure of ABB NCSA-01 generally emerges once every 8 years, single spare module price: 364 USD, total replacement expense within 10 years: 364 USD

Retrofit expense saving: Original drive fiber wiring and cabinet DIN rails fully fit ABB NCSA-01 during production line renovation, saving 206 USD extra wiring labor cost compared with incompatible substitute CS31-DDCS adapters

Total cumulative running cost for single ABB NCSA-01 across ten service years: 428 USD
