1. Core Technical Parameters

Backplane Power：24 VDC

Main CPU Clock：1000 MHz

Built-in RAM：256 MB

Program Flash Storage：512 MB

Supported Communication：Ethernet, PROFIBUS DP, Modbus TCP

Operating Temperature：-20℃ ~ +70℃

Applicable Rack Platform：ABB AC800M control rack

2. Compatibility & Expandability

Same-brand Compatibility

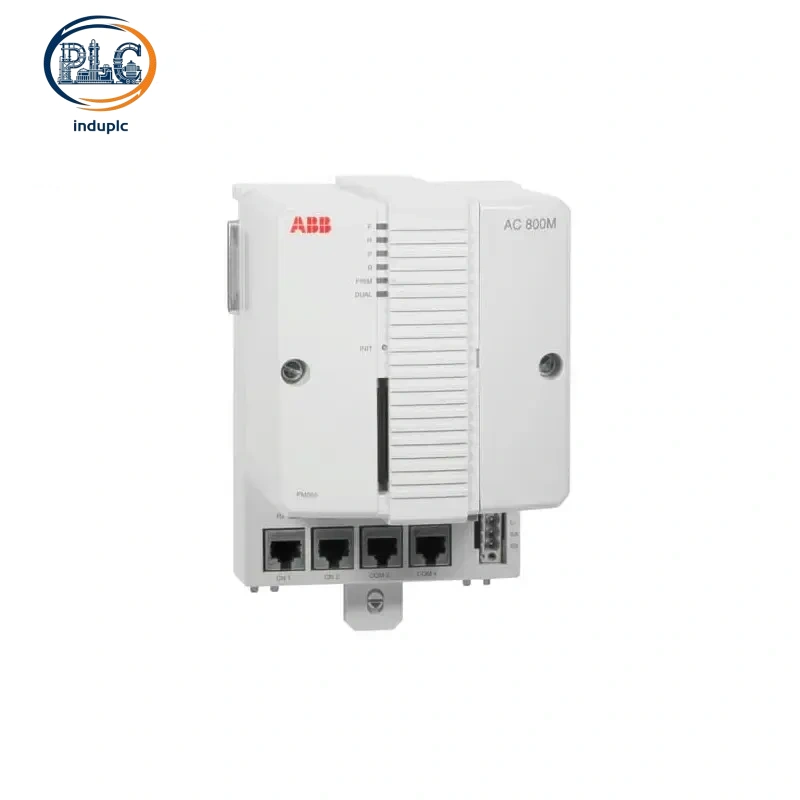

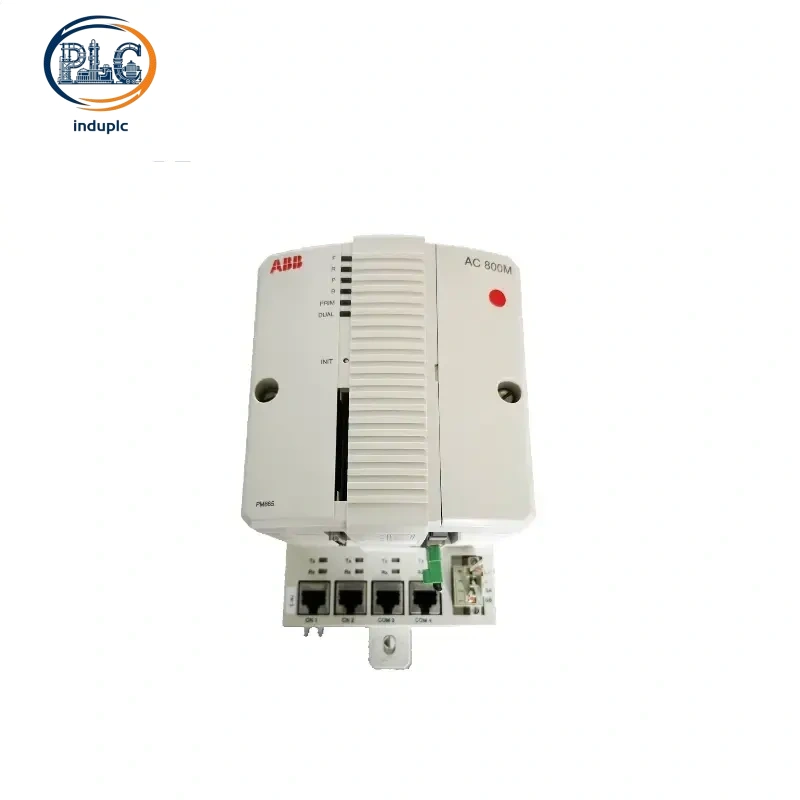

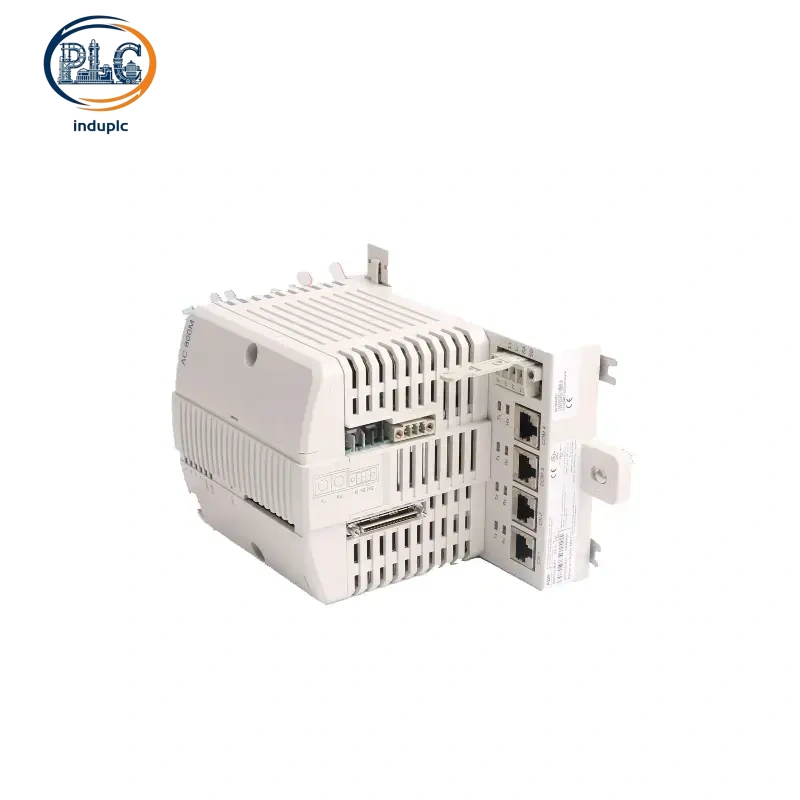

ABB PM865K01 is high-performance main processing unit for ABB AC800M distributed control system. Plant automation technicians install multiple ABB PM865K01 on rack backplanes to construct dual redundant master control stations for large-scale process industries. ABB PM865K01 slides into standard single-width rack slots and processes real-time logic data with all ABB S800 analog and digital I/O modules without extra signal conversion hardware. Front panel service ports support offline program download to maintain stable operation of ABB PM865K01 alongside factory-deployed ABB transmitters and drive units.

Cross-brand Compatibility

Exclusive AC800M internal backplane bus protocol prevents direct hardware interconnection of ABB PM865K01 with third-party PLC controllers. Independent protocol conversion gateways are required to build bidirectional data links connecting ABB PM865K01 to Siemens and Schneider automation hosts. Standard Ethernet and PROFIBUS industry specifications allow ABB PM865K01 to collect measurement signals from most aftermarket field sensors with no internal circuit reconstruction.

3. Lifecycle Cost Analysis

Service cycle of ABB PM865K01 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Logic backup verification and internal dust removal for ABB PM865K01 costs 44 USD per year, total 10-year maintenance expense: 440 USD

Spare part replacement cost: Main processing chip failure of ABB PM865K01 generally occurs once every 6 years, single spare CPU module price: 540 USD, total replacement expense within 10 years: 540 USD

Retrofit expense saving: Original cabinet wiring layout fully matches ABB PM865K01 during control system modernization, saving 328 USD extra construction labor cost compared with incompatible substitute CPU modules

Total cumulative running cost for single ABB PM865K01 across ten service years: 652 USD
