1. Core Technical Parameters

Backplane Supply：24 VDC

Safety Logic Execution Cycle：2 ms

Safety I/O Channel Count：8 dual redundant channels

Safety Standard Compliance：IEC 61508 SIL 2

Isolation Withstand Voltage：2500 VAC

Operating Temperature：-20℃ ~ +70℃

Applicable Rack：AC800M system backplane

2. Compatibility & Expandability

Same-brand Compatibility

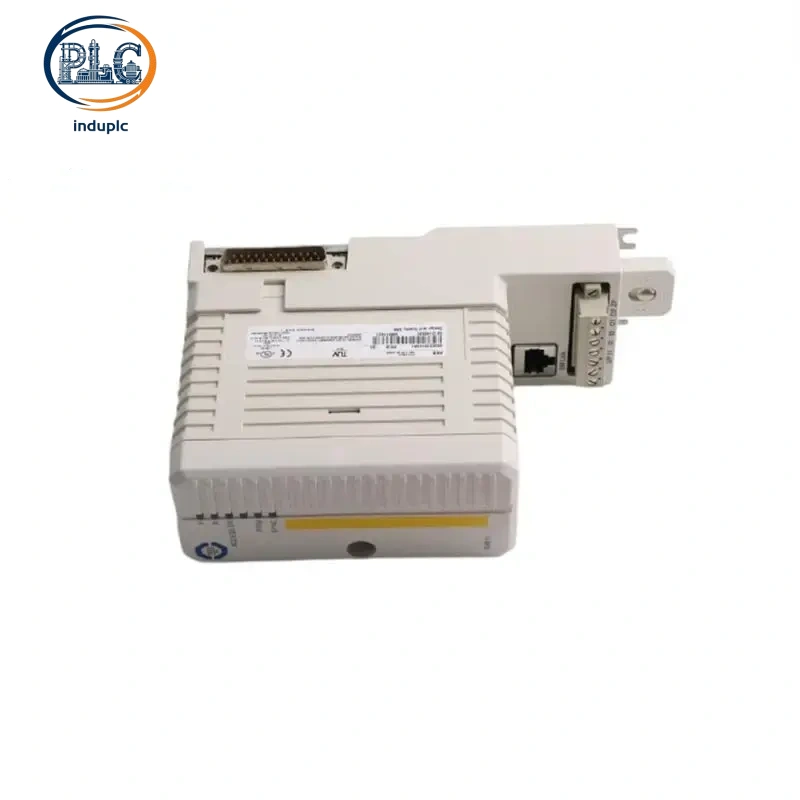

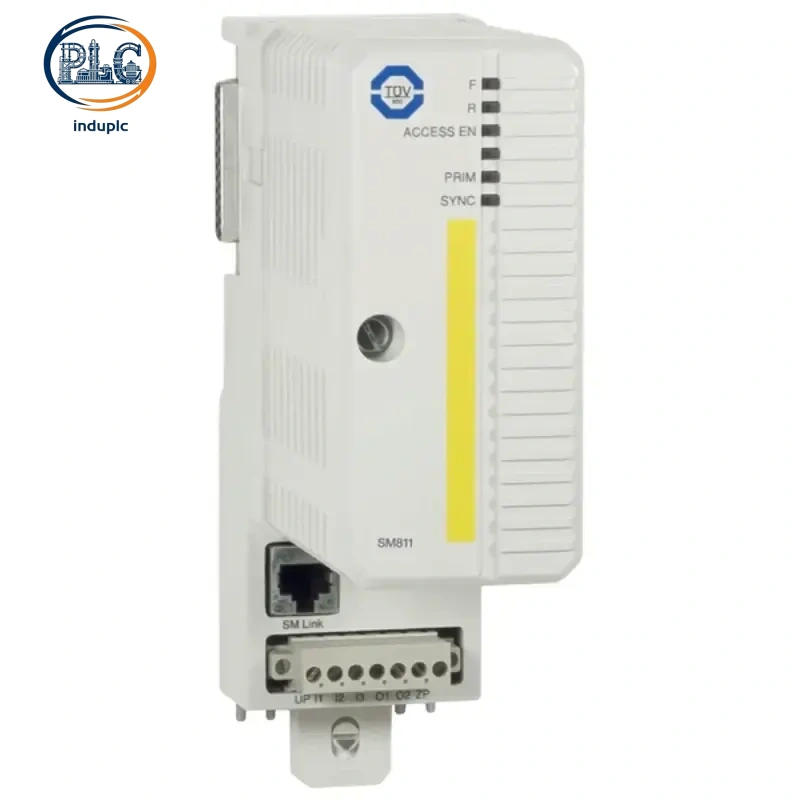

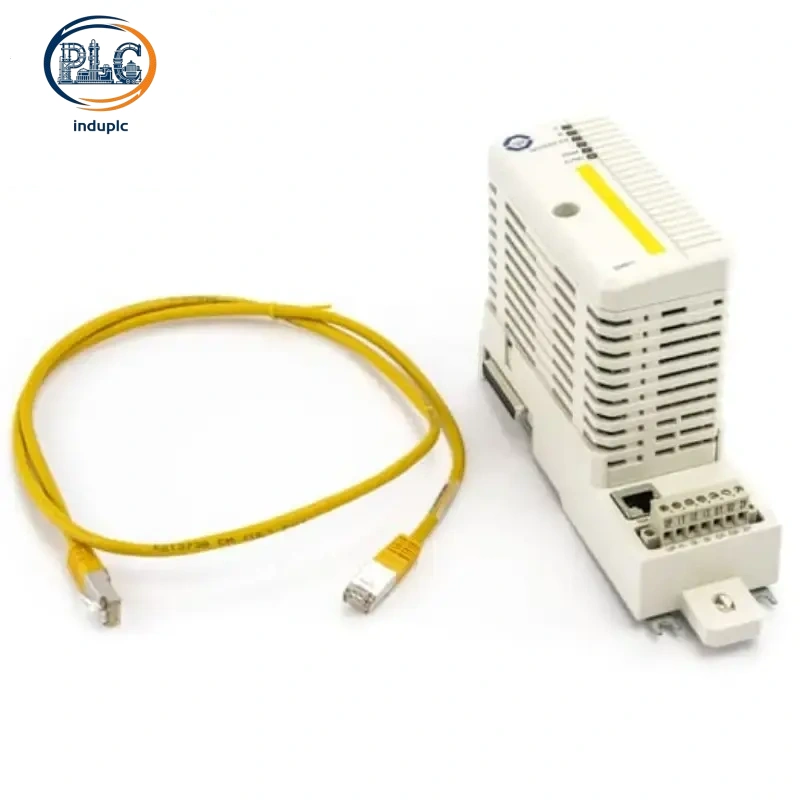

ABB SM811K01 is dedicated safety logic module matching ABB AC800M DCS control platform. Safety automation technicians install multiple ABB SM811K01 on cabinet backplanes to construct interlock protection loops for chemical and energy production lines. ABB SM811K01 inserts standard single-width rack slots and executes fail-safe interlock logic with ABB PM8xx main CPU and S800 safety I/O units without extra signal isolation adapters. Front panel diagnostic indicators support real-time fault diagnosis to maintain reliable safety signal processing of ABB SM811K01 for all ABB safety valves and emergency stop stations.

Cross-brand Compatibility

Exclusive AC800M internal rack bus protocol blocks direct hardware connection of ABB SM811K01 with third-party safety controllers. Separate safety signal transfer terminals and protocol gateways are required to build data links connecting ABB SM811K01 to Siemens or Schneider safety PLC equipment. Universal 24V safety signal specifications allow ABB SM811K01 to receive emergency feedback signals from most aftermarket safety sensors with no internal circuit reconstruction.

3. Lifecycle Cost Analysis

Service cycle of ABB SM811K01 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Safety channel logic verification and internal dust clearance for ABB SM811K01 costs 41 USD per year, total 10-year maintenance expense: 410 USD

Spare part replacement cost: Safety processing chip aging failure of ABB SM811K01 generally occurs once every 7 years, single spare module price: 506 USD, total replacement expense within 10 years: 506 USD

Retrofit expense saving: Original cabinet safety wiring layout fully fits ABB SM811K01 during safety system upgrading projects, saving 322 USD extra construction labor cost compared with incompatible substitute safety logic modules

Total cumulative running cost for single ABB SM811K01 across ten service years: 594 USD
