1. Core Technical Parameters

Supply Voltage：24 VDC ±10%

Bus Protocol：Advant Fieldbus 100

Transmission Rate：1.5 Mbit/s

Galvanic Isolation：2500 VAC

Power Consumption：Max 5 W

Operating Temperature：-20℃ ~ +60℃

Protection Grade：IP20

2. Compatibility & Expandability

Same-brand Compatibility

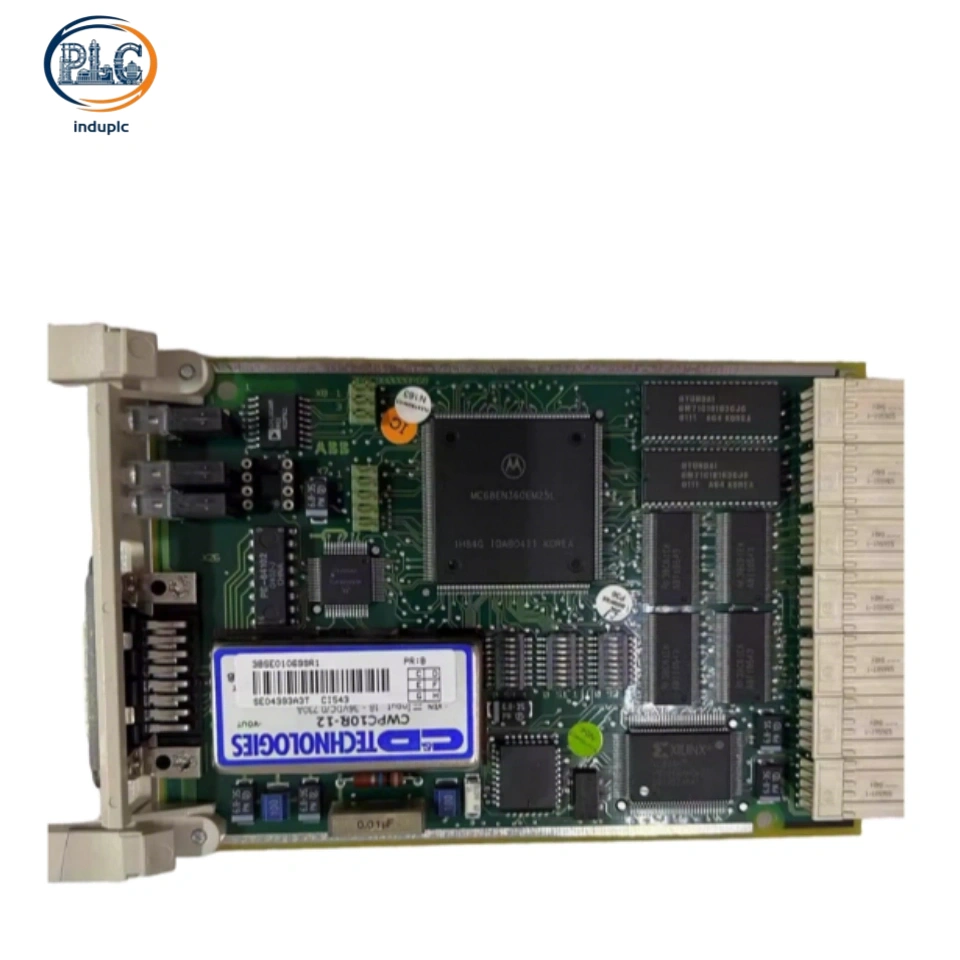

ABB CI543 acts as GCOM bus communication interface dedicated for ABB AC400 Advant control platform. System maintenance technicians install multiple ABB CI543 on cabinet backplanes to extend long-distance fieldbus links for chemical and power process workshops. ABB CI543 inserts standard single rack slots and transmits deterministic field data with ABB AC410, AC450 CPU controllers and distributed S800 I/O modules without extra signal transfer terminal boards. On-board diagnostic indicators help field crews monitor link stability of ABB CI543 and sustain continuous data exchange with original ABB pressure and flow transmitters.

Cross-brand Compatibility

Exclusive AF100 proprietary bus protocol blocks direct hardware interconnection of ABB CI543 with third-party main control hardware. Independent protocol conversion gateways become mandatory to build data channels connecting ABB CI543 to Siemens or Schneider PLC hosts. Universal serial signal forwarding specifications allow ABB CI543 to export field measurement readings to most aftermarket monitoring panels with no internal circuit reconstruction.

3. Lifecycle Cost Analysis

Service cycle of ABB CI543 is fixed at 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost accounting

Annual routine maintenance cost: AF100 bus signal calibration and internal dust clearance for ABB CI543 costs 34 USD per year, total 10-year maintenance expense: 340 USD

Spare part replacement cost: Core bus transceiver chip failure of ABB CI543 generally emerges once every 7 years, single spare module price: 442 USD, total replacement expense within 10 years: 442 USD

Retrofit expense saving: Original cabinet wiring layout fully matches ABB CI543 during DCS cabinet renovation projects, saving 278 USD extra construction labor cost compared with incompatible substitute communication interface modules

Total cumulative running cost for single ABB CI543 across ten service years: 504 USD
