1. Core Technical Parameters

Supply Input：24 VDC

Main CPU Frequency：300 MHz

Built-in RAM：64 MB

Program Flash Memory：128 MB

Supported Fieldbus：PROFIBUS DP, Ethernet IP

Operating Temperature：-20℃ ~ +70℃

Applicable Rack：AC800M standard backplane

2. Compatibility & Expandability

Same-brand Compatibility

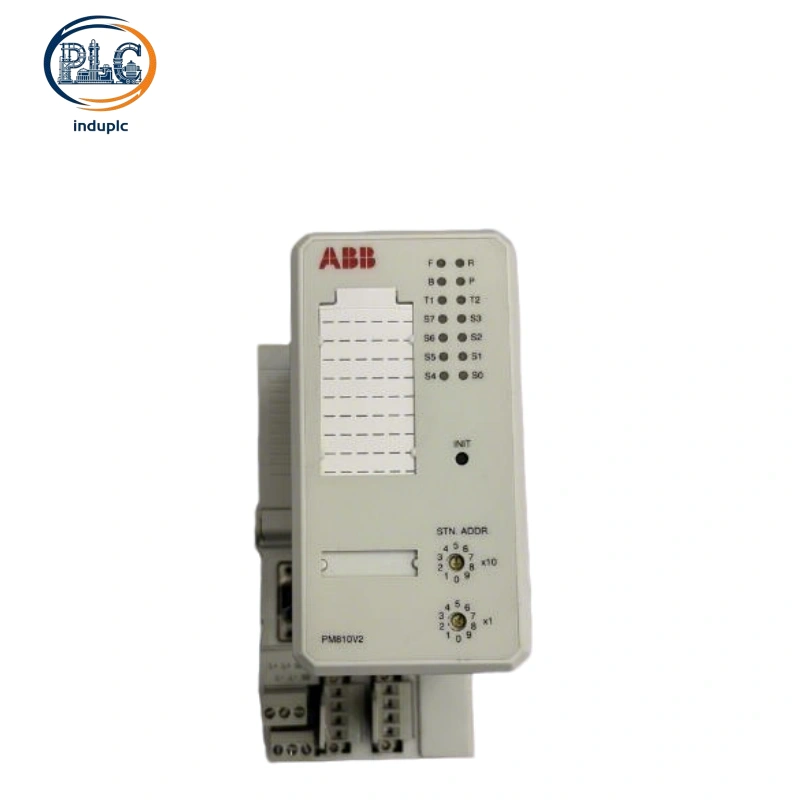

ABB PM810V2 is the base central processing unit for ABB AC800M distributed control platform. Automation maintenance workers install multiple ABB PM810V2 on cabinet backplanes to build redundant control stations for small and medium processing workshops. ABB PM810V2 slides into dedicated rack slots and processes real-time logic data with full series ABB S800 I/O modules without extra signal transfer adapters. Front panel parameter configuration ports support offline programming to keep ABB PM810V2 delivering stable control commands to factory installed ABB valves and transmitters.

Cross-brand Compatibility

Exclusive AC800M internal backplane communication protocol prevents direct hardware interconnection of ABB PM810V2 with third-party PLC controllers. Separate protocol conversion gateways are necessary to create data transmission links connecting ABB PM810V2 to Siemens and Schneider automation hardware. General industrial Ethernet and PROFIBUS specifications allow ABB PM810V2 to collect feedback signals from most aftermarket field sensors without internal circuit refitting.

3. Lifecycle Cost Analysis

Service cycle of ABB PM810V2 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation expenses are excluded from all cost statistics

Annual routine maintenance cost: Logic program backup inspection and internal dust removal for ABB PM810V2 costs 38 USD per year, total 10-year maintenance expense: 380 USD

Spare part replacement cost: Main processing core failure of ABB PM810V2 generally occurs once every 7 years, single spare module price: 476 USD, total replacement expense within 10 years: 476 USD

Retrofit expense saving: Original cabinet wiring layout fully matches ABB PM810V2 during control system upgrading, saving 298 USD extra construction labor cost compared with unmatched alternative CPU units

Total cumulative running cost for single ABB PM810V2 across ten service years: 558 USD
