1. Core Technical Parameters

Supply Voltage：24 VDC

Communication Protocol：PROFIBUS DP-V0/DP-V1

Max Transfer Baudrate：12 Mbps

Max Supported Slave Nodes：120 units

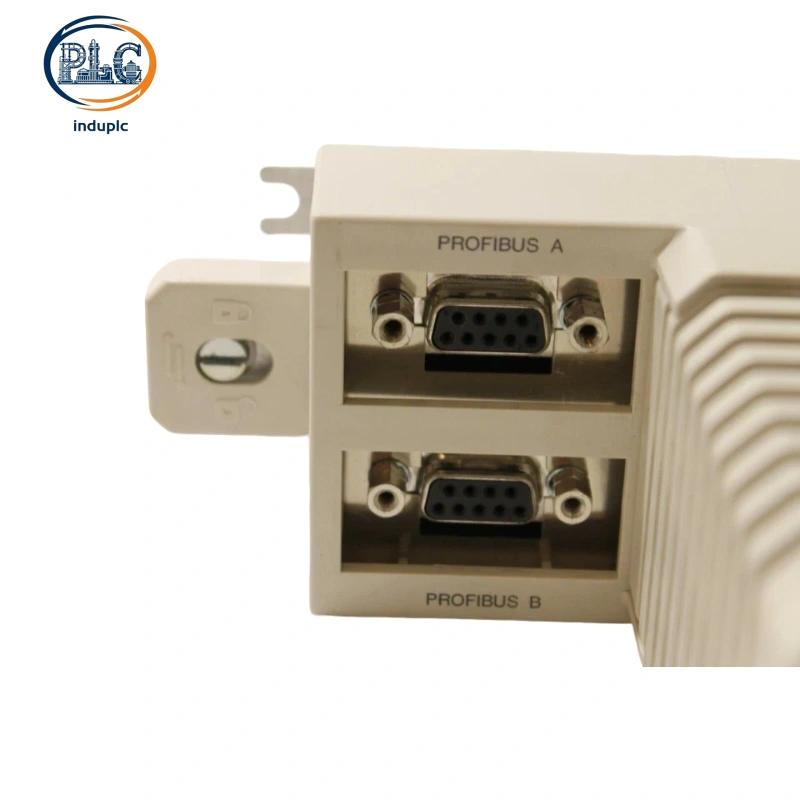

Interface Standard：Dual RS-485 DB9 ports

Operating Temperature：-25℃ ~ +60℃

Rack Compatibility：ABB AC800M CEX-bus backplane

2. Compatibility & Expandability

Same-brand Compatibility

ABB CI854K01 acts as standard PROFIBUS master communication kit matched for ABB AC800M DCS control platform. Process automation technicians install multiple ABB CI854K01 with TP854 baseplates on cabinet backplanes to build redundant fieldbus loops for energy and chemical production lines. ABB CI854K01 locks into dedicated rack slots and transmits cyclic process data with ABB PM8xx series CPU and full S800 I/O series without auxiliary signal transfer adapters. Built-in bus termination circuits maintain stable bidirectional data exchange between ABB CI854K01 and factory-deployed ABB inverters and process transmitters.

Cross-brand Compatibility

Exclusive AC800M internal CEX-bus protocol blocks direct hardware interconnection of ABB CI854K01 with third-party main controllers. Independent protocol conversion gateways become mandatory to build data links connecting ABB CI854K01 to Siemens or Schneider PLC hosts. Globally unified PROFIBUS DP industrial specifications allow ABB CI854K01 to collect measurement feedback signals from most aftermarket field sensors with no internal circuit refitting.

3. Lifecycle Cost Analysis

Service cycle of ABB CI854K01 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: PROFIBUS port signal calibration and internal dust clearance for ABB CI854K01 costs 36 USD per year, total 10-year maintenance expense: 360 USD

Spare part replacement cost: Core bus transceiver chip breakdown of ABB CI854K01 generally occurs once every 7 years, single spare module price: 462 USD, total replacement expense within 10 years: 462 USD

Retrofit expense saving: Original cabinet wiring layout fully matches ABB CI854K01 during control system modernization projects, saving 292 USD extra construction labor cost compared with incompatible substitute PROFIBUS master modules

Total cumulative running cost for single ABB CI854K01 across ten service years: 534 USD
