1. Core Technical Parameters

Backplane Power：24 VDC

Communication Port：Dual independent PROFIBUS-DP channels

Max Baud Rate：12 Mbps

Physical Connector：Dual 9-pin D-SUB

Galvanic Isolation：2500 VAC

Operating Temperature：+5℃ ~ +55℃

Rack Compatibility：ABB AC800M CEX-Bus backplane

2. Compatibility & Expandability

Same-brand Compatibility

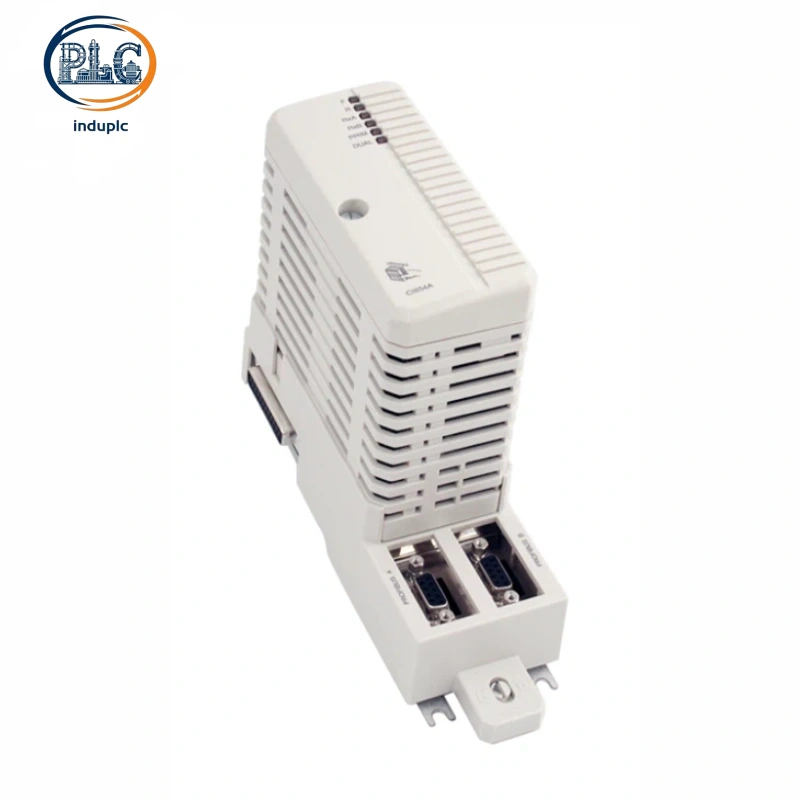

ABB CI854A is dual-channel PROFIBUS master interface hardware matching ABB AC800M DCS control racks. Process automation engineers install multiple ABB CI854A on cabinet backplanes to build redundant fieldbus loops for power and chemical continuous production lines. ABB CI854A inserts standard double-width rack slots and transmits cyclic process data with ABB PM8xx CPU units and all S800 series I/O modules without extra signal transfer adapters. Built-in hot-swap hardware design allows maintenance staff to replace faulty ABB CI854A online and sustain steady bus communication with factory-deployed ABB inverters and measuring transmitters.

Cross-brand Compatibility

Exclusive CEX-Bus internal rack protocol blocks direct hardware docking of ABB CI854A with third-party main controllers. Independent protocol translation gateways become mandatory to construct data links connecting ABB CI854A to Siemens or Schneider PLC hosts. Global standardized PROFIBUS DP-V1 specifications enable ABB CI854A to collect feedback signals from most aftermarket field sensors with no internal circuit reconstruction.

3. Lifecycle Cost Analysis

Service cycle of ABB CI854A covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Dual bus channel signal calibration and internal dust clearance for ABB CI854A costs 38 USD per year, total 10-year maintenance expense: 380 USD

Spare part replacement cost: Dual-channel communication transceiver chip failure of ABB CI854A generally occurs once every 7 years, single spare module price: 472 USD, total replacement expense within 10 years: 472 USD

Retrofit expense saving: Original cabinet bus wiring layout fully fits ABB CI854A during DCS system modernization, saving 304 USD extra construction labor cost compared with incompatible single-channel PROFIBUS interface modules

Total cumulative running cost for single ABB CI854A across ten service years: 548 USD
