1. Core Technical Parameters

Backplane Input Power：5 VDC

Signal Input Format：4–20mA analog signal

Channel Count：16 isolated input channels

Single Channel Load Resistance：250 Ω

Group Isolation Voltage：1500 VDC

Working Temperature：0℃ ~ +70℃

Applicable Control Platform：ABB Symphony INFI90 rack system

2. Compatibility & Expandability

Same-brand Compatibility

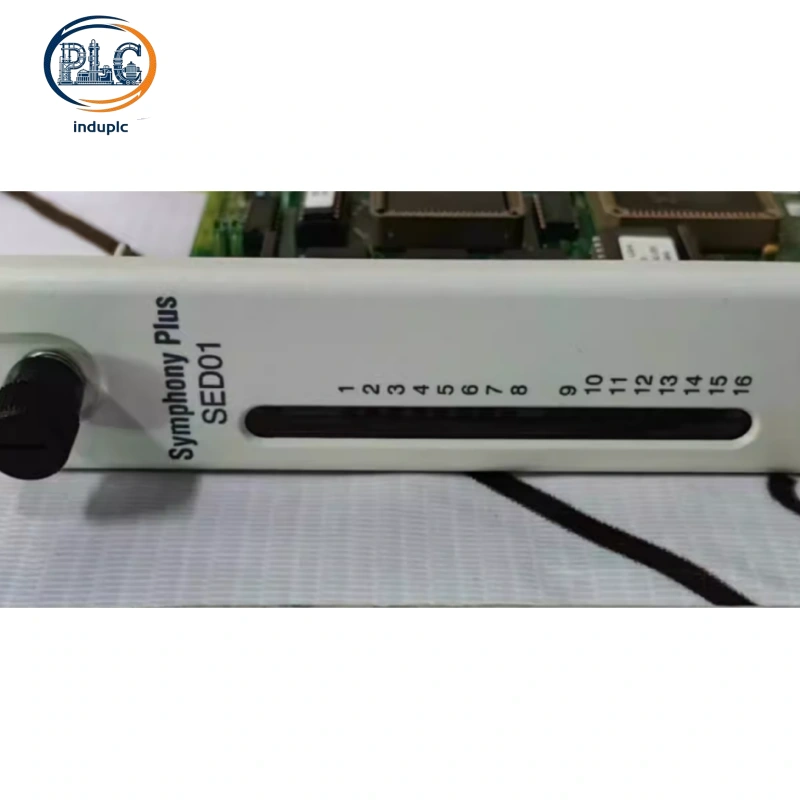

ABB SPSED01 is a multi-channel analog input board dedicated to ABB Symphony DCS chassis. On-site instrument installers arrange multiple ABB SPSED01 on cabinet backplanes to expand mass analog signal collection capacity for chemical and energy process sites. ABB SPSED01 inserts standard single rack slots and transmits converted digital measurement data to ABB INNPM12 network processor modules without extra signal conditioning terminal blocks. Front-mounted diagnostic LED arrays let maintenance crews monitor signal running status of ABB SPSED01 and sustain stable data collection from original ABB pressure and flow transmitters.

Cross-brand Compatibility

Unique internal Controlway bus and customized backplane pin arrangement prevent direct hardware matching of ABB SPSED01 with third-party control racks. External signal transfer terminal strips are necessary to build signal channels linking ABB SPSED01 to Siemens or Schneider PLC hosts. Universal 4–20mA analog industry standard supports ABB SPSED01 to capture feedback data from most aftermarket field sensors with no internal circuit reconstruction.

3. Lifecycle Cost Analysis

Service cycle of ABB SPSED01 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation costs are excluded from all cost statistics

Annual routine maintenance cost: Channel linearity calibration and internal dust removal for ABB SPSED01 costs 32 USD per year, total 10-year maintenance expense: 320 USD

Spare part replacement cost: Analog signal conversion circuit failure of ABB SPSED01 generally takes place once every 8 years, single spare module price: 426 USD, total replacement expense within 10 years: 426 USD

Retrofit expense saving: Existing field signal wiring harness fully fits ABB SPSED01 during DCS cabinet overhaul, saving 260 USD extra wiring construction cost compared with incompatible substitute analog input modules

Total cumulative running cost for single ABB SPSED01 across ten service years: 486 USD
