Core Technical Specifications

Processor Core：Intel 80188 Clock Speed：10 MHz On-board Memory：128 KB RAM, 128 KB Flash Maximum I/O Capacity：256 digital & analog I/O points Programming Standard：IEC 61131-3 compliant Power Supply Input：24 VDC Operating Temperature Range：0 °C to +60 °C Built-in Communication Ports：RS232, RS485

Regional Deployment & Field Applications

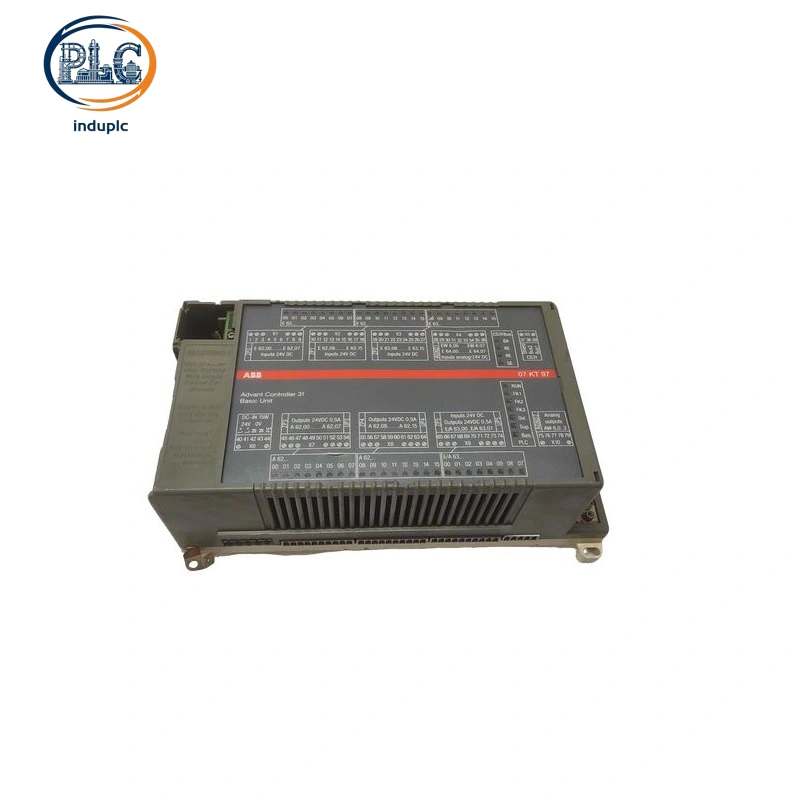

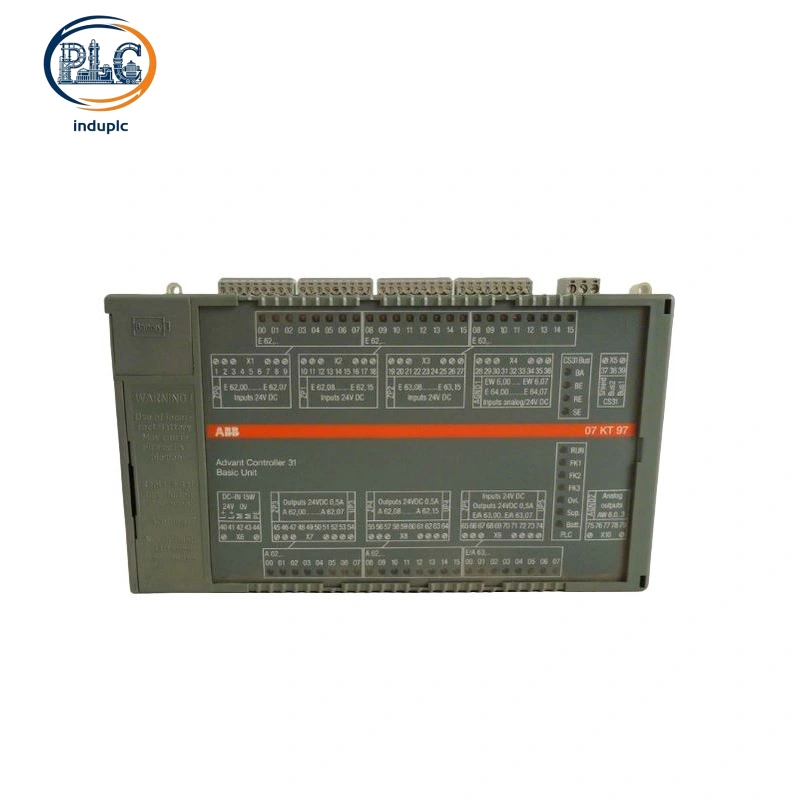

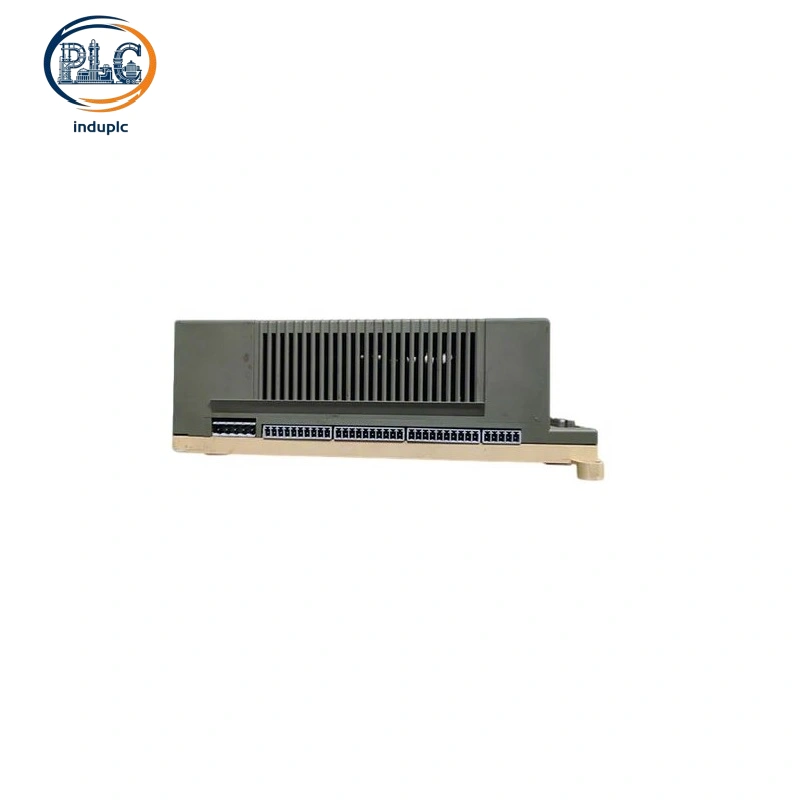

ABB 07KT97 serves as a core logic control unit for small-to-medium industrial automation projects, with wide installation across Europe, the Middle East, and Southeast Asia. In GCC regional oil and gas auxiliary facilities, ABB 07KT97 executes valve sequence control and pressure interlock logic for on-site pumping stations. Central European food and beverage production lines mount ABB 07KT97 in equipment cabinets to manage conveyor scheduling and packaging line fault monitoring, matching local industrial safety certifications. Southeast Asian textile manufacturing facilities integrate ABB 07KT97 into dyeing machine control systems to sustain stable cyclic operation under high-temperature, high-humidity workshop conditions.

Compatibility & Expansion Capability

Same-brand Ecosystem Matching

ABB 07KT97 fits directly into Advant AC31 series PLC subracks, working natively with 07DI digital input and 07DO digital output modules without hardware adapters. The built-in RS485 port connects to ABB S200 remote I/O stations directly, extending field signal coverage for large-scale production workshops. ABB Automation Builder programming software provides full configuration, parameter calibration and online diagnostic functions for ABB 07KT97, cutting on-site commissioning workload.

Cross-brand Device Interoperability

Standard Modbus RTU protocol over serial ports supports data exchange with mainstream third-party HMIs from Siemens and Weintek. Universal 4-20mA field transmitters connect to the control system via matched expansion modules. No additional signal conversion equipment is needed.
