Technical Specifications

Supply Voltage：24 VDC

Independent Drive Channels：6 channels

Galvanic Isolation Rating：4000 VAC

Peak Pulse Output Current：2 A

Signal Response Time：≤1 μs

Operating Ambient Temperature：-10℃ ~ +65℃

Compatible Platform：ABB medium voltage drive systems

Mounting Type：Internal rack PCB slot fixation

Regional Applications & Industrial Use Cases

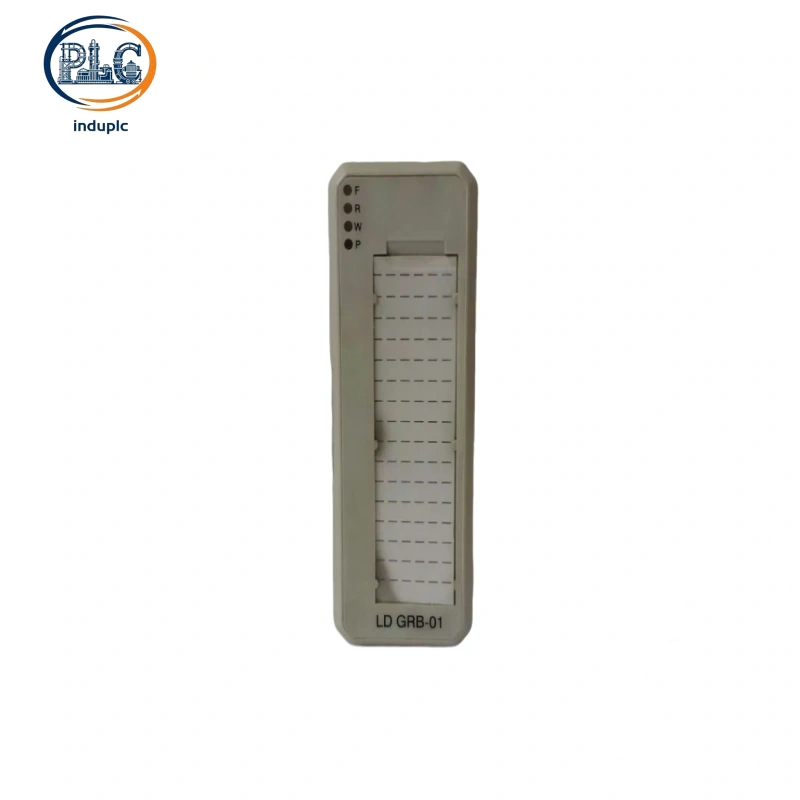

ABB LDGRB-01 serves as core gate drive component for medium voltage variable speed drive systems across global industrial projects.

Primary deployment regions cover Middle East oil & gas compression stations, European thermal power generation plants, Southeast Asia cement production lines, and North American mineral processing sites.

ABB LDGRB-01 supports stable drive operation for high-voltage motor loads in municipal water treatment pumping stations and metallurgical rolling mill production lines.

Heavy industrial scenarios with harsh ambient dust and wide temperature fluctuation retain long-term reliable performance of ABB LDGRB-01 without frequent on-site calibration.

10-Year Operational Cost Breakdown

Calculation applies 10-year service cycle for ABB LDGRB-01, exchange rate set as 1USD=7.2CNY. All figures exclude initial product purchase and on-site installation fees.

Routine maintenance cost: Annual channel output calibration and PCB dust cleaning for ABB LDGRB-01 costs 32 USD per year, 10-year cumulative maintenance expense reaches 320 USD.

Spare part replacement cost: Drive optocoupler aging failure of ABB LDGRB-01 occurs once per 7.5 years on average, single spare board price stands at 422 USD, total replacement cost within 10 years totals 422 USD.

Retrofit cost saving: Original drive internal wiring harness matches terminal layout perfectly during system upgrade projects, saving 264 USD additional rewiring labor cost compared with non-compatible substitute gate driver boards.

Total cumulative net operating cost across 10-year service span: 478 USD
