Technical Specifications

Processor Core：32-bit RISC ARM9 User Program Memory：8 MB Integrated Data Memory：16 MB Maximum I/O Channel Capacity：1024 Redundancy Support：Hot standby full redundancy On-board Ethernet Ports：2 × 10/100 Mbps Serial Communication Ports：2 × RS232/RS485 Operating Temperature Range：-20℃ ~ +70℃

Regional Deployment & Field Applications

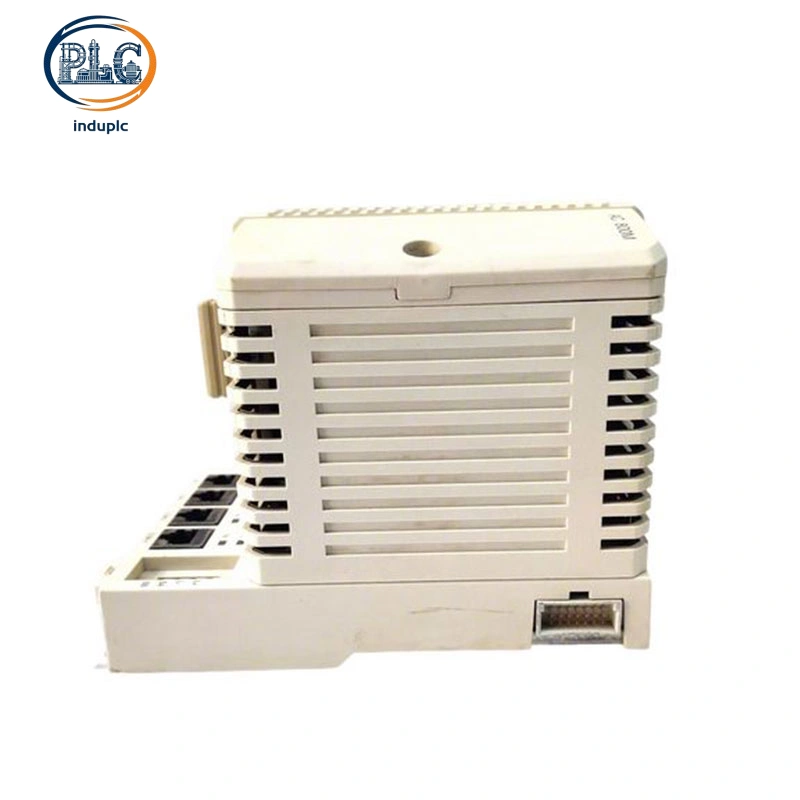

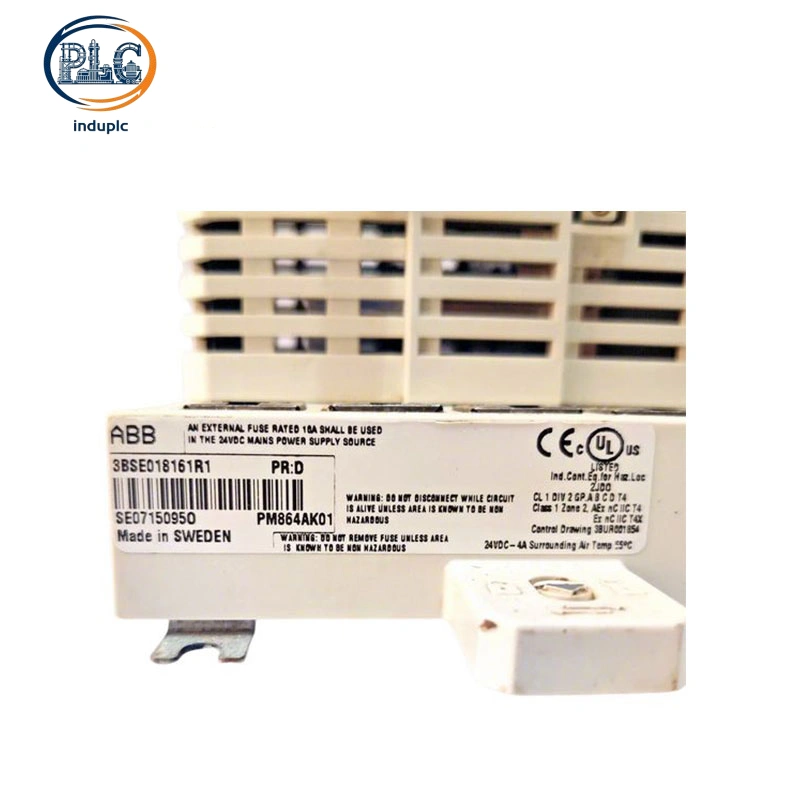

ABB PM864AK01 operates as a core control component across global industrial sectors with mature regional project cases.

In Middle East oil and gas upstream projects, ABB PM864AK01 executes wellhead emergency shutdown logic and pipeline pressure monitoring. The unit adapts to high-temperature and high-dust on-site environments.

In European fine chemical production bases, ABB PM864AK01 runs batch reaction control sequences and meets EU industrial safety data traceability standards.

In Southeast Asian thermal power generation facilities, the processor unit coordinates boiler auxiliary equipment interlock and generator set load regulation. The unit supports 24/7 uninterrupted operation.

Compatibility & System Expandability

Same-brand Ecosystem Integration

ABB PM864AK01 natively fits the ABB AC800M control platform and S800 distributed I/O series. The unit connects directly to ABB CI8xx communication modules via standard ModuleBus. No extra signal conversion accessories are required for 800xA DCS supervisory system docking. Single rack supports multi-unit expansion for large-scale control systems.

Cross-brand Device Interoperability

Built-in Modbus TCP/IP protocol enables signal docking with mainstream third-party HMI and SCADA devices. Serial ports support Modbus RTU communication with non-ABB field transmitters and limit switches. Direct insertion into non-ABB PLC backplanes is not supported. ABB PM864AK01 requires external protocol gateways for cross-platform data exchange
