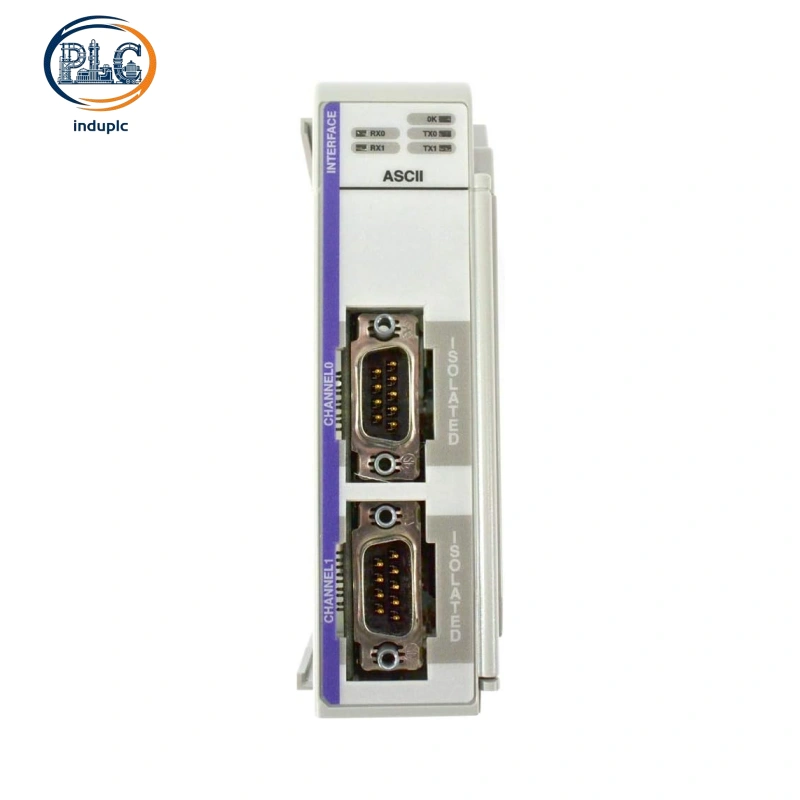

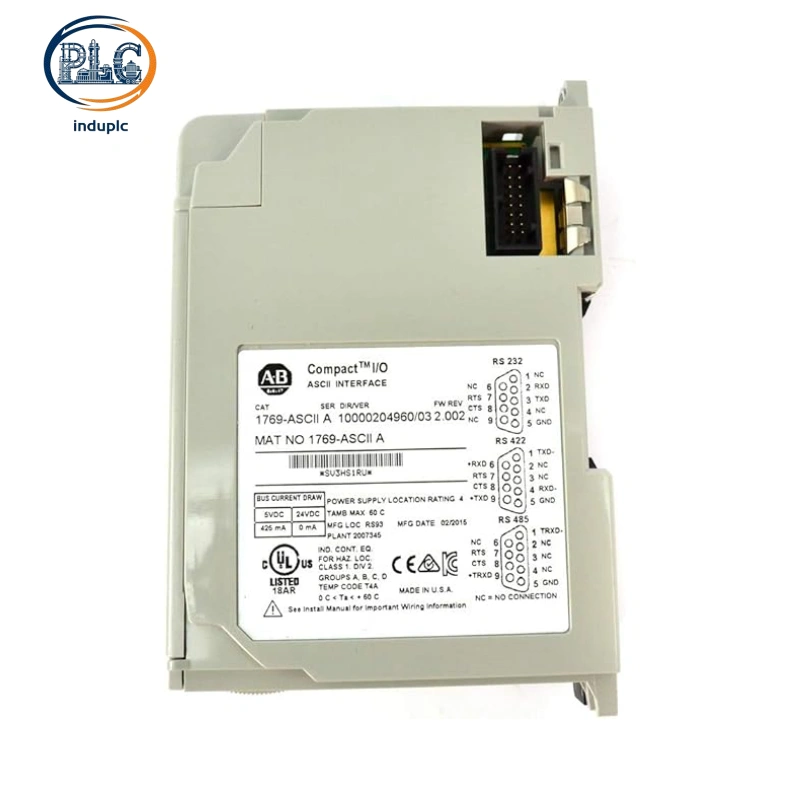

Allen-Bradley 1769-ASCII is a dual-channel isolated serial communication module designed for 1769 Compact I/O systems. It supports multi-protocol ASCII serial transmission, enabling seamless data exchange between CompactLogix controllers and third-party serial devices in discrete manufacturing and factory automation environments.

Core Technical Parameter Specifications

Serial Channel Quantity：2 fully isolated independent channels

Supported Serial Protocols：RS-232, RS-422, RS-485 multi-mode adaptive

Baud Rate Range：1200 up to 115.2 kbps adjustable transmission speed

Maximum Data Buffer Capacity：200 bytes combined transmit/receive data limit

Channel Isolation Rating：Full electrical isolation between channels and backplane

Ambient Operating Temperature：0℃ ~ +60℃ continuous industrial operation

Installation Form：DIN rail and panel dual mounting structure

Industrial Certifications：UL, CSA, CE, RoHS compliance certified

Serial Protocol Adaptability & On-Site Deployment Advantages

AllenBradley 1769ASCII serves as a universal serial gateway for Rockwell CompactLogix automation platforms. Unlike standard network I/O modules, this unit focuses on legacy serial device docking, resolving communication compatibility issues between modern EtherNet/IP control systems and traditional serial instrumentation. Each channel supports independent protocol configuration, allowing users to match different baud rates, parity checks and data bit settings for diversified field devices.

AllenBradley 1769ASCII adopts isolated circuit design to eliminate crosstalk interference between serial signals and backplane bus data. The module supports flexible half-duplex and full-duplex working modes, adapting to barcode readers, serial printers, weighing instruments and custom serial industrial equipment. Unified configuration via Studio 5000 simplifies program debugging and serial data logic setup for field engineers.

Legacy System Upgrading & Multi-Vendor Device Interoperability

Most aging factory production lines retain large quantities of RS-series serial devices that lack EtherNet/IP network interfaces. AllenBradley 1769ASCII provides efficient retrofit solutions for these legacy systems, enabling old serial equipment to access modern Logix control platforms without full hardware replacement. It perfectly matches existing 1769 Compact I/O racks, requiring no additional chassis modification during system upgrades.

In hybrid-brand automation scenarios, AllenBradley 1769ASCII features open ASCII protocol compatibility and stable serial signal parsing capability. It can stably connect with third-party sensors, monitoring instruments and auxiliary control equipment, realizing bidirectional data transmission. This flexible interoperability effectively improves the scalability and compatibility of mixed industrial control systems.

Global Industrial Scenarios & Practical Deployment

AllenBradley 1769ASCII is widely deployed in light discrete manufacturing, packaging automation, logistics sorting and factory intelligent monitoring projects worldwide. Its strong serial compatibility and anti-interference performance make it ideal for connecting non-network industrial devices in cabinet-limited workshop environments.

North American packaging factories use AllenBradley 1769ASCII to connect barcode scanners and serial label printers for real-time production data collection. Latin American food processing plants deploy the module to link weighing sensors and batch monitoring instruments to achieve accurate batch data statistics. European mechanical automation projects rely on AllenBradley 1769ASCII to realize stable serial communication between custom machinery and CompactLogix controllers, ensuring consistent equipment operation data synchronization.
