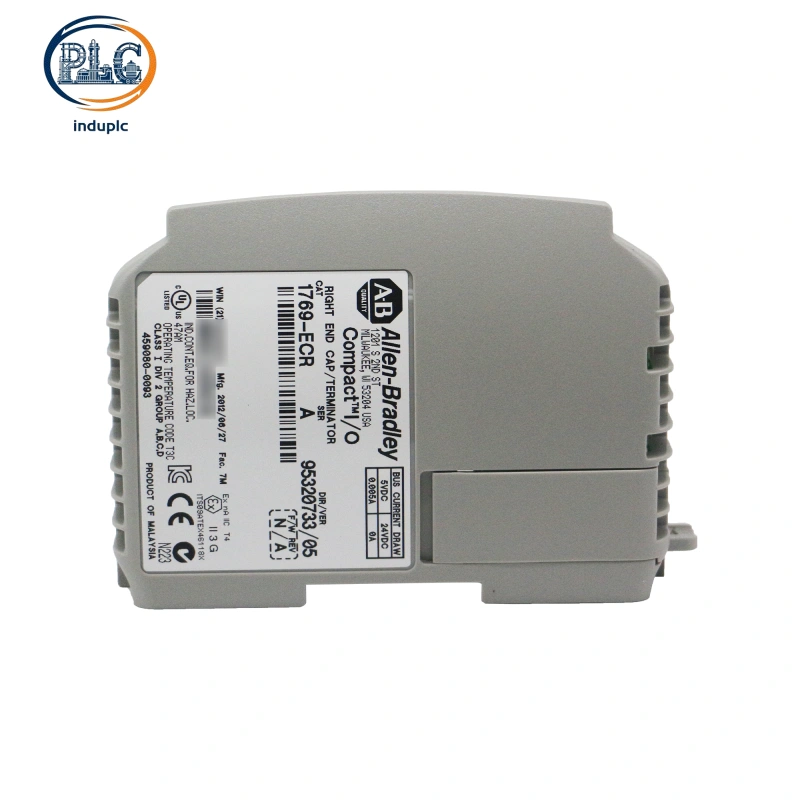

Allen-Bradley 1769-ECR is a dedicated right-side end cap and bus terminator designed for Rockwell 1769 Compact I/O chassis assemblies. It completes the Compact I/O backplane bus circuit, eliminates signal reflection, and ensures stable data communication for stacked I/O module arrangements in discrete automation systems.

Core Technical Parameter Specifications

Product Function：Right end cap + bus terminator for 1769 I/O chassis

Applicable System：1769 CompactLogix Compact I/O series assemblies

Operating Temperature Range：0℃ ~ +60℃ standard industrial grade

Storage Temperature Range：-40℃ ~ +85℃ environmental tolerance

Protection Grade：IP20 finger-safe industrial enclosure rating

Installation Method：Direct snap-on mounting for 1769 chassis tail end

Industry Certifications：UL, CSA, CE global industrial compliance

Structural Feature：No power consumption, passive bus termination design

Backplane Stabilization & Chassis Assembly Performance

AllenBradley 1769-ECR acts as a mandatory terminal accessory for all expanded 1769 Compact I/O racks. Unfinished chassis backplane circuits often cause signal reflection, data jitter and intermittent I/O dropout issues. This end cap delivers precise passive termination to standardize backplane impedance, stabilizing high-speed bus signal transmission between stacked I/O modules and controllers.

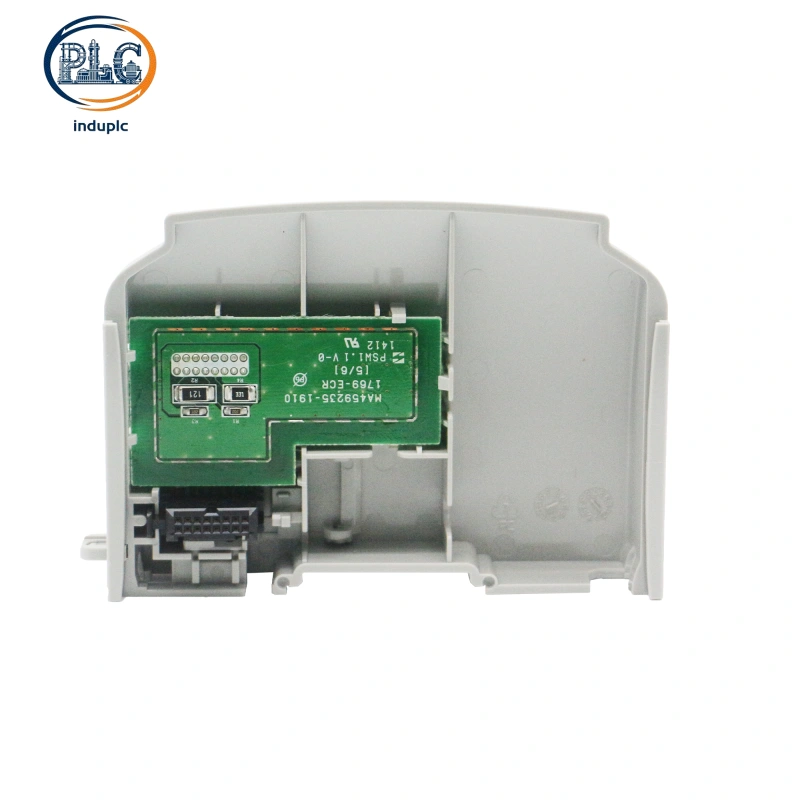

AllenBradley 1769-ECR features a tool-free snap-on structure that simplifies on-site cabinet assembly and maintenance. The compact size fits narrow industrial cabinet layouts without occupying extra wiring space. As a passive component, the unit requires no power supply, firmware configuration or software debugging, lowering long-term system failure points and daily maintenance workload for automated production lines.

System Matching & Cross-Generation Compatibility Features

AllenBradley 1769-ECR maintains full compatibility with all generations of 1769-series I/O modules and CompactLogix controllers, including L2x, L3x and newer 5370 series hardware. It serves as a universal termination accessory for new system integration and legacy equipment renovation, supporting seamless chassis expansion and module replacement.

In multi-brand retrofit scenarios, standardized 1769 chassis architecture ensures AllenBradley 1769-ECR will not interfere with third-party gateway modules, sensors and peripheral devices. Consistent physical dimensions and termination specifications enable unified chassis finishing standards for hybrid control systems, avoiding bus signal anomalies caused by mismatched end accessories during factory upgrades.

Industrial Application & On-Site Practical Value

AllenBradley 1769-ECR is a standard supporting component widely used in packaging machinery, material handling systems, small assembly lines and industrial intelligent monitoring cabinets. It solves common hidden risks of unterminated backplanes, effectively improving the overall stability and data consistency of CompactLogix I/O systems.

North American mechanical OEMs adopt AllenBradley 1769-ECR for standardized chassis finishing of automated machine I/O racks to reduce after-sales signal fault rates. Latin American light industry factories deploy the accessory during old system expansions to optimize backplane signal quality. European precision packaging and testing equipment projects rely on AllenBradley 1769-ECR to guarantee long-term stable operation of high-density stacked I/O groups.
