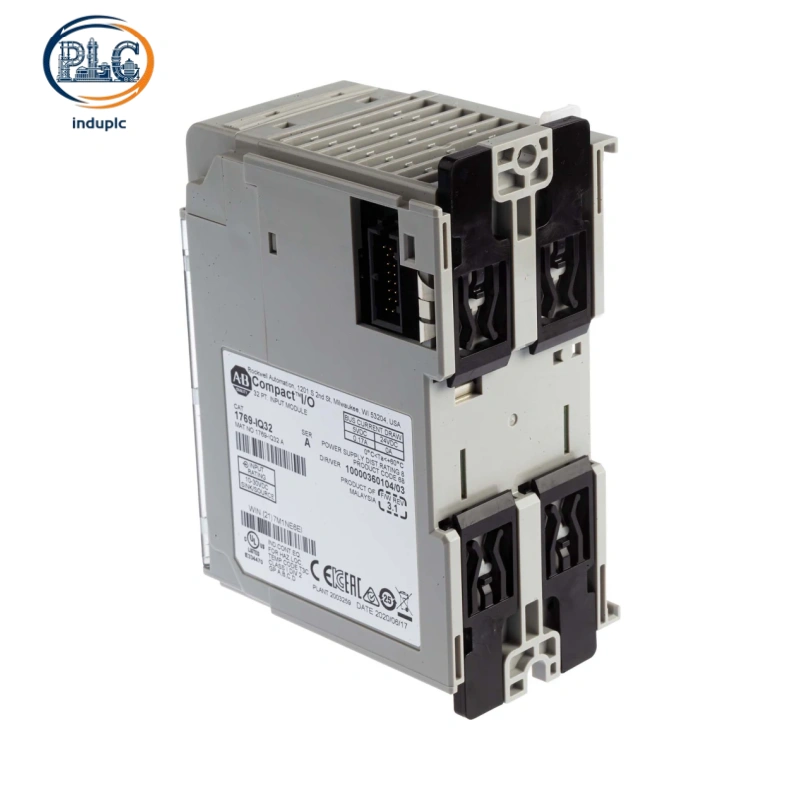

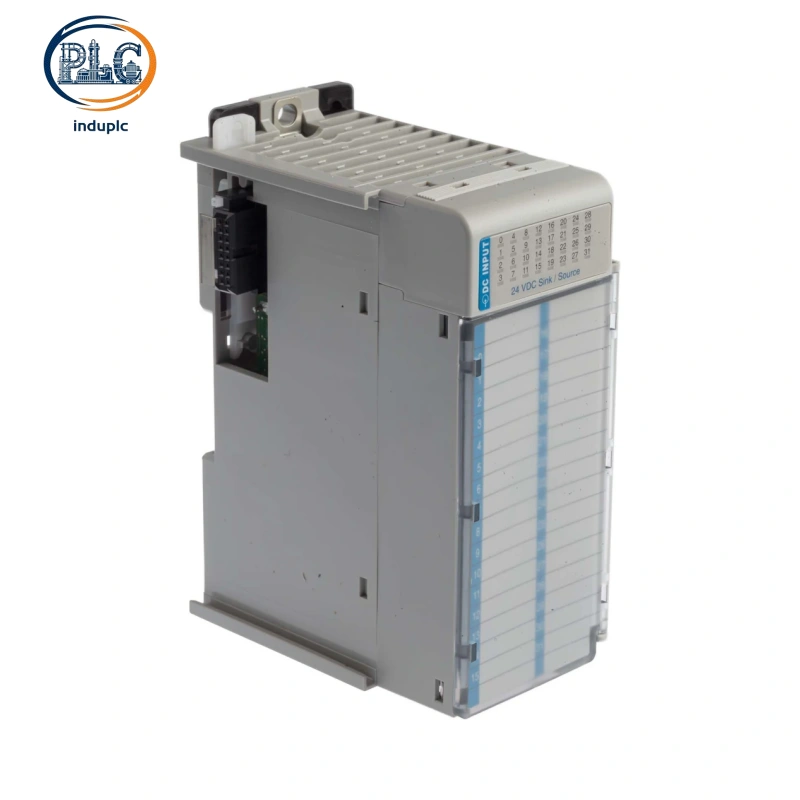

Allen-Bradley 1769-IQ32 is a high-density 32-channel 24VDC digital input module designed for Rockwell 1769 CompactLogix systems. Supporting universal sink/source signal compatibility, it delivers large-scale discrete signal acquisition, optimizing cabinet space and improving signal monitoring efficiency for modern compact automation systems.

Core Technical Parameter Specifications

Channel Layout：32 high-density DC input points with grouped isolation design

Input Voltage Range：10–30VDC wide adaptive industrial voltage

Signal Mode：Dual sink/source universal wiring compatibility

Dielectric Isolation：1200VAC (1s) / 1697VDC reinforced insulation rating

Backplane Power Draw：Low power consumption for multi-module stacking

Operating Temperature：0℃ ~ +60℃ continuous industrial operation

Mounting Method：Standard DIN rail and panel dual installation

Industry Certifications：UL, CSA, CE global industrial compliance

Ultra-High Density Design & Flexible Wiring Performance

AllenBradley 1769-IQ32 features industry-leading 32-point single-slot high-density design, far exceeding the signal capacity of conventional 16-channel I/O modules. It drastically reduces chassis slot occupation, solving the problem of insufficient cabinet space for multi-point sensor monitoring in compact automated equipment.

The universal sink/source wiring function of AllenBradley 1769-IQ32 eliminates pre-wiring mode confirmation, adapting to all mainstream 24VDC proximity sensors, photoelectric switches and mechanical limit switches. Built-in signal filtering suppresses electromagnetic interference from on-site motors and inverters, ensuring stable and accurate signal recognition. Full configuration and real-time status monitoring are supported via Studio 5000, simplifying field debugging and daily maintenance.

System Stacking Expansion & Retrofit Compatibility

AllenBradley 1769-IQ32 is fully compatible with all standard 1769 Compact I/O chassis and CompactLogix L2x/L3x series controllers. It supports flexible stacking expansion with other digital and analog modules, meeting the high-capacity I/O expansion demands of medium and large automated production lines.

For legacy factory upgrade projects, AllenBradley 1769-IQ32 serves as an efficient replacement for low-density DC input modules. It retains consistent bus communication protocols and installation dimensions, requiring no cabinet or program structural modifications. Matched with EtherNet/IP adapters, it stably transmits massive discrete signals to upper-layer heterogeneous control systems, improving the scalability of hybrid automation architectures.

Industrial Application Scenarios

AllenBradley 1769-IQ32 is widely applied in high-volume signal monitoring scenarios of global discrete manufacturing. It is the preferred module for automated assembly lines, packaging machinery, logistics sorting systems and intelligent material handling equipment with dense sensor distribution.
