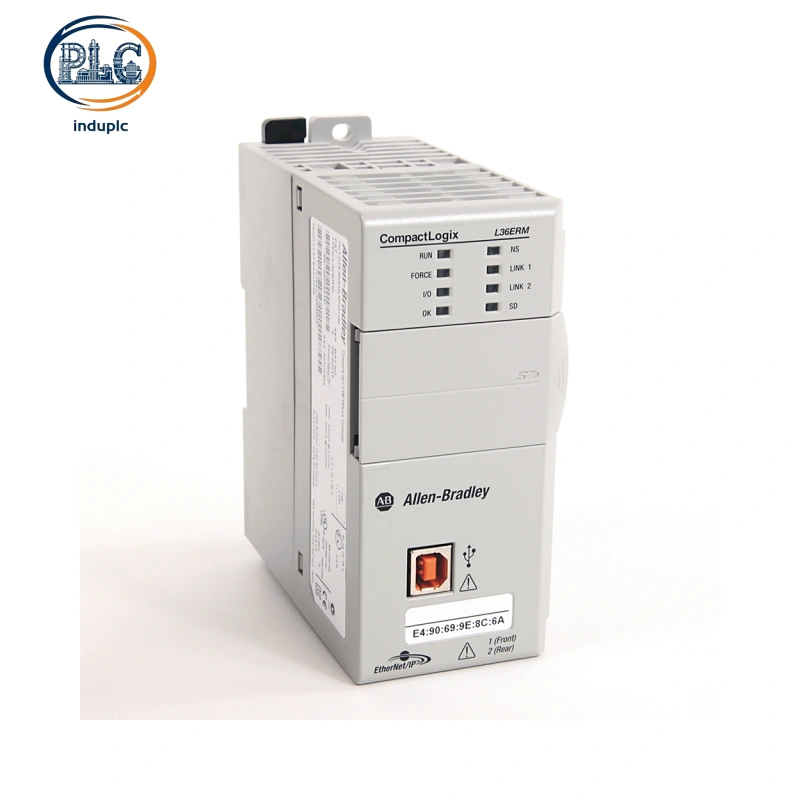

Allen-Bradley 1769-L36ERM is a high-end CompactLogix 5370 motion controller equipped with 3MB user memory and dual DLR EtherNet/IP ports. Supporting 16-axis CIP synchronous motion control, built-in kinematics algorithm and 48 EtherNet/IP network nodes, it handles complex multi-axis linkage and high-precision trajectory control for advanced automated machinery and medium-to-large discrete production lines.

Core Technical Parameter Specifications

Controller Series：CompactLogix 5370 L3 High-End Motion CPU

User Memory：3MB program and data storage capacity

Motion Control：Up to 16-axis CIP motion + integrated kinematics function

Network Interface：Dual 10/100Mbps EtherNet/IP ports with DLR ring topology

Max Network Nodes：Supports 48 EtherNet/IP slave device connections

Local I/O Expansion：Max 30pcs 1769 Compact I/O modules / 3 I/O banks

Onboard Storage：1GB standard SD card, expandable up to 2GB

Programming Port：Front USB Type-B fast download & debugging port

Task Processing：Multi-task scheduling for complex program logic

Operating Temperature：0℃ ~ +60℃ continuous industrial operation

Certifications：UL, CSA, CE, Class I Div 2 hazardous location compliance

16-Axis Motion & Kinematics High-Precision Control

As an upgraded high-performance motion model, 1769-L36ERM surpasses conventional L30ERMK and L33ER series controllers in motion capability. It supports 16-axis synchronous CIP motion control and native kinematics calculation, realizing complex functions such as electronic cam, gear synchronization and multi-axis trajectory positioning without additional motion modules.

Dual-port DLR redundant Ethernet design eliminates single-point network failures, ensuring stable real-time data transmission during high-speed motion operation. Unified Studio 5000 programming integrates logic control, motion programming and network configuration, shortening project development cycles. Intuitive front-panel LED status indicators simplify real-time monitoring and rapid fault troubleshooting for motion systems.

Large-Capacity Expansion & Multi-Scenario Retrofit Compatibility

AllenBradley 1769-L36ERM features industry-leading 3MB memory, 30 local I/O modules and 48 network nodes, supporting large-scale I/O expansion and multi-device linkage control. It is fully compatible with all 1769 series digital, analog, temperature and communication modules, meeting the complex control demands of medium and large automated systems.

It serves as an optimal upgrade solution for low-axis and low-memory legacy controllers. Consistent chassis size and backplane protocol enable plug-and-play replacement without cabinet modification or wiring changes. Native EtherNet/IP protocol supports seamless interconnection with third-party servos, HMIs and sensors, adapting to high-standard hybrid-brand automation upgrades and intelligent equipment renovation projects.

Industrial Application Scenarios

AllenBradley 1769-L36ERM is widely deployed in high-precision and multi-axis automation scenarios, including high-speed packaging equipment, multi-station assembly machinery, intelligent sorting systems, robotic auxiliary positioning and precision processing automation lines.

North American high-end machinery OEMs adopt the controller for standardized multi-axis precision equipment design. Latin American manufacturing enterprises deploy 1769-L36ERM to upgrade fixed production lines to flexible intelligent motion production lines. European advanced automation projects rely on its kinematics and high-node networking capability to build efficient, stable and expandable intelligent control systems.
