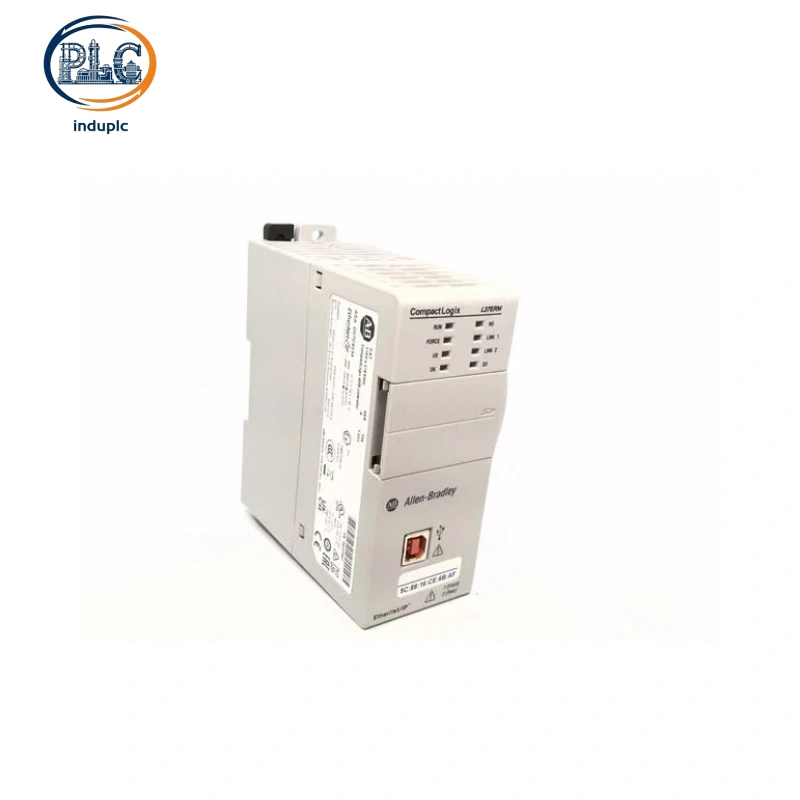

Allen-Bradley 1769-L37ERMK is a top-tier CompactLogix 5370 high-speed motion PLC controller with industry-upgraded 4MB user memory and dual DLR EtherNet/IP ports. Featuring ultra-fast 0.22ms motion loop, 16-axis CIP synchronous motion, built-in kinematics and 64 EtherNet/IP nodes, it delivers premium high-precision motion performance for high-speed packaging, robotic auxiliary control and large-scale discrete automation systems.

Core Technical Parameter Specifications

Controller Series：CompactLogix 5370 L3 Top-Level Motion CPU

User Memory：4MB program and data storage (highest in standard L3 series)

Motion Performance：16-axis CIP motion + integrated kinematics algorithm

Motion Loop Cycle：0.22ms ultra-fast real-time task processing

Network Interface：Dual 10/100Mbps EtherNet/IP ports with DLR ring redundancy

Max Network Nodes：64 EtherNet/IP slave device connections

Local I/O Expansion：Up to 30pcs 1769 Compact I/O modules / 3 I/O banks

Onboard Storage：1GB standard SD card, expandable up to 2GB

Programming Port：Front USB Type-B for fast download & field debugging

Backplane Current Draw：1.2A @5VDC low stable power consumption

Operating Temperature：0℃ ~ +60℃ continuous industrial operation

Certifications：UL, CSA, CE, Class I Div 2 hazardous location compliance

Ultra-Fast Motion Loop & Top-Grade Processing Capability

Different from 3MB 1769-L36ERM and other mid-range motion controllers, the 1769-L37ERMK upgrades core hardware with 4MB large memory and optimized 0.22ms minimal motion cycle. It greatly reduces program scan delay, supporting ultra-high-speed multi-axis synchronization, electronic cam follow and precise trajectory positioning that strict high-cycle production lines require.

Built-in professional kinematics function eliminates external motion control cards, simplifying system structure. Dual-port DLR redundant Ethernet avoids network disconnection and production halt, ensuring zero-latency data transmission during high-speed motion operation. Unified Studio 5000 programming integrates logic, motion and network configuration, improving project efficiency and reducing long-term maintenance difficulty.

Maxed-Out Expansion & High-End Equipment Retrofit

AllenBradley 1769-L37ERMK supports maximum 64 network nodes and 30 local I/O modules, providing super-large expansion capacity for multi-station linkage and complex distributed automation systems. Fully compatible with all 1769-series digital, analog, temperature and communication modules, it perfectly meets large-scale factory automation and intelligent equipment control demands.

It acts as the ultimate upgrade solution for L30ERMK / L36ERM low and mid-tier motion controllers. With identical installation size and backplane protocol, it supports plug-and-play replacement without cabinet modification or wiring adjustment. Native EtherNet/IP open protocol enables seamless connection with high-end servos, vision systems and third-party intelligent devices, suitable for high-standard intelligent factory renovation projects.

Industrial Application Scenarios

AllenBradley 1769-L37ERMK is widely used in high-end high-speed automation scenarios, including ultra-fast packaging machinery, multi-axis robotic assembly equipment, intelligent sorting lines, precision processing machines and automated production lines requiring high real-time motion control.

North American premium machinery OEMs deploy the controller for high-standard multi-axis motion equipment design. Latin American large manufacturing plants adopt 1769-L37ERMK to upgrade traditional production lines to high-speed intelligent motion systems. European advanced automation projects rely on its ultra-fast loop and large-capacity expansion to build stable, high-efficiency and scalable intelligent control platforms.
