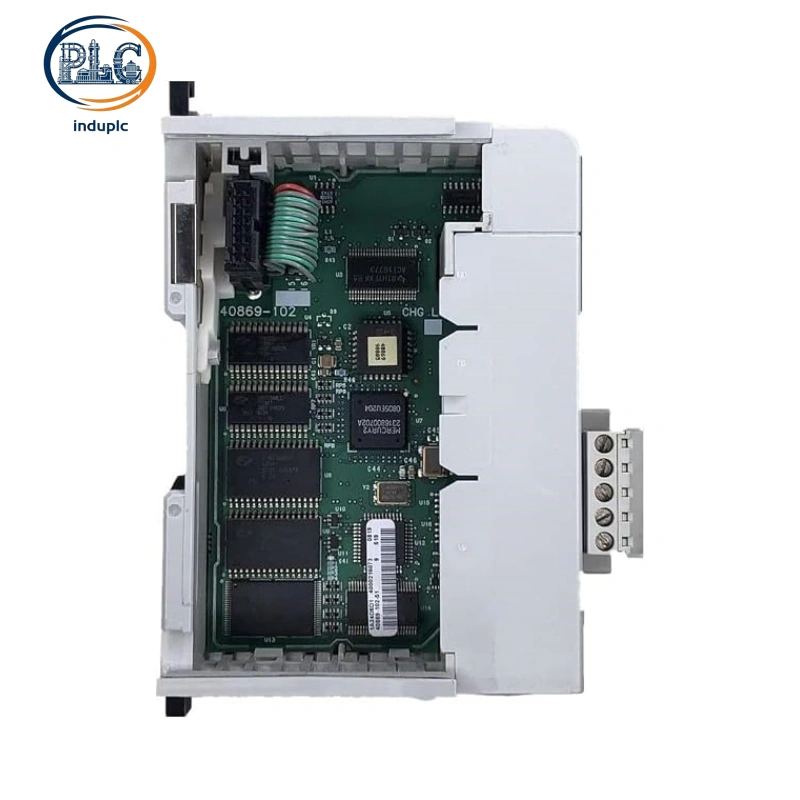

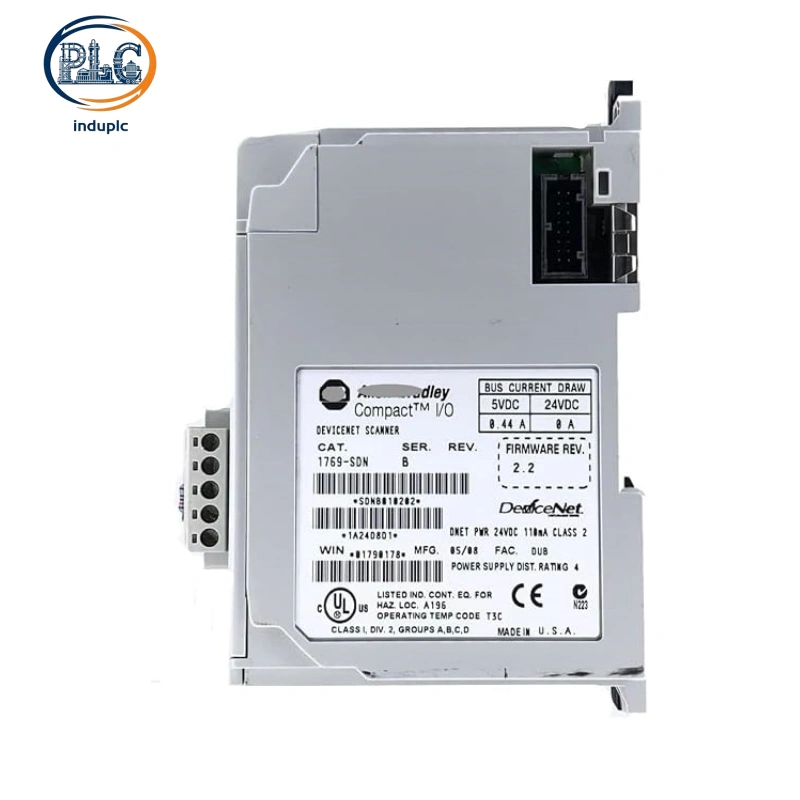

Allen-Bradley 1769-SDN is a dedicated high-performance DeviceNet scanner master module for 1769 CompactLogix and MicroLogix 1500 automation systems. Serving as the core network interface between the PLC backplane and DeviceNet fieldbus network, it realizes real-time data interaction, node scanning and distributed device control. It is the standard solution for building stable DeviceNet remote I/O systems, drive networking and multi-device distributed automation architectures.

Core Technical Parameter Specifications

Module Type：CompactLogix DeviceNet Master Scanner Communication Module

Supported Protocol：DeviceNet fieldbus (compliant with ODVA international standard)

Communication Baud Rate：125kbps / 250kbps / 500kbps software configurable

Max Network Nodes：Supports up to 63 slave nodes (64 nodes including master)

Node Address Range：0–63 adjustable via onboard rotary switch

Real-Time Response：Millisecond-level fast cyclic data scanning & polling

Backplane Power Consumption：Low bus load, compatible with standard 1769 power budget

Status Indicators：NET, MOD, I/O, FLT multi-dimensional LED status diagnosis

Protection Grade：IP20 cabinet indoor industrial protection standard

Mounting Method：Standard DIN rail & panel dual installation

Operating Temperature：0℃ ~ +60℃ continuous industrial operation

Certifications：UL, CSA, CE global industrial safety compliance

DeviceNet Master Scanning & Multi-Baud Stable Communication

The core advantage of the 1769-SDN is its professional DeviceNet master scanning capability. Unlike ordinary slave adapter modules, it acts as the network master station, actively polling, managing and monitoring all slave devices on the DeviceNet bus, including remote I/O modules, variable frequency drives, servo systems, valve islands and field sensors. It supports multiple communication modes such as cyclic polling, strobe signal and state change trigger to adapt to different industrial control logic.

With three-speed configurable baud rate, it flexibly matches different field bus distances and interference environments: 500kbps for short-distance high-speed control, 250kbps for conventional workshops, and 125kbps for long-distance wiring and complex interference scenarios. The built-in multi-LED diagnosis system intuitively displays network status, module running state, I/O communication and fault codes, greatly improving on-site debugging efficiency and fault location speed.

Distributed Networking & System Compatibility Advantages

AllenBradley 1769-SDN features full 1769 bus compatibility, perfectly matching all CompactLogix L2x/L3x series controllers and MicroLogix 1500 PLCs. It solves the pain point of limited local I/O expansion, realizing long-distance distributed I/O layout through DeviceNet bus, optimizing cabinet layout and reducing on-site wiring costs significantly.

It supports plug-and-play network configuration via Studio 5000 and RSLogix 5000 software, with complete EDS file adaptation for rapid project deployment. It is widely used for legacy DeviceNet system renovation and new distributed automation construction. The stable master station management mechanism effectively avoids network node conflicts and data packet loss, ensuring long-term uninterrupted operation of multi-device linkage production lines.

Industrial Application Scenarios

AllenBradley 1769-SDN is extensively deployed in factory automation scenarios requiring DeviceNet bus networking and distributed control, including packaging machinery multi-axis linkage, logistics conveying equipment, automated assembly lines, water treatment distributed I/O systems and industrial drive centralized control projects.

North American automation OEMs adopt 1769-SDN for standardized DeviceNet bus architecture design to improve equipment scalability. Latin American manufacturing factories deploy the module for old production line network renovation to stabilize multi-node communication. European industrial control projects rely on its high real-time performance and fault diagnosis capability to reduce network failure rates and improve production line operating efficiency.
