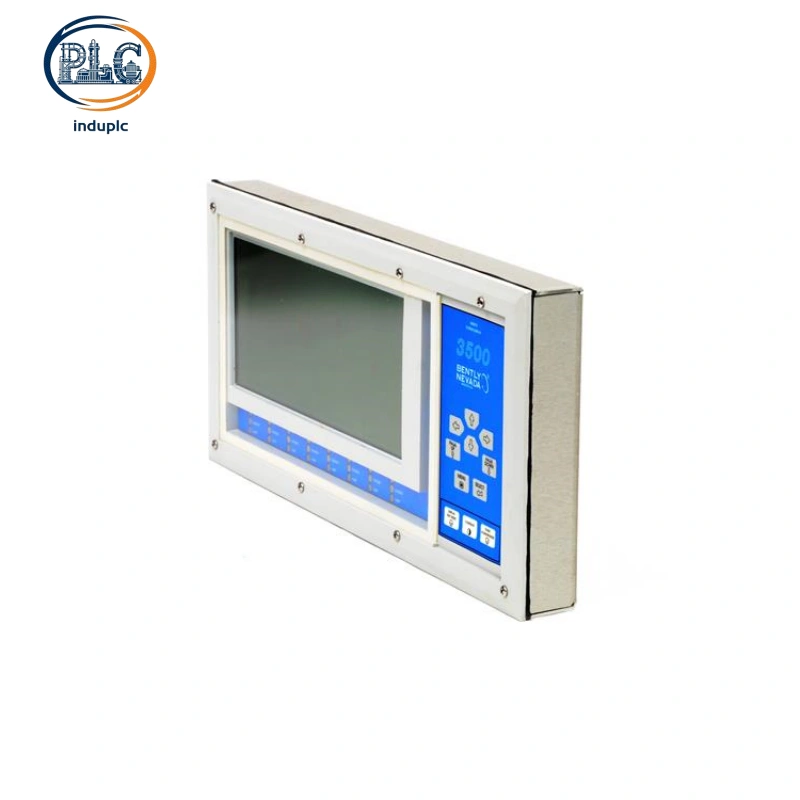

Bently Nevada 3500/93 is a dedicated system display interface module designed for the Bently Nevada 3500 machinery protection and condition monitoring rack system. Serving as the basic local HMI solution for 3500 racks, it supports real-time channel data display, alarm status indication, system configuration viewing and on-site fault diagnosis. Compatible with standard and mini 3500 racks, the 3500/93 provides reliable local visualization for turbine, compressor and rotating machinery monitoring systems, delivering cost-effective on-site operation and daily maintenance.

1. Core Technical Specifications

Module Type：3500/93 System Display Interface Module

System Compatibility：Bently Nevada 3500 series rack system

Display Connection：Supports up to 2 display units per single 3500 rack

Communication Protocol：Bently Nevada proprietary protocol + Modbus protocol

Update Rate：1 second typical channel refresh rate

Data Transmission Speed：1 Mbps maximum bus rate

Operating Current：Max 100mA operating current

Structure Specification：Full-height front display interface module + full-height rear I/O module dual-slot structure

Installation Method：System mount, rack mount, panel mount, independent mount optional

Operating Temperature：-20℃ ~ +65℃ industrial wide temperature range

Diagnostic Indicators：OK LED, TX/RX LED status indication

Certification：Class I Div 2, CSA, ATEX, IECEx hazardous area compliance

2. Official Ordering Selection & Front/Rear Board Matching

Standard Ordering Model：3500/93-AAAA-BB-CC

AAAA Code: Mounting Style & Backlight Configuration

BB Code: Cable & Extension Configuration

CC Code: Safety Certification Grade

Front & Rear Board Official Matching List

3. Core Product Advantages

Developed as a cost-efficient local HMI accessory for 3500 machinery protection systems, the Bently Nevada 3500/93 display interface module provides stable, intuitive on-site monitoring for all industrial rotating machinery. Dual communication protocols and 1-second rapid data refresh cycles maintain precise, real-time synchronization of vibration, displacement, rotational speed, and system alarm data. Versatile mounting configurations and optional backlight structures accommodate various cabinet layouts and complex field installation environments. Ultra-low power design and complete hazardous area certifications support continuous, reliable operation in high-temperature, dusty, and high-electromagnetic-interference industrial sites. The 3500/93 module streamlines daily on-site inspections and equipment maintenance, forming a fundamental local visualization component for standard 3500 rack monitoring systems.

4. Industrial Application Scenarios

The Bently Nevada 3500/93 display interface module covers extensive heavy-duty industrial condition monitoring and machinery protection scenarios across petrochemical production, thermal power generation, metallurgical processing, and energy manufacturing industries. Field deployment includes universal 3500 monitoring racks, centrifugal compressor safety protection assemblies, large-scale fan and pump vibration monitoring cabinets, and steam turbine auxiliary parameter monitoring units. The 3500/93 module delivers dependable local data visualization and real-time fault indication for all types of industrial rotating machinery protection systems.
