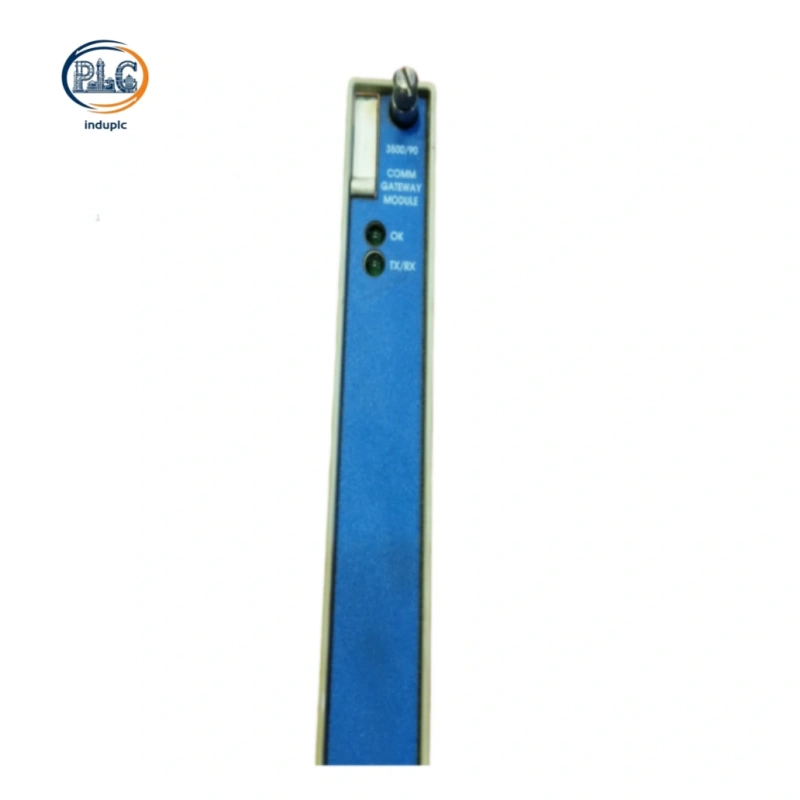

Bently Nevada 3500/90 is an advanced enhanced communication gateway module built exclusively for the Bently Nevada 3500 machinery protection and condition monitoring rack system. This high-performance interface unit delivers bidirectional data transmission, system configuration upload/download, and remote diagnostic access for full 3500 rack modules. Optimized for plant-wide centralized monitoring and upper automation system docking, the 3500/90 establishes stable network connection for turbine, compressor, and rotating machinery protection systems to realize unified data collection and remote management.

1. Core Technical Specifications

Module Type：3500/90 Enhanced Communication Gateway Module

System Compatibility：Bently Nevada 3500 series rack system

Primary Interface：Ethernet TCP/IP 10BASE-T industrial network port

Secondary Interface：Multi-function serial port (RS232/RS422/RS485 configurable)

Supported Protocol：Modbus/TCP, TCP/IP, proprietary 3500 system protocol

Max Power Consumption：5.8W full-load operating power

Data Function：Real-time alarm upload, historical event output, remote configuration, system diagnostics

Status Diagnosis：Module OK indicator, network link LED, communication status LED

Structure Specification：Full-height front gateway module + full-height rear I/O module dual-slot structure

Operating Temperature：-30℃ ~ +65℃

Storage Temperature：-40℃ ~ +85℃

Environmental Humidity：5%–95% non-condensing

Certification：Class I Div 2, CSA, ATEX, IECEx hazardous area compliance

2. Official Ordering Selection & Front/Rear Board Matching

Standard Ordering Model：3500/90-AA-BB-CC

AA Code: Communication Interface Configuration

BB Code: Firmware & Functional Grade

CC Code: Safety Certification Standard

Front & Rear Board Official Matching List

3. Core Product Advantages

The Bently Nevada 3500/90 module provides upgraded communication performance compared with conventional 3500 gateway units. Rich combination of Ethernet and serial interfaces adapts to diverse industrial networking requirements and achieves seamless protocol docking with DCS, PLC and SCADA platforms. Advanced firmware support enables remote system configuration, real-time fault diagnosis and historical data batch export to greatly reduce on-site maintenance workload. Industrial-grade wide temperature design and complete anti-interference structure maintain consistent data transmission accuracy in harsh factory environments. Intuitive front-panel LED indicators deliver clear working state feedback for rapid fault location and system status inspection.

4. Industrial Application Scenarios

The Bently Nevada 3500/90 communication gateway module undertakes core data networking tasks for large-scale machinery protection systems. Main application fields cover thermal power generation, petrochemical processing, metallurgical manufacturing and heavy energy industry. Typical equipment deployment includes steam turbine monitoring racks, centrifugal compressor protection systems, large fan and pump condition monitoring cabinets, and multi-unit centralized machinery monitoring platforms. The 3500/90 module realizes unified data interaction and remote intelligent management for distributed industrial monitoring racks.
