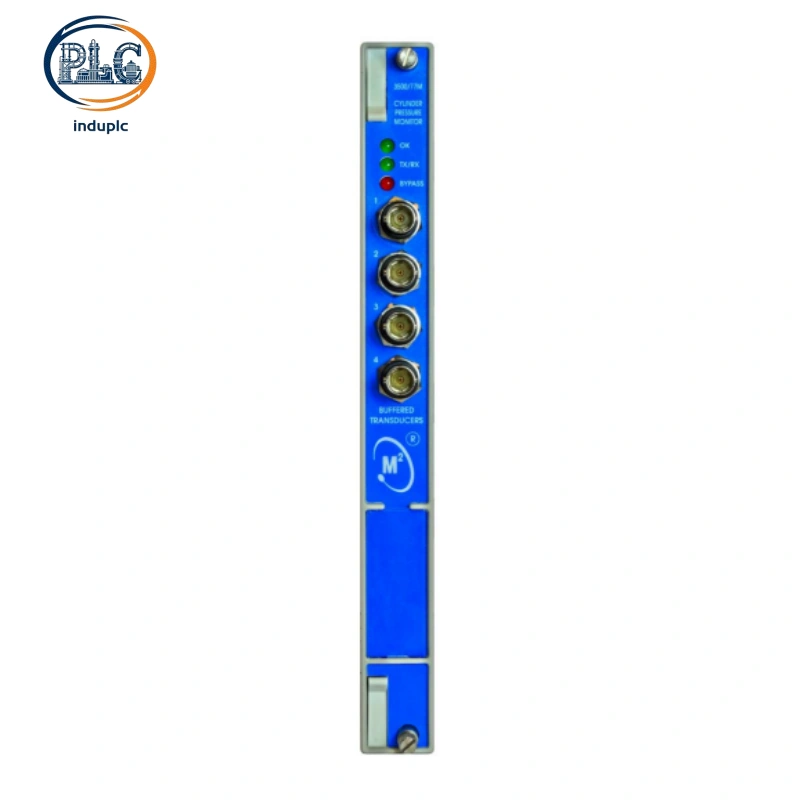

Bently Nevada 3500/77M is a professional 4-channel cylinder pressure monitoring module designed exclusively for Bently Nevada 3500 machinery protection systems. Developed for API 618 standard reciprocating compressors, the module collects real-time cylinder pressure signals, performs high-precision data analysis, and supports valve fault diagnosis and rod load calculation. The 3500/77M provides accurate pressure monitoring and equipment protection for reciprocating machinery, effectively preventing abnormal cylinder pressure operation and extending mechanical service life.

1. Core Technical Specifications

Module Type：3500/77M Reciprocating Cylinder Pressure Monitor Module

System Compatibility：Bently Nevada 3500 series rack system

Channel Quantity：4 independent pressure monitoring channels

Signal Input：0.5–10.0 VDC positive voltage signal from approved pressure transducers

Measurement Accuracy：±0.5% FS @25℃; ±1.0% FS across full temperature range

Supported Pressure Range：100 psia to 10000 psia multi-range adaptive

Response Time：Less than 0.5 seconds fast data response

Monitoring Function：Cylinder pressure tracking, valve fault detection, rod load calculation, alarm judgment

Structure Specification：Full-height front monitor module + full-height rear I/O module dual-slot structure

Operating Temperature：-30℃ ~ +65℃

Storage Temperature：-40℃ ~ +85℃

Certification：Class I Div 2, CSA, ATEX, IECEx hazardous area compliance

2. Official Ordering Selection & Front/Rear Board Matching

Standard Ordering Model：3500/77M-AA-BB-CC

AA Code: Measurement Range & Calibration

BB Code: Functional Firmware Version

CC Code: Safety Certification Grade

Front & Rear Board Official Matching List

3. Core Product Advantages

The Bently Nevada 3500/77M module delivers professional high-precision pressure monitoring exclusive to reciprocating compressor units. Four independent signal channels support multi-cylinder simultaneous acquisition to ensure synchronous and consistent data collection for reciprocating equipment. Built-in professional algorithm systems realize automatic valve fault judgment and real-time rod load calculation, providing reliable data support for equipment predictive maintenance. Strict industrial accuracy standards guarantee stable measurement results in variable temperature and high-vibration workshop environments. Full hazardous area certifications and anti-interference structural design adapt to harsh petrochemical and energy production conditions. Unified rack backplane installation simplifies system integration and daily equipment maintenance work.

4. Industrial Application Scenarios

The Bently Nevada 3500/77M pressure monitoring module focuses on reciprocating machinery protection and condition monitoring in heavy industrial fields. Core application scenarios include petrochemical process reciprocating compressors, natural gas transmission compression units, energy industry large-scale reciprocating equipment, and API 618 standard compliant cylinder pressure monitoring systems. The 3500/77M module provides full-cycle safety monitoring and fault early warning for key reciprocating production equipment.
