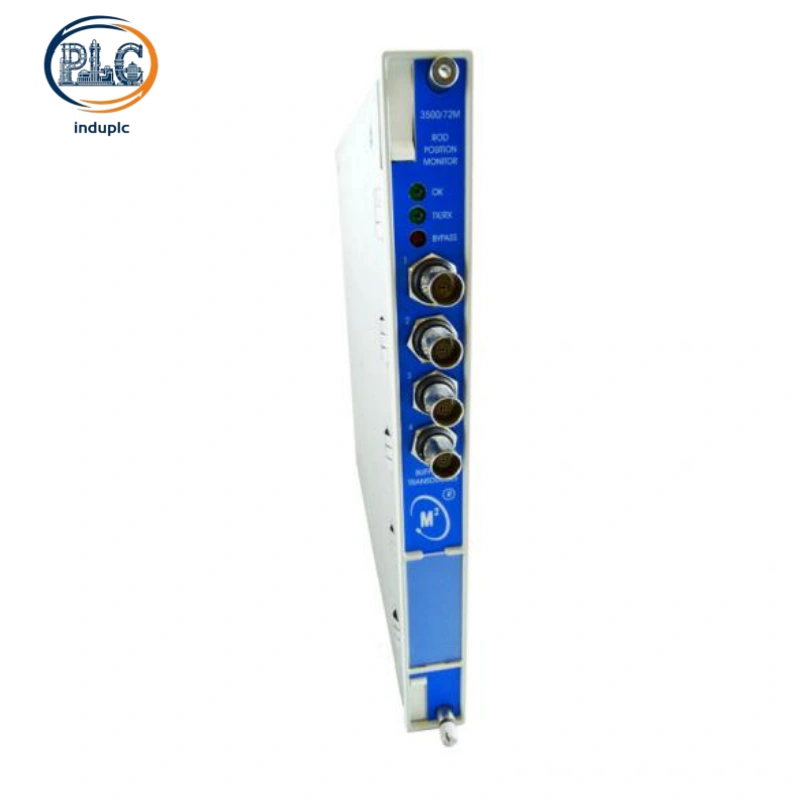

Bently Nevada 3500/72M is a dedicated 4-channel rod position monitoring module built exclusively for the Bently Nevada 3500 machinery protection rack system. Tailored for API 618 standard reciprocating compressor units, the professional monitoring hardware captures real-time rod displacement, rod drop value and hyper-compressor stroke data for reciprocating mechanical equipment. High-precision signal acquisition circuits and built-in multi-band filter algorithms achieve accurate mechanical stroke tracking and early abnormal fault warning, supporting full-cycle predictive maintenance for core reciprocating machinery in petrochemical, natural gas transmission and energy production industries.

1. Core Technical Specifications

Module Type：3500/72M Reciprocating Rod Position Monitor Module

System Compatibility：Bently Nevada 3500 series rack system

Channel Configuration：4 independent fully programmable monitoring channels

Monitoring Parameters：Rod position deviation, rod drop displacement, hyper-compressor stroke variation

Signal Filter Range：Peak-peak filter 1Hz–600Hz; gap filter -3dB @0.09Hz

Measurement Accuracy：±0.33% full scale industrial high precision

Input Impedance：10kΩ standard industrial signal impedance

Alarm Function：Custom programmable alert and danger alarm setpoints

Structure Specification：Full-height front monitor module + full-height rear I/O module dual-slot structure

Operating Temperature：-40℃ ~ +70℃ wide temperature operation

Storage Temperature：-50℃ ~ +125℃

Certification：Class I Div 2, CSA, ATEX, IECEx full hazardous area compliance

2. Official Ordering Selection & Front/Rear Board Matching

Standard Ordering Model：3500/72M-AA-BB-CC

AA Code: Measuring Function Configuration

BB Code: Signal Calibration Grade

CC Code: Safety Certification Grade

Front & Rear Board Official Matching List

3. Core Product Advantages

The Bently Nevada 3500/72M module provides exclusive professional displacement monitoring solutions for industrial reciprocating compressor mechanical components. Four independent signal channels support synchronous multi-point data collection to ensure consistent stroke parameter acquisition for multi-cylinder reciprocating units. Professional multi-frequency filter systems eliminate on-site high-frequency vibration interference and signal drift to maintain stable measurement accuracy in complex industrial environments. Fully programmable alarm thresholds adapt to customized operating parameters of different reciprocating equipment. Wide temperature adaptive hardware design and complete hazardous area certifications support 7×24 continuous stable operation in harsh petrochemical and gas production workshops. Standard rack mounting structure simplifies system integration, on-site debugging and daily equipment maintenance workflows.

4. Industrial Application Scenarios

The Bently Nevada 3500/72M monitoring module focuses on condition monitoring and fault protection for core reciprocating machinery in heavy industries. Core application scenarios cover API 618 compliant industrial reciprocating compressors, natural gas long-distance transmission compression units, petrochemical process pressurization reciprocating equipment, and industrial hyper-compressor operation monitoring systems. The hardware realizes full-cycle stroke abnormal early warning and mechanical health assessment for key reciprocating production equipment to avoid unplanned shutdown failures.
