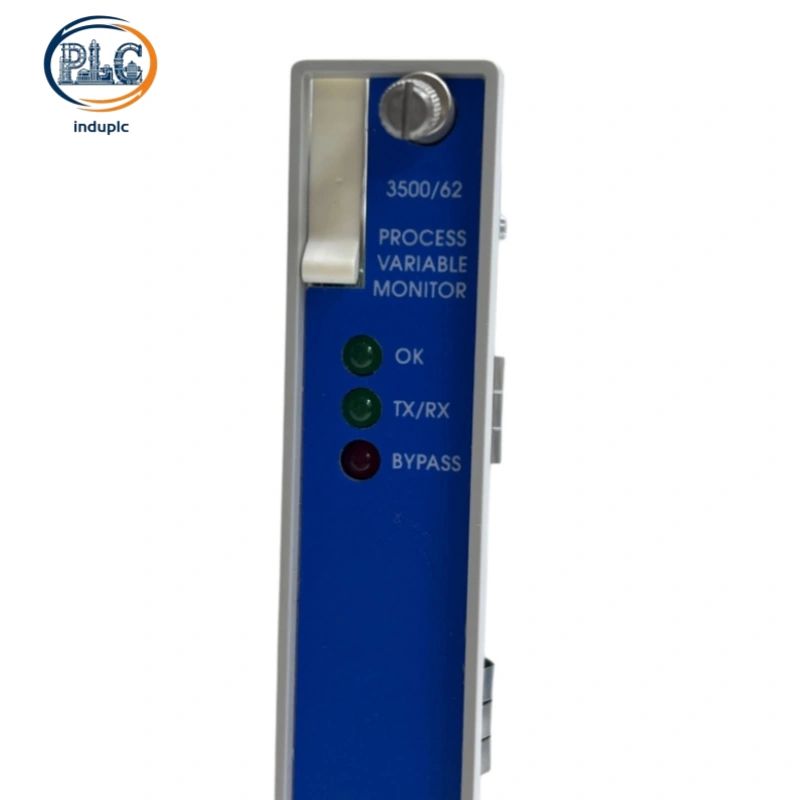

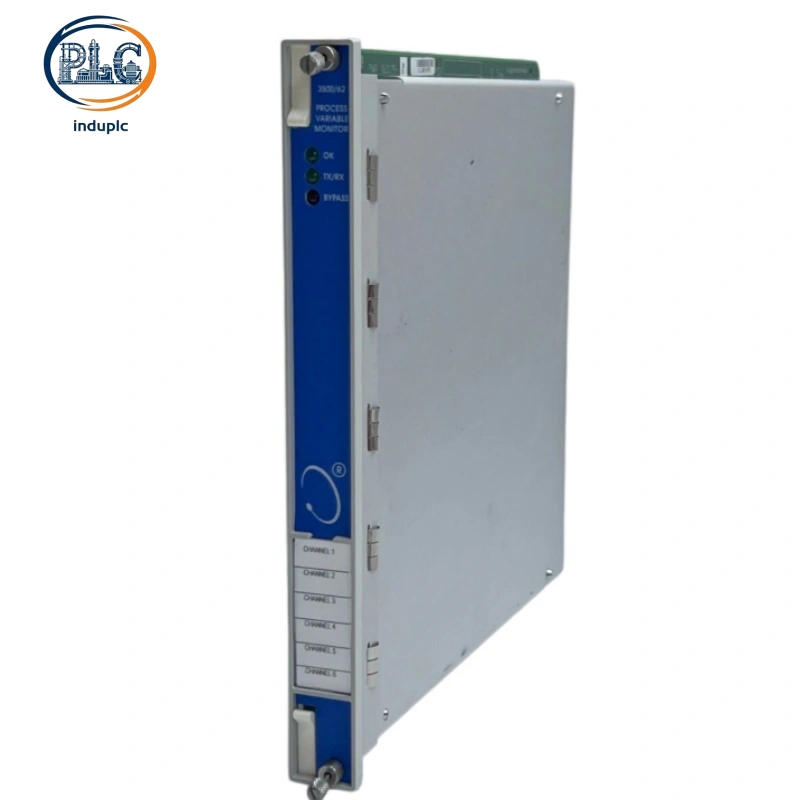

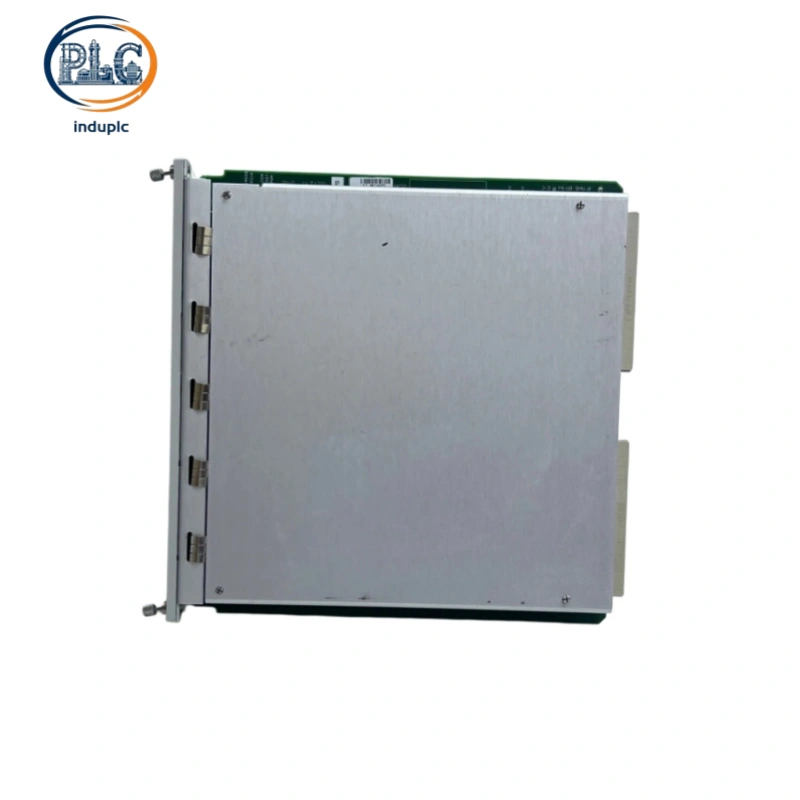

Bently Nevada 3500/62 | 2-Channel Temperature Monitor Module
Product Description
Bently Nevada 3500/62 is a compact, high-reliability 2-channel temperature monitoring module designed exclusively for the Bently Nevada 3500 machinery protection rack system. Optimized for auxiliary equipment thermal supervision and secondary monitoring point temperature acquisition, the module supports standard industrial RTD sensor signal collection and stable temperature data analysis. Featuring simplified industrial-grade design and flexible threshold configuration, the 3500/62 delivers cost-effective and reliable over-temperature early warning and safety protection for rotating and reciprocating machinery in various heavy industrial scenarios.
1. Core Technical Specifications
Module Type：3500/62 2-Channel Temperature Monitor Module
System Compatibility：Bently Nevada 3500 series rack system
Channel Configuration：2 independent isolated temperature monitoring channels
Supported Sensors：Standard industrial PT100 RTD temperature sensors
Measurement Range：-100℃ ~ +600℃ conventional industrial temperature coverage
Measurement Accuracy：±0.2℃ stable industrial measurement precision
Data Stability：Built-in hardware filtering to eliminate on-site signal fluctuation
Alarm Function：Fully configurable high/low temperature alarm and fault alarm setpoints
Structure Specification：Full-height front module + full-height rear I/O module dual-slot structure
Operating Temperature：-30℃ ~ +65℃ industrial working range
Storage Temperature：-40℃ ~ +85℃
Certification：Class I Div 2, CSA, ATEX, IECEx full hazardous area compliance
2. Official Ordering Selection & Front/Rear Board Matching
Standard Ordering Model：3500/62-AA-BB-CC
AA Code: Measuring Range Configuration
|
AA Code |
Configuration Description |
|
00 |
Standard industrial universal temperature measuring range for conventional machinery |
|
01 |
Low-temperature dedicated range for cryogenic auxiliary process equipment |
|
02 |
Medium-high temperature range for heat-generating auxiliary mechanical equipment |
BB Code: Signal Processing Grade
|
BB Code |
Configuration Description |
|
00 |
Standard signal processing for ordinary low-interference industrial workshops |
|
01 |
Enhanced anti-interference signal processing for high-electromagnetic-noise production environments |
CC Code: Safety Certification Grade
|
CC Code |
Configuration Description |
|
00 |
General industrial standard non-hazardous version |
|
01 |
CSA Class I Div 2 hazardous area certified version |
|
02 |
Full global certification including CSA, ATEX and IECEx |
Front & Rear Board Official Matching List
|
Hardware Description |
Part Number |
Matching Instruction |
|
Front Temperature Monitor Main Board |
125670-01 |
Universal core board compatible with all 3500/62 temperature monitoring configurations |
|
Standard Rear I/O Board |
125671-01 |
Universal signal matching board for all standard 3500/62 operational models |
3. Core Product Advantages
The Bently Nevada 3500/62 module provides lightweight, cost-efficient and highly reliable temperature monitoring solutions for industrial auxiliary equipment and secondary monitoring nodes. Two independent isolated channels support synchronous dual-point temperature collection without signal crosstalk, perfectly matching low-channel monitoring demands and avoiding hardware resource waste. Optimized low-power circuit design ensures long-term stable continuous operation and reduces system energy consumption. Built-in hardware filtering structure effectively suppresses on-site electromagnetic interference and temperature signal drift, maintaining stable measurement accuracy in complex industrial environments. Simplified programmable alarm logic lowers on-site configuration, debugging and daily maintenance difficulty. Compact functional design improves cabinet space utilization, making it ideal for distributed multi-point auxiliary monitoring systems.
