1. Core Technical Specifications

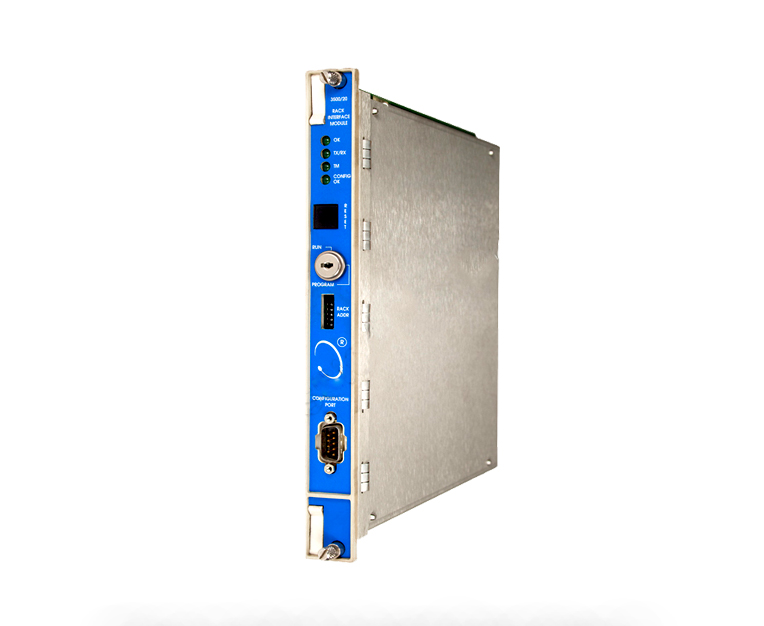

Module Type：3500/20 Rack Interface System Management Module (RIM)

Specific Model：3500/20-01-02-00 Enhanced Multi-Protocol System Control Version

System Compatibility：Full adaptive for all Bently Nevada 3500 series monitor and relay modules

Installation Slot：Dedicated RIM slot of 3500 rack, mandatory system core module

Core Functions：Rack system initialization, parameter configuration, fault self-diagnosis, steady-state data output, power monitoring

Communication Protocol：Supports standard industrial protocol + enhanced dedicated transmission mode

System Management：Full rack module status scanning, unified timing synchronization, configuration data storage

Self-Test Mechanism：24/7 real-time hardware self-diagnosis for power supply, communication and module status

Power Consumption：4.75W low-power stable operation design

Structure Specification：Half-height compact modular design, space-saving rack deployment

Operating Temperature：-40℃ ~ +90℃ ultra-wide industrial temperature range

Storage Temperature：-40℃ ~ +85℃

Certification：Class I Div 2, CSA, ATEX, IECEx full hazardous area safety certification

Industry Compliance：Fully compliant with API 670 machinery protection system standards

2. Official Ordering Code Definition & Exact Model Parsing

Standard Ordering Model：3500/20-AA-BB-CC

AA Code: Basic Function Version

BB Code: Communication Protocol Grade

CC Code: Safety Certification Grade

Front & Rear Board Official Matching List

3. Core Product Advantages

The 3500/20-01-02-00 RIM module serves as the mandatory system core of the 3500 rack, realizing centralized management and intelligent scheduling of the entire monitoring system, which cannot be replaced by ordinary data transmission modules. Compared with standard RIM versions, the BB02 multi-protocol configuration enhances cross-platform compatibility, enabling seamless data interaction with mainstream industrial DCS and PLC systems without additional protocol conversion accessories, reducing system integration costs. It integrates full-rack real-time self-diagnosis function, automatically scanning the operating status of all monitoring modules, relay modules and power units in the rack, accurately locating faulty hardware and uploading alarm information in real time, greatly improving on-site operation and maintenance efficiency. Supporting one-key configuration storage and batch parameter downloading, it realizes rapid system debugging and equipment replacement recovery, shortening project commissioning cycle. With ultra-wide temperature adaptability and industrial-grade anti-interference design, it maintains stable system operation in high-temperature, high-humidity and strong electromagnetic interference industrial environments, effectively avoiding system collapse and data disorder caused by core management module failure.

4. Industrial Application Scenarios
