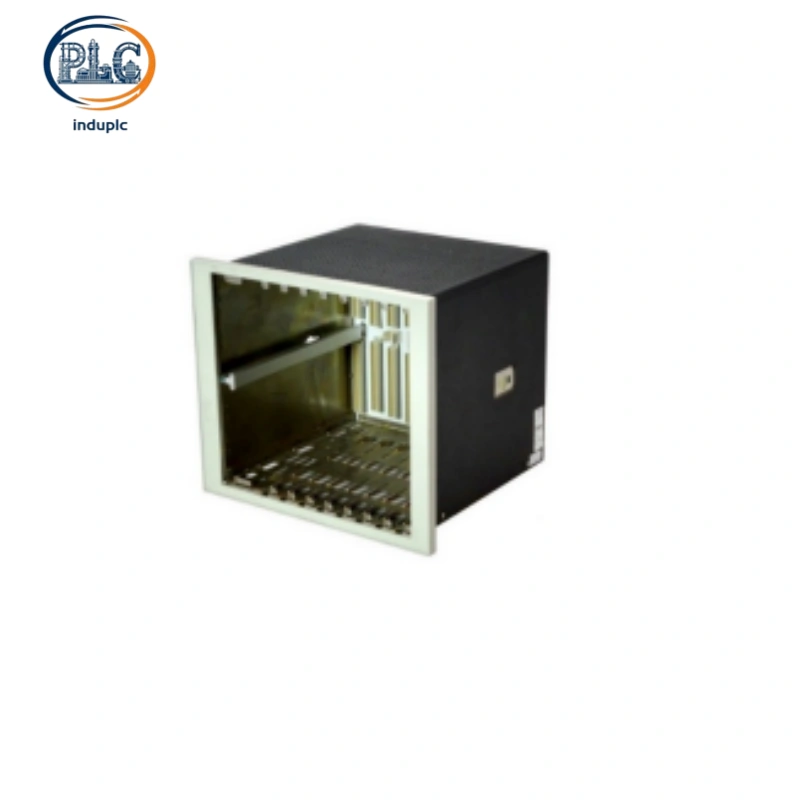

Bently Nevada 3500/05-02-02-00-00-01 | System Rack Chassis Module
Product Description
1. Core Technical Specifications
Module Type：3500/05 Standard Enhanced System Rack Chassis
Specific Model：3500/05-02-02-00-00-01 Industrial Standard Cabinet Mount Chassis
Compatible System：Full series of Bently Nevada 3500 monitoring and protection modules
Total Slot Quantity：14 standard functional slots + dedicated RIM slot + dedicated power slot
Bus Architecture：Built-in high-speed dedicated system bus, supporting full-rack synchronous data transmission
Installation Method：Standard 19-inch industrial cabinet rack mounting
Heat Dissipation Design：Natural convection + auxiliary airflow channel enhanced heat dissipation structure
Anti-Vibration Grade：Industrial reinforced anti-vibration and anti-shock structural design
EMC Performance：Integrated shielding structure, suppressing internal and external electromagnetic interference
Support Deployment：Single power supply / dual redundant hot backup power supply deployment
Overall Dimension：482.6mm × 311.2mm × 264.2mm standard industrial size
Operating Temperature：0℃ ~ +60℃ continuous operating temperature range
Storage Temperature：-40℃ ~ +85℃
Environmental Humidity：5%–95% non-condensing humidity adaptation
Industry Compliance：Comply with API 670, IEC 61508 industrial machinery protection system standards
Certification：Class I Div 2, ATEX, IECEx hazardous area environmental certification
2. Full Ordering Code Parsing & Configuration Definition
Complete Ordering Model：3500/05-02-02-00-00-01
First Code (02): Chassis Structure Specification
|
Code |
Configuration Description |
|
02 |
Standard 14-slot full-size chassis, supporting full configuration of 3500 series modules, suitable for mainstream industrial standard projects (adopted for this model) |
Second Code (02): Heat Dissipation & Environmental Grade
|
Code |
Configuration Description |
|
02 |
Enhanced heat dissipation and wide-temperature environmental adaptation version, suitable for indoor industrial cabinet long-term continuous operation (adopted for this model) |
Third Code (00): Factory Pre-Configuration Mode
|
Code |
Configuration Description |
|
00 |
No factory pre-installed modules, empty standard chassis for on-site flexible module collocation (adopted for this model) |
Fourth Code (00): Bus Version Grade
|
Code |
Configuration Description |
|
00 |
Standard stable system bus version, compatible with all current 3500 series new and old modules (adopted for this model) |
Fifth Code (01): Revision & Upgrade Version
|
Code |
Configuration Description |
|
01 |
Latest optimized structural revision, upgraded anti-vibration and shielding performance, stable mass production version (adopted for this model) |
Standard Matching Accessories List
|
Accessory Name |
Part Number |
Matching Instruction |
|
Chassis Rear Bus Backplane |
126445-01 |
Dedicated backplane for 3500/05 standard 14-slot chassis data bus transmission |
|
Cabinet Mounting Bracket Kit |
126446-01 |
Standard 19-inch cabinet fixed mounting accessories |
|
Slot Dustproof Baffle Set |
126447-01 |
Idle slot dustproof and anti-interference baffles for incomplete configuration |
3. Core Product Advantages
The 3500/05-02-02-00-00-01 chassis is the standardized upgraded carrier of the 3500 system, solving the problems of poor heat dissipation, weak anti-interference and single compatibility of old-generation chassis. Adopting a 14-slot full-capacity layout, it supports flexible combination of half-height and full-height modules, meeting the configuration requirements of simple small monitoring systems and complex multi-point protection systems, with extremely high configuration flexibility. The optimized internal airflow channel and enhanced heat dissipation structure effectively reduce the operating temperature of high-load modules such as power supply and communication, avoiding system instability caused by overheating during long-term operation. The integrated metal shielding and reinforced anti-vibration structure can resist on-site electromagnetic interference and equipment operation vibration, ensuring stable transmission of the internal system bus and no data loss or dislocation. Supporting dual redundant power supply layout, it reserves standardized installation positions for dual power modules, which is convenient for users to upgrade high-reliability power supply schemes later. The unified industrial standard size and complete accessory system simplify on-site installation, debugging and later maintenance work, greatly improving the overall stability and service life of the TSI system.
4. Industrial Application Scenarios
As the core mechanical carrier of the 3500 series system, the 3500/05 standard chassis is applicable to all standard industrial machinery protection system construction scenarios. In thermal power generation industry, it is widely used in steam turbine, generator and auxiliary machine TSI monitoring racks, carrying vibration, displacement, keyphasor and relay protection modules to form a complete set of unit safety protection systems. In petrochemical and natural gas industries, it is deployed in compressor unit, liquefaction equipment and pressurization device monitoring systems, adapting to hazardous area environmental standards and providing stable structural support for high-precision fault monitoring equipment. It is also the preferred standard chassis for metallurgical heavy industry, wind power generation and large industrial pump and fan condition monitoring systems, supporting customized configuration of different monitoring schemes, and meeting the system construction and safety acceptance standards of various industrial fields.
