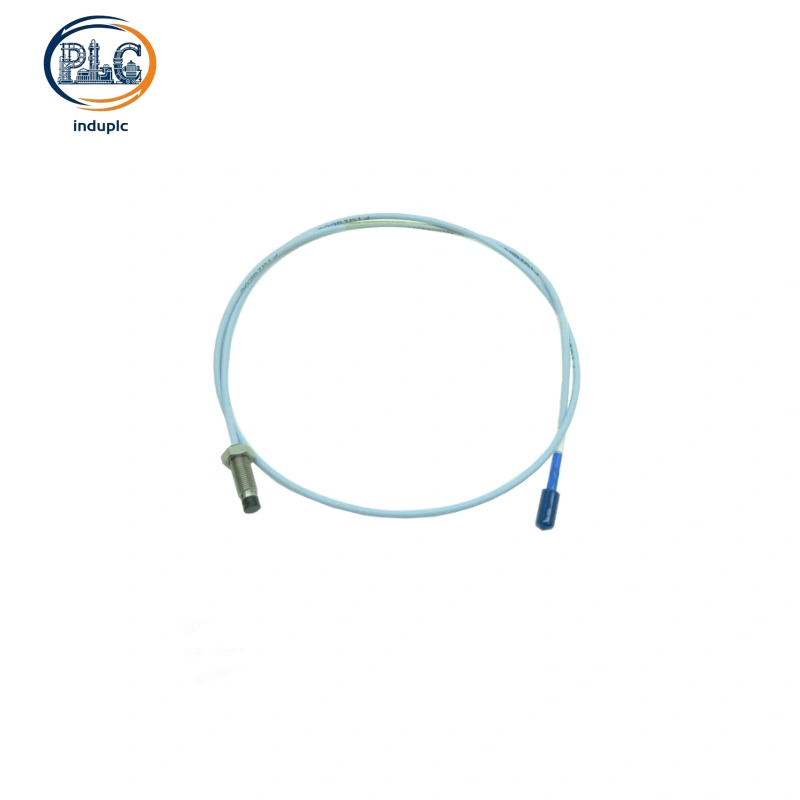

Bently Nevada 330101-00-20-05-02-00 | 3300 XL 8mm Proximity Probe

The Bently Nevada 330101-00-20-05-02-00 is a high-precision 3300 XL 8mm non-contact eddy-current proximity probe, belonging to the industry-standard 3300 XL transducer series. Designed for shaft displacement, radial vibration, thrust position and speed monitoring on critical rotating machinery, this probe delivers stable linear voltage output without physical contact with the measured rotor target. As a classic full-spec configuration model, it features 20-meter factory cable length, standard linear range and universal industrial grade, fully compatible with 3300 XL and 3500 series TSI monitoring systems. Widely deployed in power, petrochemical and heavy industrial core equipment monitoring, it provides long-term high-reliability condition sensing for steam turbines, compressors, generators and large pumps.

1. Core Technical Specifications

Full Part Number：330101-00-20-05-02-00

Product Series：3300 XL 8mm Proximity Transducer System

Measurement Principle：High-frequency eddy-current non-contact induction

Probe Diameter：8mm standard industrial probe size

Standard Sensitivity：7.87 V/mm (200 mV/mil) precise factory calibration

Linear Measurement Range：0–2mm (0–80mil) stable linear output interval

System Resolution：Ultra-high micro-displacement resolution for tiny shaft vibration capture

Cable Configuration：20-meter factory integrated non-armored cable

Operating Temperature Range：-40℃ ~ +85℃ standard industrial temperature rating

Target Material Adaptation：Standard ferromagnetic metal rotor target (steel, iron alloy)

Shielding Performance：Integrated anti-interference shielding, resisting field EMI and signal crosstalk

Structure Grade：Hermetically sealed stainless steel probe body, oil-proof, dust-proof and corrosion-resistant

System Compatibility：Matches 3300 XL Proximitor sensor and 3500 series monitor modules

Industry Compliance：Compliant with API 670 machinery protection system standards

Certification：CSA, ATEX, IECEx hazardous area safety certification

2. Full Ordering Code Parsing (330101-00-20-05-02-00)

The 330101 series adopts six-segment unified coding rules, each code corresponds to fixed hardware configuration, achieving zero error on-site matching.

3. Matching System & Supporting Accessories

4. Core Product Advantages

The 330101-00-20-05-02-00 8mm proximity probe inherits all high-performance characteristics of the 3300 XL series, with outstanding stability and compatibility for industrial core equipment monitoring. The 7.87V/mm high linear sensitivity ensures accurate capture of tiny shaft vibration and displacement changes, effectively identifying early faults such as rotor unbalance, shaft friction and bearing looseness. The 20-meter factory integrated cable eliminates on-site welding and wiring errors, greatly improving construction efficiency and signal consistency.

Adopting advanced eddy-current non-contact measurement technology, it has no mechanical wear, zero friction loss and ultra-long service life compared with contact sensors. The full stainless steel sealed structure resists oil pollution, dust and conventional chemical corrosion, adapting to complex working conditions of unit oil stations and factory equipment. Standard API 670 industrial grade and complete hazardous area certifications ensure reliable operation in petrochemical and power plant explosive environments, supporting 7×24-hour uninterrupted online monitoring.

5. Industrial Application Scenarios

This 330101 long-cable proximity probe is mainly applicable to medium and large core rotating machinery monitoring scenarios requiring long-distance wiring. In thermal power plants, it is widely used for steam turbine shaft vibration, thrust displacement and rotor position monitoring, serving as the core sensing component of unit TSI protection system. In petrochemical and natural gas industries, it monitors high-speed centrifugal compressors, turbo-expanders and process pressurization equipment, providing accurate displacement data for equipment safety interlock. It is also commonly deployed in metallurgical heavy industry and industrial large generator sets, solving the wiring distance limitation of short probes, and realizing stable long-distance signal transmission for centralized cabinet arrangement sites.
