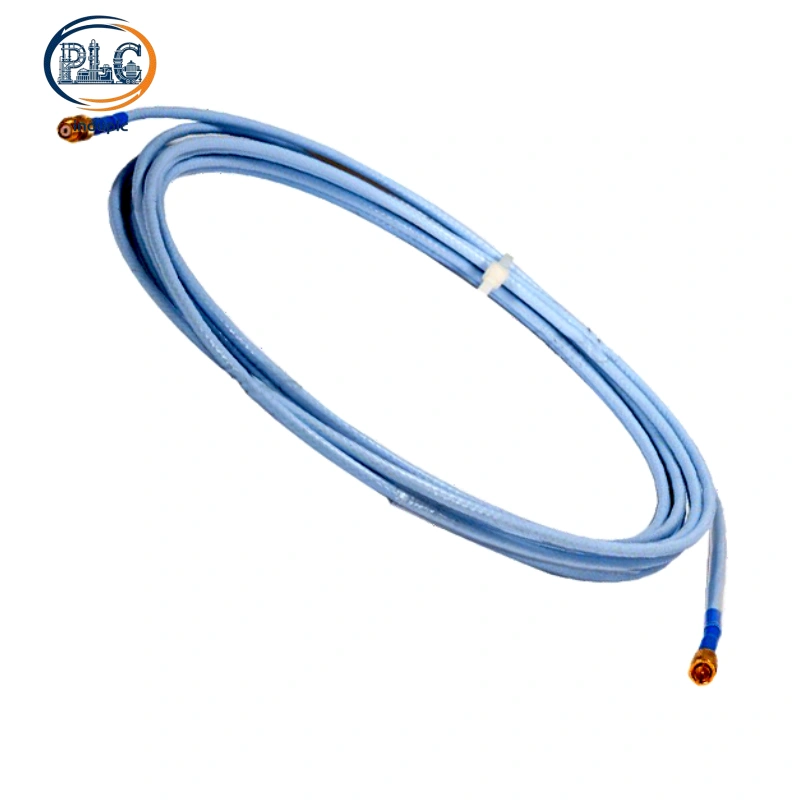

Bently Nevada 330130-040-00-00 | 3300 XL Standard Extension Cable
Complete 3300 XL proximity monitoring systems rely on matched signal extension cables to maintain stable data transmission between field probes and proximitor converters. The Bently Nevada 330130-040-00-00 is a factory-calibrated standard extension cable tailored exclusively for the 3300 XL 8mm proximity probe series. Designed to resolve on-site wiring distance limitations between rotating machinery sensors and signal processing units, this 4-meter standard cable fills the gap of short-distance signal extension in compact equipment layouts. Unlike armored high-grade cables for harsh abrasion environments, this standard model focuses on conventional industrial indoor scenarios, delivering consistent impedance matching, low signal attenuation and long-term transmission stability for routine TSI machinery protection configurations.
Field Practical Configuration Breakdown
The multi-segment model coding of 330130 series directly defines cable length, structural grade and certification attributes, helping maintenance and engineering teams quickly verify applicability before layout construction:
|
Code Section |
Spec Value |
On-Site Interpretation |
|
Base Model |
330130 |
Official dedicated extension cable series for 3300 XL proximity transducer systems |
|
First Suffix 040 |
4.0m |
Fixed factory cable length of 4 meters, ideal for short-distance bridging between probe and proximitor in compact equipment rooms |
|
Second Suffix 00 |
Standard Cable Structure |
Non-armored basic structure with standard connector protection, suitable for non-abrasive indoor industrial environments |
|
Third Suffix 00 |
No Special Certification |
Suitable for general non-classified industrial areas without mandatory explosion-proof agency approval requirements |
Core Physical & Transmission Performance
Full Part Number：330130-040-00-00
Applicable System：3300 XL 8mm eddy current proximity probe full series
Total Cable Length：4 meters (13.1 feet)
Transmission Impedance：Factory matched 75Ω professional impedance, consistent with 3300 XL system calibration standards
Insulation Material：High-performance PFA composite insulation layer, low signal loss and anti-aging properties
Outer Sheath：Durable industrial-grade polymer sheath, resistant to conventional dust, moisture and mild temperature fluctuations
Overall Weight：0.14kg, lightweight and flexible for convenient wiring and arrangement
Working Temperature Range：-40℃ to +85℃, matching the operating temperature of field proximity probes
Signal Stability：Low attenuation transmission design, no waveform distortion or data deviation within effective length
Compatible System Matching Range
This standard extension cable supports full compatibility with all mainstream 3300 XL probe assemblies and signal conversion units, forming a complete closed-loop monitoring system. It perfectly matches all 330101, 330102, 330103, 330104, 330105 series 8mm proximity probes, paired with 330180 series proximitor sensors for signal conversion and output. The assembled signal loop can be directly accessed to 3500/42 and 3500/45 monitoring modules for real-time vibration and displacement data collection, alarm judgment and safety interlock control.
All interfaces adopt factory unified calibration standards, ensuring zero impedance mismatch, no need for on-site debugging and secondary calibration, greatly simplifying system construction and later maintenance work.
Practical On-Site Advantages
The 4-meter short standard specification of 330130-040-00-00 solves the redundant wiring problem caused by ultra-long cables in compact equipment layouts. Excessively long cables are prone to messy winding, vibration friction and dust accumulation in narrow equipment rooms, while this fixed 4-meter length realizes neat and reasonable wiring layout, reducing hidden dangers of on-site wiring failures.
Adopting professional impedance matching design exclusive for 3300 XL systems, it effectively avoids signal drift, data jitter and measurement deviation caused by mismatched ordinary cables. The integrated one-piece molding process eliminates intermediate joints, ensuring continuous and stable signal transmission. The standard non-armored structure is flexible and easy to bend, adapting to various narrow wiring spaces inside equipment casings and cabinet gaps, with strong on-site adaptability and low maintenance cost.
Typical Industrial Application Scenarios
This standard extension cable is widely used in conventional industrial monitoring scenarios with short wiring distances. In thermal power plants, it is commonly deployed for steam turbine auxiliary monitoring points and small unit TSI system wiring, adapting to compact equipment room layout. Petrochemical enterprises apply it on medium and small-sized compressors and process pump monitoring systems, realizing stable signal transmission between field probes and on-site proximitors.
It is also the preferred replacement accessory for daily maintenance and overhaul of old 3300 XL systems. For aging equipment with aging, broken or faulty original extension cables, this model can be directly replaced and installed without modifying the original system parameters and wiring layout, with high compatibility and low replacement cost.
