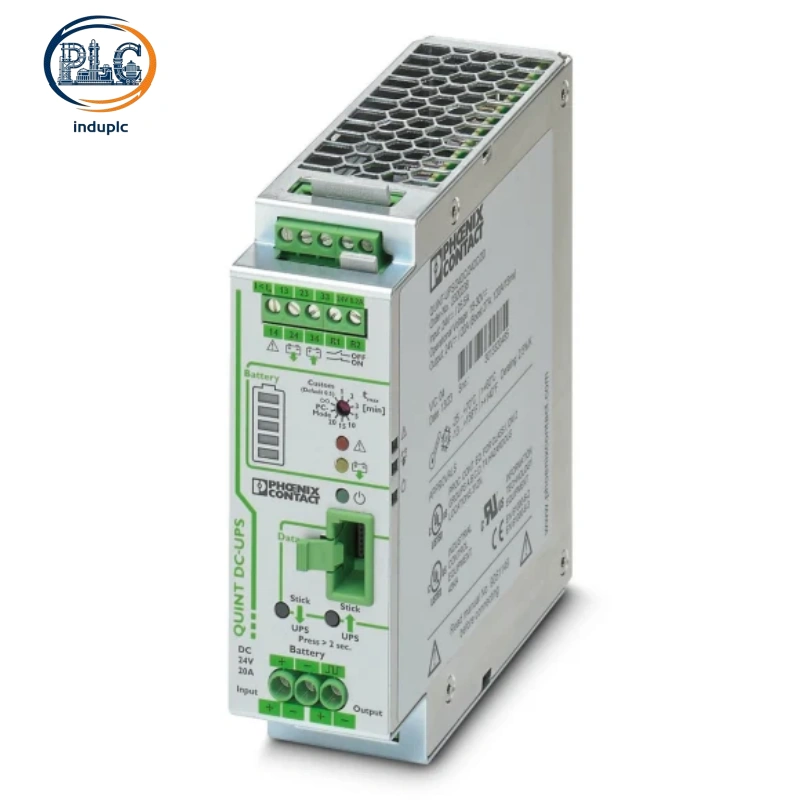

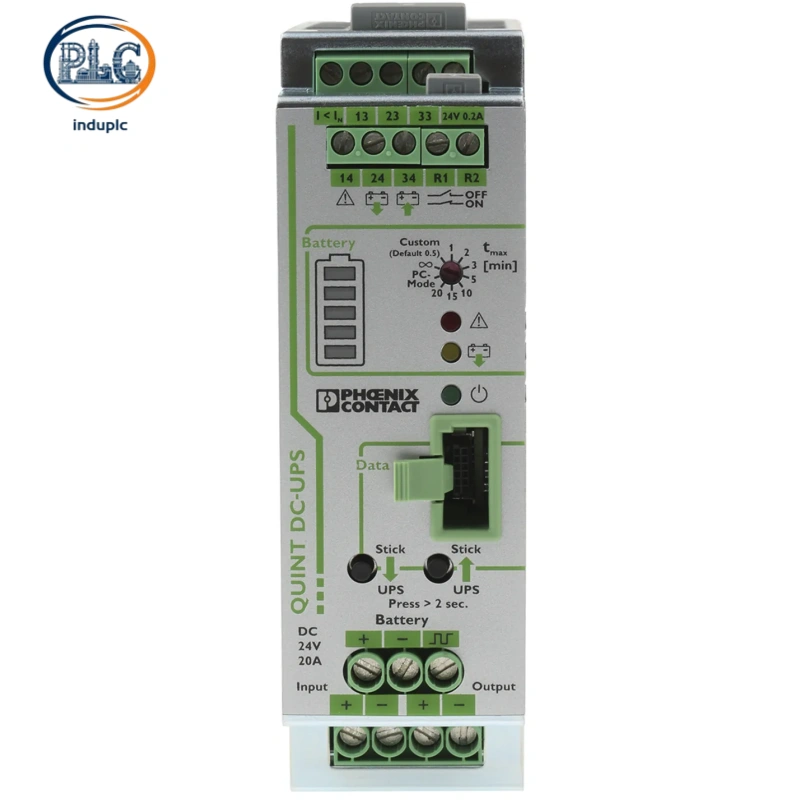

Phoenix Contact 2320238 | QUINT-UPS/24DC/24DC/20 Industrial DC UPS

The Phoenix Contact 2320238 is a high-performance DIN rail DC uninterruptible power supply built with advanced IQ intelligent technology, officially named QUINT-UPS/24DC/24DC/20. Tailored for 24V DC industrial control systems, the 2320238 delivers stable 20A continuous output power, effectively resolving equipment downtime and data loss caused by grid voltage dips, instantaneous power failures and power fluctuation interference. As an original Phoenix Contact 2320238 industrial UPS unit, it supports intelligent battery detection and real-time system monitoring, serving as a core power guarantee for high-reliability automated industrial equipment.

Key Technical Specifications & Structural Design

Designed for industrial continuous operation scenarios, the Phoenix Contact 2320238 features wide voltage adaptation, high power output and compact cabinet-friendly structure, fully compliant with industrial environmental and electrical safety standards.

• Part Number：2320238 (QUINT-UPS/24DC/24DC/20)

• Input Voltage Range：18V DC ~ 30V DC

• Rated Output：24V DC / 20A continuous load current

• Max Mains Operating Current：32.9A

• Mounting Type：Standard DIN rail installation with UTA 107/30 adapter

• Protection Grade：IP20 dust and touch protection

• Operating Temperature：-25℃ ~ +60℃ wide industrial temperature range

The integrated lightweight housing of the 2320238 Phoenix Contact DC UPS features excellent vibration resistance and heat dissipation performance, adapting to long-term 7×24-hour stable operation in factory control cabinets.

Core IQ Intelligent Functions & Product Advantages

The biggest highlight of the Phoenix Contact 2320238 industrial UPS is its built-in IQ intelligent management system, which achieves full lifecycle monitoring of power supply and energy storage status, far surpassing ordinary non-intelligent industrial UPS modules. The 2320238 supports automatic battery identification and fast charging, eliminating manual parameter configuration during installation and commissioning.

Equipped with IFS interface communication capability, the Phoenix Contact 2320238 can upload real-time operating data, battery health status and fault alarms to the upper control system, realizing predictive maintenance. It supports tool-free battery hot replacement without system shutdown, greatly reducing equipment maintenance downtime. Meanwhile, the built-in POWER BOOST reserve function ensures reliable startup of heavy industrial loads, avoiding startup failure caused by instantaneous insufficient power.

System Matching & Industrial Application

The Phoenix Contact 2320238 is perfectly compatible with Phoenix Contact 24V DC battery modules and QUINT series power supplies, supporting flexible capacity expansion to meet different backup time requirements. Widely applied in automated production lines, petrochemical control cabinets, water treatment systems and intelligent logistics equipment, the 2320238 20A DC UPS provides stable emergency power for PLCs, safety interlock systems, sensors and data acquisition units.

For industrial projects requiring uninterrupted DC power supply, deploying the original Phoenix Contact 2320238 can effectively avoid production interruption and data loss caused by grid anomalies, improving the overall stability and safety of industrial automation systems.
