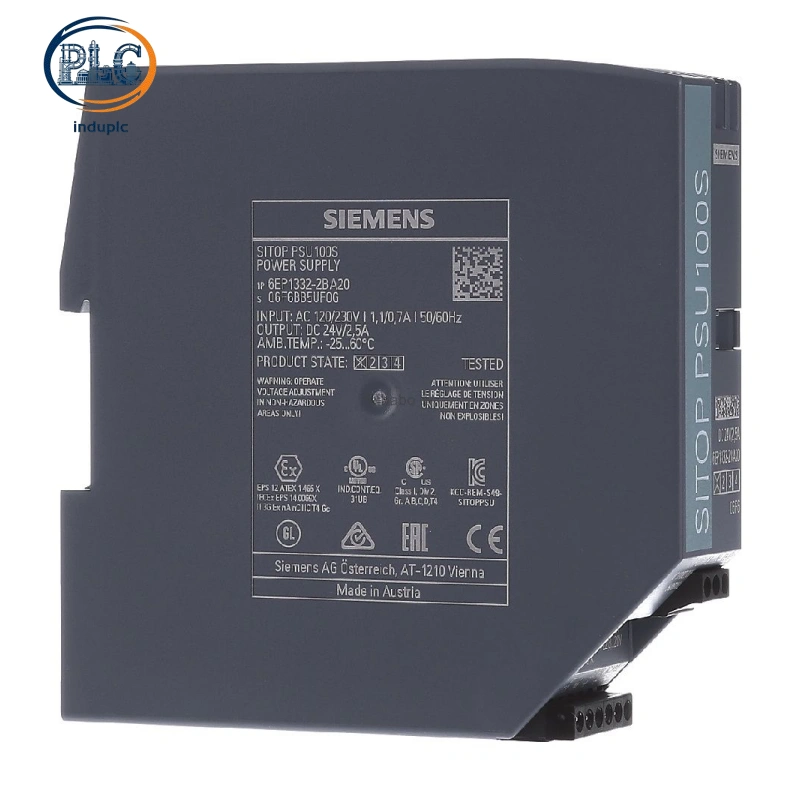

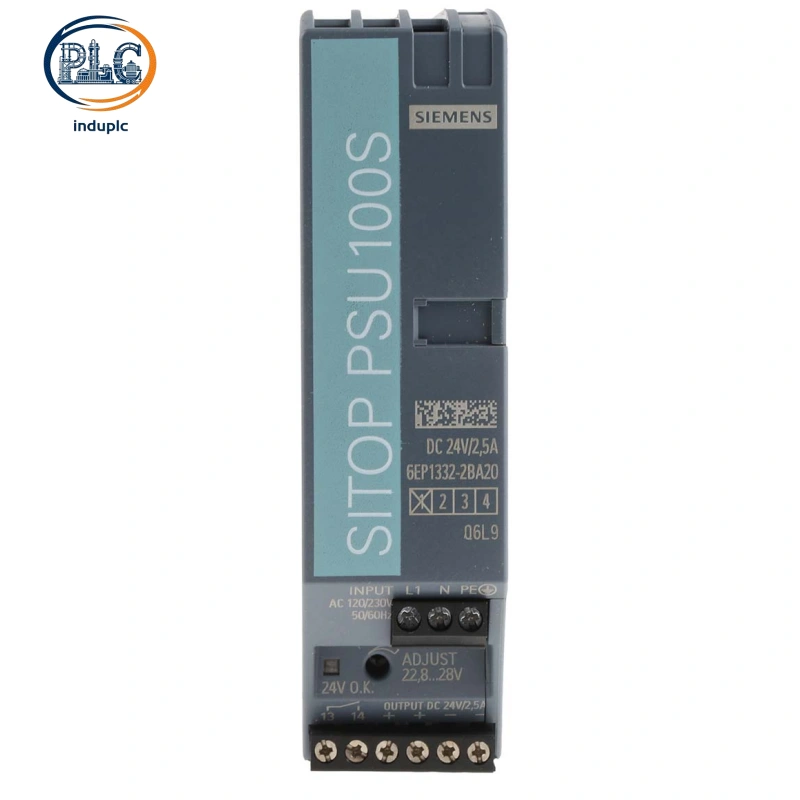

Siemens 6EP1332-2BA20 | SITOP PSU100S 24V 2.5A 60W Power Supply

Siemens 6EP1332-2BA20 is an economical single-phase DIN rail power supply from the Siemens SITOP PSU100S series. Designed for standard industrial automation low-power distribution, Siemens 6EP1332-2BA20 delivers stable 24V DC output, 2.5A rated current and 60W continuous power output for general factory control cabinets and small machinery systems. Compact hardware sizing and reliable fixed-output performance make the 6EP1332-2BA20 a mainstream cost-effective power solution for global industrial equipment deployment.

Key Electrical Parameters

Siemens 6EP1332-2BA20 supports universal wide-range AC input from 85V to 264V, compatible with 50Hz and 60Hz grid environments across different regions. Output voltage of the 6EP1332-2BA20 features manual potentiometer adjustment from 22.8V DC to 28V DC, allowing flexible voltage calibration for on-site load matching. Standard conversion efficiency reaches 85%, with controlled output ripple ensuring clean power for sensitive sensors and low-power PLC modules.

Built-in overload tolerance provides 120% permanent power reserve and 150% short-term boost capacity for difficult load startup. Integrated overvoltage protection, overcurrent protection and automatic short-circuit recovery enhance operational stability of the Siemens 6EP1332-2BA20 in daily continuous operation. Dry relay contact output enables real-time 24V status monitoring for remote system diagnosis.

Mechanical and Environmental Performance

Ultra-narrow 32.5mm housing of the 6EP1332-2BA20 optimizes cabinet space utilization, supporting dense side-by-side DIN rail installation on standard NS35 mounting rails. Operational temperature range covers -25°C to +70°C, with linear load derating activating above 60°C to guarantee long-term full-load safety. IP20 housing structure provides effective dust and touch protection for indoor industrial control environments.

Product Strengths and Industrial Value

Low no-load power loss reduces long-term heat accumulation inside control cabinets, extending service life of surrounding electrical components. Automatic fault recovery design lowers manual maintenance frequency for small and medium automation equipment. Wide voltage input specification of Siemens 6EP1332-2BA20 simplifies equipment export and multi-region project adaptation without additional grid conversion modules.

Common Application Scenarios

6EP1332-2BA20 widely applies to small packaging machinery, material conveying systems, building automation auxiliary cabinets, environmental monitoring devices and miniature PLC peripheral power distribution loops. Stable low-power output capability suits continuous light-load operation in standard industrial automation projects.
