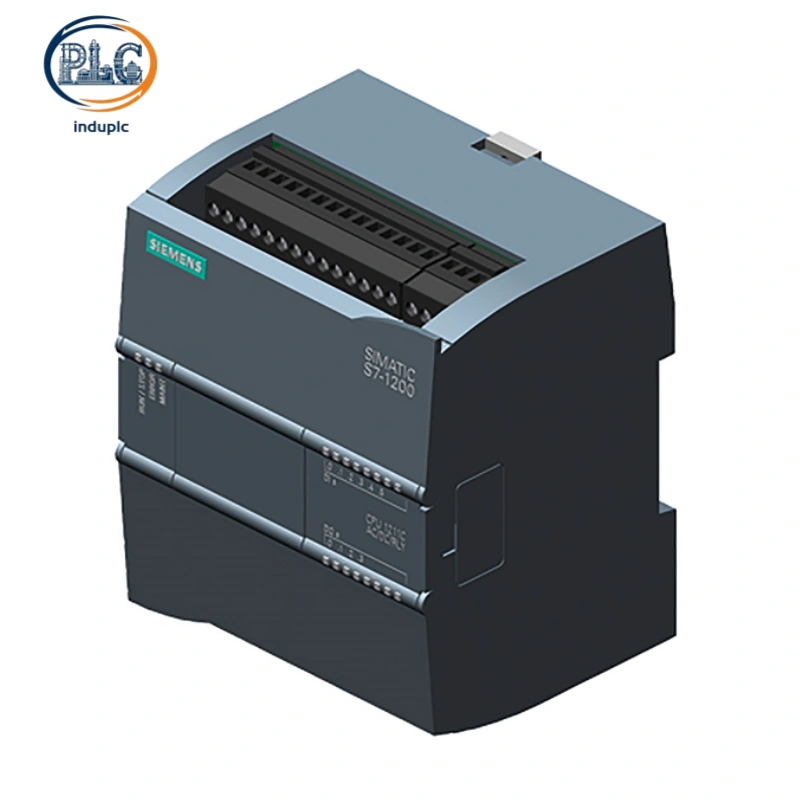

Siemens 6ES7211-1AE40-0XB0 | S7-1200 CPU 1211C Compact PLC

Siemens 6ES7211-1AE40-0XB0 belongs to Siemens SIMATIC S7-1200 compact PLC series, positioned as the entry-level economical CPU for small-scale discrete automation. Siemens 6ES7211-1AE40-0XB0 carries integrated digital I/O points and powerful basic motion control functions, becoming the preferred core controller for low-budget small machinery and standalone equipment transformation.

Core Hardware Specifications

Siemens 6ES7211-1AE40-0XB0 runs on 24VDC industrial power supply, allowing input voltage fluctuation within 20.4V to 28.8V for harsh on-site power conditions. Onboard I/O configuration of 6ES7211-1AE40-0XB0 fixes at 6 digital inputs and 4 digital outputs, total 10 integrated points without analog channels. Program memory reaches 50KB, data memory 2MB, supporting standard program storage and data recording for simple logic tasks. The CPU carries one integrated PROFINET port, supporting TCP/IP, ISO-on-TCP, S7 communication and open user communication. Maximum four high-speed counters and four pulse output channels on 6ES7211-1AE40-0XB0 realize basic stepping and servo positioning control without extra expansion modules.

Functional Highlights

Program execution speed of Siemens 6ES7211-1AE40-0XB0 delivers fast scan cycle to guarantee rapid response of small loop logic. Built-in PID closed-loop control blocks enable direct temperature and pressure regulation matched with external transmitters. Password protection and block encryption prevent program tampering, protecting equipment intellectual property for machine manufacturers. Full compatibility with TIA Portal engineering software simplifies offline simulation, online debugging and program uploading of 6ES7211-1AE40-0XB0. Complete fault diagnosis function feeds back short circuit, overload and communication abnormal codes, shortening troubleshooting time on production sites.

Environmental and Installation Conditions

6ES7211-1AE40-0XB0 adopts slim body structure for NS35 standard DIN rail mounting, occupying minimal cabinet internal space. Working temperature ranges from 0°C to 55°C horizontal installation, vertical installation limited to 0°C–40°C to avoid overheating. IP20 protection class restricts usage inside closed control cabinets, avoiding dust and liquid splash impact. Industrial anti-interference circuit design strengthens EMC performance of Siemens 6ES7211-1AE40-0XB0, resisting frequency converter and contactor electromagnetic interference in workshop environments.

Practical Application Advantages

Low cost and small volume make 6ES7211-1AE40-0XB0 highly cost-effective for single-action automation equipment. Integrated pulse output removes additional motion control modules, lowering overall cabinet configuration cost. PROFINET interface supports HMI touch screen connection and upper computer data upload, meeting basic data visualization demands.

Main Application Fields

6ES7211-1AE40-0XB0 widely matches small punching equipment, simple conveying machines, testing jigs, single-station packaging devices, fan and pump switching control and small building ventilation automatic systems. The compact CPU fulfills all logic control requirements of low-point small automation projects.
