Siemens 6ES7211-1BE40-0XB0 SIMATIC S7-1200 CPU 1211C AC/DC/RLY Compact PLC
Product Description
Siemens 6ES7211-1BE40-0XB0 SIMATIC S7-1200 CPU 1211C AC/DC/RLY Compact PLC
Product Description

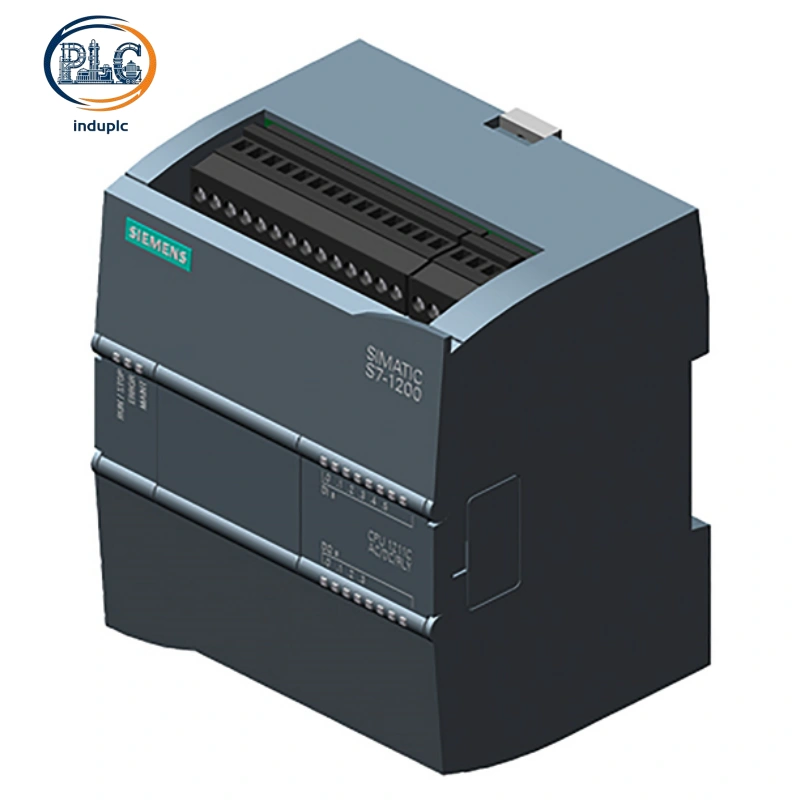

Siemens 6ES7211-1BE40-0XB0 is an entry-level economical PLC controller within the Siemens SIMATIC S7-1200 series. This AC relay output version is oriented to small discrete automation equipment and low-budget single machine renovation projects. Equipped with fixed onboard digital I/O and basic motion control instructions, Siemens 6ES7211-1BE40-0XB0 uses relay contact output to directly drive AC actuators. Stable logic processing performance makes 6ES7211-1BE40-0XB0 a cost-effective core control component for simple sequential logic automation.
Core Hardware & Electrical Parameters
Power Supply and Onboard I/O Configuration
Siemens 6ES7211-1BE40-0XB0 supports 120V~230V AC wide-range voltage input, which can cope with voltage deviation of industrial single-phase power grids. The fixed onboard I/O of 6ES7211-1BE40-0XB0 is set as 6 digital inputs + 4 relay digital outputs, with a total of 10 points and no built-in analog channels. Each relay output can directly carry 2A resistive AC loads, which can be connected to small solenoid valves, indicator lights and intermediate relays without additional transition modules. The hardware storage specification of 6ES7211-1BE40-0XB0 is 50KB program memory and 2MB data memory, which fully meets the program storage and real-time data recording requirements of small logic control loops.
Communication and Motion Control Resources
6ES7211-1BE40-0XB0 is integrated with one independent PROFINET Ethernet port, compatible with S7 protocol, TCP/IP, ISO-on-TCP and open user communication. This interface realizes data interaction between the module and HMI touch screens, upper monitoring hosts and other S7 series PLCs. Four high-speed counters and four pulse output channels are reserved on 6ES7211-1BE40-0XB0, which can complete basic stepping motor and servo closed-loop positioning without adding extra signal expansion boards.
Protection Level and Anti-interference Performance
The whole module is rated IP20 protection grade and can only be installed inside closed industrial control cabinets. The built-in EMC anti-interference circuit effectively shields electromagnetic interference from on-site inverters and contactors, ensuring long-term stable operation of 6ES7211-1BE40-0XB0 in complex workshop electromagnetic environments.
Functional Highlights
- Short program scanning cycle ensures rapid response of interlock logic; built-in PID control blocks directly complete closed-loop regulation of temperature, pressure and flow signals.
- Program password lock and block encryption functions prevent unauthorized copying and modification, protecting the core process technology of equipment manufacturers using 6ES7211-1BE40-0XB0.
- Fully compatible with TIA Portal engineering software, supporting offline simulation, online monitoring and fault code diagnosis of 6ES7211-1BE40-0XB0, greatly shortening on-site maintenance time.
- Relay output has strong overload resistance, low-power AC loads can be directly wired, simplifying the internal wiring layout of control cabinets.
Environmental Adaptability & Structural Installation
6ES7211-1BE40-0XB0 adopts a slim modular structure, which can be quickly clamped on standard NS35 DIN rails and occupies minimal cabinet internal space.
- Horizontal installation operating temperature: 0℃ ~ +55℃
- Vertical installation operating temperature: 0℃ ~ +40℃
The storage temperature ranges from -40℃ to +70℃, adapting to long-term storage and seasonal temperature changes of industrial equipment. The flame-retardant industrial shell has excellent anti-aging and anti-vibration capabilities, supporting 24-hour uninterrupted continuous operation of 6ES7211-1BE40-0XB0.
Industrial Application Advantages
The AC power supply design of Siemens 6ES7211-1BE40-0XB0 is suitable for factory sites without independent 24V DC power distribution, saving the procurement cost of external power supply modules. The integrated pulse motion function cancels additional positioning expansion boards and reduces the overall configuration budget of small automated machinery. PROFINET communication connects with touch screens to realize production data display and parameter modification, meeting basic on-site visualization management needs.
Typical Application Scenarios
6ES7211-1BE40-0XB0 is widely applied to low-point simple automation equipment: small stamping fixtures, single-station packaging machines, short-distance material conveying lines, automatic switching control of fans and water pumps, workshop ventilation logic systems and sequential action control of small testing jigs. 6ES7211-1BE40-0XB0 can fully undertake all logic control tasks of miniaturized discrete automation projects.
