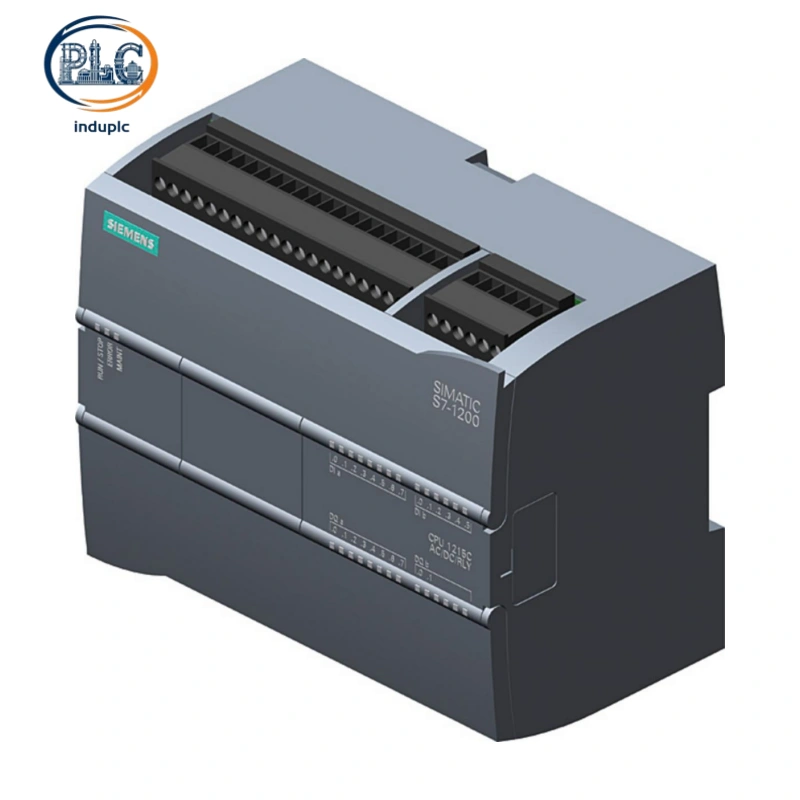

Siemens 6ES7212-1AE40-0XB0

SIMATIC S7-1200 CPU 1212C DC/DC/DC Compact PLC

Product Description

Siemens 6ES7212-1AE40-0XB0 is an upgraded mid-range compact PLC belonging to SIMATIC S7-1200 series. As a DC transistor output type controller, it upgrades onboard I/O quantity and motion control performance compared with entry-level CPU 1211C, suitable for small and medium-sized discrete automation equipment with more signal points and multi-axis positioning demands. Siemens 6ES7212-1AE40-0XB0 adopts 24V DC power supply and high-speed transistor output, which can send stable high-frequency pulse signals to realize closed-loop positioning of servo motors and stepping motors. Reliable program execution ability and expandable hardware structure make 6ES7212-1AE40-0XB0 a cost-effective core control component for small automated production stations and precision testing equipment.

Core Hardware & Electrical Parameters

Power Supply and Onboard I/O Configuration

Siemens 6ES7212-1AE40-0XB0 adopts standard 24V DC industrial power input, with allowable voltage fluctuation range of 20.4V DC to 28.8V DC to adapt to unstable power supply on production sites. Fixed integrated I/O configuration of 6ES7212-1AE40-0XB0 is set as 8 digital inputs + 6 transistor digital outputs + 2 onboard analog inputs, including 14 digital points and 2 analog signal acquisition channels. Transistor output terminals support continuous high-speed pulse transmission, fully meeting high-precision motion control application requirements. 6ES7212-1AE40-0XB0 carries 75KB program memory and 4MB data memory, which can complete storage of complex logic programs and recording of production formula data for medium-complexity control tasks.

Communication and Motion Control Resources

6ES7212-1AE40-0XB0 is equipped with one independent onboard PROFINET Ethernet port, compatible with S7 protocol, TCP/IP, ISO-on-TCP and open user communication. The interface realizes data interaction with HMI touch screens, upper monitoring hosts and other S7 series PLCs, and integrates built-in web server for remote parameter viewing. Six high-speed counters and six independent pulse output channels are reserved on 6ES7212-1AE40-0XB0, which can finish multi-axis stepping and servo positioning without additional motion expansion boards. The module supports external expansion of up to 8 signal modules and 1 signal board, reserving sufficient upgrade space for later equipment renovation.

Protection Grade and Anti-interference Performance

6ES7212-1AE40-0XB0 reaches IP20 protection grade and is only allowed to install inside closed industrial control cabinets. Built-in EMC filter circuit shields electromagnetic interference generated by on-site inverters and contactors, ensuring long-term continuous stable operation of 6ES7212-1AE40-0XB0 under complex workshop electromagnetic environments. The module has passed UL, CE, UKCA, EAC and other global industrial safety certifications.

Functional Highlights

1. Short execution cycle of basic instructions ensures rapid response of multiple groups of interlock logic; built-in PID control blocks directly complete closed-loop constant regulation for temperature, pressure and flow signals collected by onboard analog channels.
2. Multi-layer program encryption and block access restrictions prevent unauthorized program copying and modification, protecting core process technology for machinery manufacturers that apply 6ES7212-1AE40-0XB0.
3. Full compatibility with TIA Portal engineering software supports offline simulation, online variable modification and detailed fault code diagnosis of 6ES7212-1AE40-0XB0, greatly shortening on-site equipment troubleshooting cycle.
4. High-frequency transistor pulse output meets high-precision multi-axis motion control requirements, eliminating procurement cost of extra dedicated motion modules and simplifying internal electrical layout of control cabinets.

Environmental Adaptability & Structural Installation

6ES7212-1AE40-0XB0 adopts slim modular housing for quick buckle installation on standard NS35 DIN rails, occupying minimal internal layout space of electrical cabinets.

• Horizontal installation operating temperature: 0℃ ~ +55℃
• Vertical installation operating temperature: 0℃ ~ +40℃

Storage temperature ranges from -40℃ to +70℃, adapting to long-term equipment storage and seasonal temperature changes in factory workshops. Flame-retardant industrial shell delivers excellent anti-vibration and anti-aging performance, supporting 24-hour uninterrupted long-term operation of 6ES7212-1AE40-0XB0.

Industrial Application Advantages

Increased digital points and 2-channel onboard analog input of Siemens 6ES7212-1AE40-0XB0 satisfy signal collection and closed-loop control demands of equipment with temperature and pressure detection functions. DC transistor output perfectly matches mainstream high-precision servo positioning automation schemes. PROFINET Ethernet interface supports equipment networking and production data upload, realizing basic factory data collection and visual management. Strong expandability of 6ES7212-1AE40-0XB0 reserves function upgrade space for later equipment transformation and improves secondary utilization value of automated machinery.

Typical Application Scenarios

6ES7212-1AE40-0XB0 is widely used in medium-point automation equipment: multi-station automatic assembly fixtures, small packaging production lines, complete material conveying systems, constant temperature closed-loop testing devices, centralized control of fan and water pump groups and positioning control of small manipulators. 6ES7212-1AE40-0XB0 can fully undertake logic interlock, analog signal acquisition and multi-axis motion control work of small-scale discrete automation projects.
