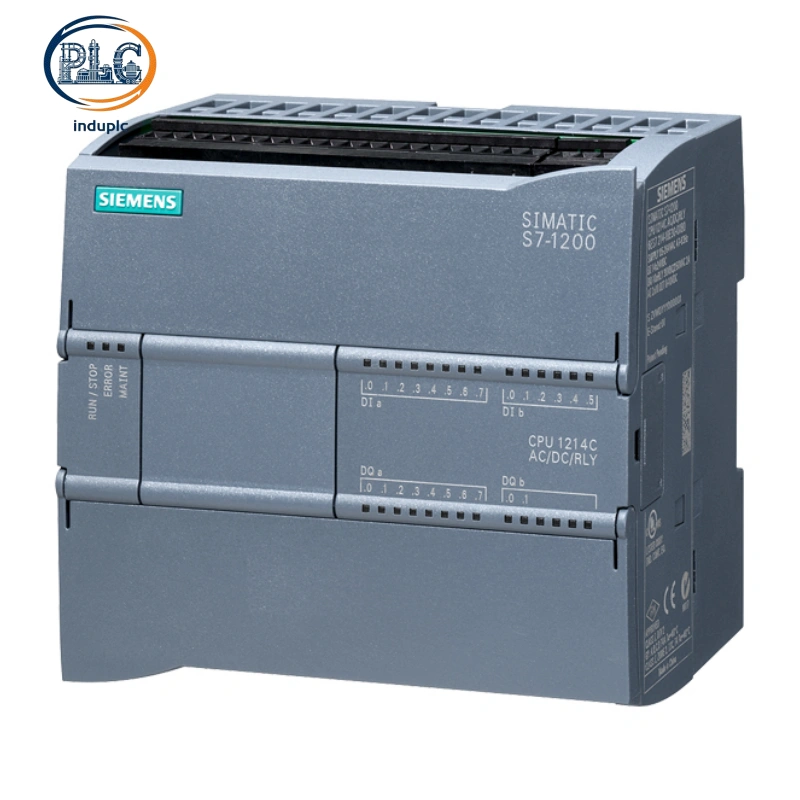

Siemens 6ES7214-1BG40-0XB0 | S7-1200 CPU 1214C AC/DC/RLY Compact PLC

6ES7214-1BG40-0XB0 is a high-performance compact CPU belonging to the Siemens SIMATIC S7-1200 series. This is an AC power supply relay output version of the CPU 1214C, featuring complete onboard I/O configuration and moderate memory capacity. It is mainly used for medium-sized discrete automation equipment that does not require high-frequency pulse output and prefers AC load direct driving. With reliable industrial stability and perfect software compatibility, 6ES7214-1BG40-0XB0 is widely adopted in conventional factory automation and mechanical equipment transformation projects.

Core Hardware and Electrical Parameters

Power Supply and Onboard I/O Configuration

The module supports 120V to 230V AC wide-range industrial power supply input, adapting to conventional single-phase AC power environment in factories without 24V DC power distribution system. The fixed onboard I/O configuration consists of 14 digital inputs and 10 relay digital outputs, with no integrated analog channels. The relay output supports 2A resistive AC load driving, which can directly drive AC solenoid valves, indicator lights and intermediate relays without additional conversion relays. Equipped with 100KB program memory and 8MB data memory, the module fully meets the program operation and data recording requirements of medium-complexity logic control systems.

Communication and Motion Control Resources

6ES7214-1BG40-0XB0 is integrated with one standard PROFINET Ethernet port, supporting S7 communication, TCP/IP, ISO-on-TCP and open user communication protocols. It realizes stable data interaction with HMI touch screens, upper computer monitoring systems and other S7 series PLCs, and supports remote program download, monitoring and fault diagnosis. The module reserves multiple high-speed counter channels for conventional signal counting and frequency acquisition. It supports multi-layer external expansion of signal modules and signal boards, providing sufficient expansion space for equipment function upgrade and signal increase in later stages.

Protection Grade and Anti-interference Performance

The module features IP20 industrial protection grade and is designed for installation inside closed industrial control cabinets. The built-in EMC anti-interference circuit can effectively resist electromagnetic interference generated by on-site inverters, contactors and power equipment. It can maintain long-term stable continuous operation in complex workshop electromagnetic environments and meets international industrial safety certification standards.

Functional Highlights

1. It has a fast program scanning speed, which can quickly respond to multi-group interlock logic and sequential action control. The built-in PID function block can complete closed-loop regulation of external analog signals, realizing stable process control.

2. It supports program password encryption and block-level access protection, which can effectively prevent unauthorized program copying and modification, and protect the core process technology of mechanical equipment manufacturers.

3. Fully compatible with TIA Portal engineering software, it supports offline simulation, online real-time monitoring, parameter modification and complete fault code analysis, greatly improving on-site debugging and maintenance efficiency.

4. Relay output has strong overload resistance and shock resistance, suitable for frequent switch action scenarios of AC loads. It simplifies cabinet wiring structure and reduces auxiliary circuit configuration costs.

Environmental Adaptability and Structural Installation

Adopting compact modular design, 6ES7214-1BG40-0XB0 supports fast clamping installation on standard NS35 DIN rails, saving cabinet layout space and realizing neat and standardized electrical installation. The horizontal installation working temperature ranges from 0℃ to 55℃, and the vertical installation working temperature ranges from 0℃ to 40℃. The storage temperature ranges from -40℃ to 70℃, adapting to long-term equipment storage and seasonal temperature changes in industrial environments.

The industrial flame-retardant and anti-aging shell has excellent mechanical stability and vibration resistance, supporting 24-hour uninterrupted long-term operation of equipment and adapting to continuous working conditions of industrial production lines.

Industrial Application Advantages

The AC wide-voltage power supply design of 6ES7214-1BG40-0XB0 eliminates the need for matching DC power modules, reducing the overall power configuration cost of the control cabinet. Relay output is suitable for conventional AC actuator control, with stronger on-site adaptability than transistor output. Standard PROFINET communication realizes equipment networking and data visualization management. Rich onboard I/O quantity and reliable expansion performance can meet the control requirements of most medium-sized automation equipment, with low failure rate and stable long-term operation.
