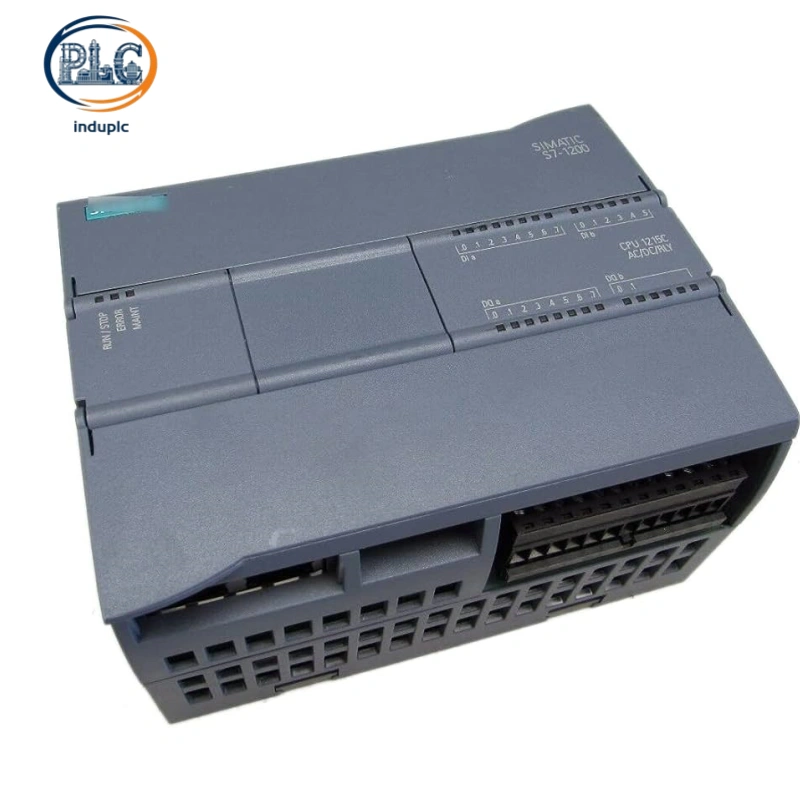

Siemens 6ES7215-1BG40-0XB0 | S7-1200 CPU 1215C AC/DC/RLY Compact PLC

6ES7215-1BG40-0XB0 is a high-end compact CPU controller under the Siemens SIMATIC S7-1200 series. It is the AC power supply relay output version of the CPU 1215C, equipped with dual PROFINET Ethernet ports, complete onboard I/O and integrated analog channels. Different from transistor models, this CPU adopts relay contact output, which is suitable for conventional AC load driving and complex logic control scenarios without high-frequency motion requirements. With large memory capacity, powerful network performance and excellent expandability, 6ES7215-1BG40-0XB0 is widely used in medium and high-end industrial automation equipment that requires stable operation and multi-signal integrated control.

Core Hardware and Electrical Parameters

Power Supply and Onboard I/O Configuration

The module supports 120V to 230V AC wide-range industrial power supply input, adapting to conventional factory single-phase AC power environments and eliminating the need for matching DC power modules. The onboard integrated I/O includes 14 digital inputs, 10 relay digital outputs, 2 analog inputs and 2 analog outputs, realizing integrated digital logic control and analog signal regulation. Each relay output supports 2A resistive AC load, which can directly drive AC solenoid valves, indicator lights and intermediate relays. Equipped with 125KB program memory and 10MB data memory, it supports complex logic programming, multi-group production formula storage and long-term field data recording.

Communication and Motion Control Resources

6ES7215-1BG40-0XB0 is designed with dual independent PROFINET Ethernet ports, supporting S7 communication, TCP/IP, ISO-on-TCP, OPC UA and open user communication protocols. The dual-port structure realizes device cascading, network isolation and simultaneous connection of HMI and upper monitoring system, greatly improving on-site networking flexibility. The module is built with multiple high-speed counter channels for signal frequency detection and counting tasks. It supports full-range expansion of external signal modules and signal boards, providing sufficient expansion space for equipment function upgrade and signal increase.

Protection Grade and Anti-interference Performance

The CPU features IP20 industrial protection grade and is suitable for installation inside closed industrial control cabinets. The built-in high-standard EMC anti-interference circuit can effectively resist electromagnetic interference generated by on-site inverters, contactors and frequency conversion equipment. It can maintain 24-hour continuous and stable operation in complex workshop electromagnetic environments and meets CE, UL, UKCA and other international industrial safety certification standards.

Functional Highlights

1. It has a fast program scanning speed, which can stably process complex multi-group interlock logic and sequential action control. The built-in high-precision PID control block realizes closed-loop constant regulation of temperature, pressure and flow analog signals to ensure stable production process parameters.

2. It supports multi-level program encryption and block access authority management, which can effectively prevent unauthorized copying, tampering and leakage of programs, and protect the core process technology of equipment manufacturers.

3. Fully compatible with TIA Portal engineering software, it supports offline program simulation, online real-time monitoring, parameter modification and comprehensive fault code diagnosis, improving equipment debugging efficiency and reducing later maintenance costs.

4. Relay output has strong overload resistance and shock resistance, suitable for frequent switching of AC loads. Integrated analog input and output channels save external analog modules, simplify cabinet wiring and reduce overall equipment configuration costs.

5. Dual Ethernet port design supports industrial daisy chain connection and network segmentation, meeting the data transmission and intelligent networking requirements of automated production lines.

Environmental Adaptability and Structural Installation

6ES7215-1BG40-0XB0 adopts a compact integrated modular structure, which can be quickly installed and fixed on standard NS35 DIN rails, occupying small cabinet space and realizing standardized electrical layout. The horizontal installation operating temperature ranges from 0℃ to 55℃, and the vertical installation operating temperature ranges from 0℃ to 40℃. The storage temperature ranges from -40℃ to 70℃, adapting to long-term equipment storage and seasonal temperature changes in industrial environments.

The industrial flame-retardant and anti-aging shell has excellent vibration resistance and heat dissipation performance, which can adapt to long-term uninterrupted operation of industrial production equipment and ensure long-term operational stability.

Industrial Application Advantages

The AC wide voltage power supply design of 6ES7215-1BG40-0XB0 adapts to most factory power supply conditions, reducing the configuration cost of DC power supply equipment. Relay output is more suitable for conventional AC actuator control, with stronger on-site anti-interference and overload capability. Rich onboard digital and analog I/O resources meet the integrated control needs of most medium and high-end automation equipment. Dual Ethernet ports improve equipment networking scalability, and large memory supports complex process control programs and multi-batch production data storage.

Typical Application Scenarios

This module is widely used in medium and high-complexity automation equipment and industrial process control projects, including multi-station automatic assembly lines, intelligent packaging and filling equipment, automated sorting and conveying systems, constant temperature and pressure closed-loop control equipment, central control systems of fan and water pump units, and industrial intelligent testing equipment. It is a high-performance and stable core controller for AC load type automation projects.
