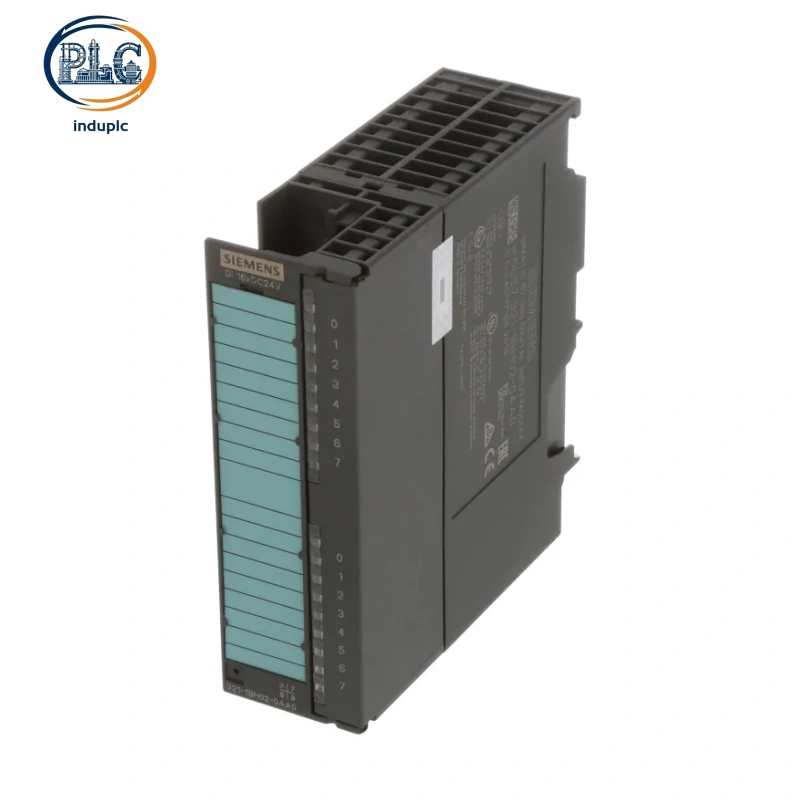

Siemens 6ES7321-1BH02-0AA0 | S7-300 SM321 Digital Input Module

6ES7321-1BH02-0AA0 is a standard isolated digital input module belonging to the Siemens SIMATIC S7-300 series. Modeled as SM321, this module provides 16-channel 24V DC digital signal acquisition with complete electrical isolation for each channel. It is designed for universal industrial signal detection, collecting switch state signals from sensors, proximity switches, buttons and other field devices. With stable signal recognition performance and long-distance transmission capability, it serves as a basic and reliable signal acquisition module for S7-300 PLC automation control systems.

Core Hardware and Electrical Parameters

Input Specification and Electrical Performance

The module supports standard 24V DC industrial signal input, with a permissible voltage fluctuation range of 20.4V DC to 28.8V DC, adapting to complex on-site power supply environments. It is equipped with 16 independent digital input channels, complying with IEC 61131 Type 1 input characteristics. The signal threshold is clearly defined: low level “0” ranges from -30V to +5V, and high level “1” ranges from 13V to 30V, ensuring accurate and stable signal identification. The typical input current for high-level signal is 7mA, with low power consumption and excellent signal anti-interference ability.

Signal Response and Transmission Performance

The module features fixed input delay without parameter configuration. The signal switching delay ranges from 1.2ms to 4.8ms, which fully meets the response speed requirements of conventional industrial logic control. It supports long-distance field wiring, with a maximum transmission distance of 1000 meters for shielded cables and 600 meters for unshielded cables, effectively solving long-distance signal acquisition problems in large-scale factory workshops and production lines. All channels adopt photoelectric isolation design between field signals and backplane bus, which can isolate circuit interference and improve system operation stability.

Power Consumption and Structural Parameters

The module obtains power through the S7-300 backplane bus, with a maximum backplane bus current of 10mA and a typical power consumption of 3.5W, featuring energy-saving and low-heat operation. The overall dimension is 40mm × 125mm × 120mm, and the net weight is about 200g. It adopts standard S7-300 module structure and is equipped with a 20-pin unified connector for convenient and standardized on-site wiring.

Functional Highlights

1. 16-channel high-density digital input design integrates multi-point signal acquisition, which effectively saves cabinet installation space and reduces the overall configuration cost of the control system.

2. Full-channel photoelectric isolation structure eliminates crosstalk between field signals and internal bus circuits, avoiding system failure caused by on-site surge voltage and electromagnetic interference.

3. Standard industrial signal threshold and fixed delay design ensure stable signal recognition, without complex parameter setting, realizing plug-and-play and reducing on-site debugging difficulty.

4. Equipped with independent green status indicator lights for each channel, which can intuitively display the on-off state of field signals, facilitating daily equipment inspection and fault troubleshooting.

5. Compatible with all S7-300 series CPU hosts and expansion racks, supporting flexible system configuration and modular expansion, with strong system compatibility and versatility.

Protection Grade and Environmental Adaptability

The module has an IP20 industrial protection grade, suitable for installation inside closed industrial control cabinets. It adapts to standard industrial operating temperature conditions, with stable performance in conventional factory temperature and humidity environments. The industrial-grade flame-retardant shell has excellent vibration resistance and anti-aging performance, supporting long-term uninterrupted operation of industrial automation systems and adapting to continuous working conditions of production workshops.

Industrial Application Advantages

6ES7321-1BH02-0AA0 features high cost performance and stable operation, which is the most widely used universal digital input module in S7-300 series. The long-distance wiring capability adapts to large-span field signal acquisition scenarios. The fixed non-parameterized delay design avoids program configuration errors and improves system stability. High-density channel design optimizes cabinet layout and simplifies system wiring. It has strong on-site adaptability and low failure rate, effectively reducing later operation and maintenance costs of automation equipment.

Typical Application Scenarios

This module is widely applicable to various conventional industrial automation control scenarios, including workshop production line signal collection, mechanical equipment switch state detection, sensor signal acquisition, button and limit switch signal monitoring, fan and pump equipment state feedback, and safety interlock signal collection of factory automation systems. It is the core basic signal acquisition unit for S7-300 PLC conventional automation renovation and new construction projects.
