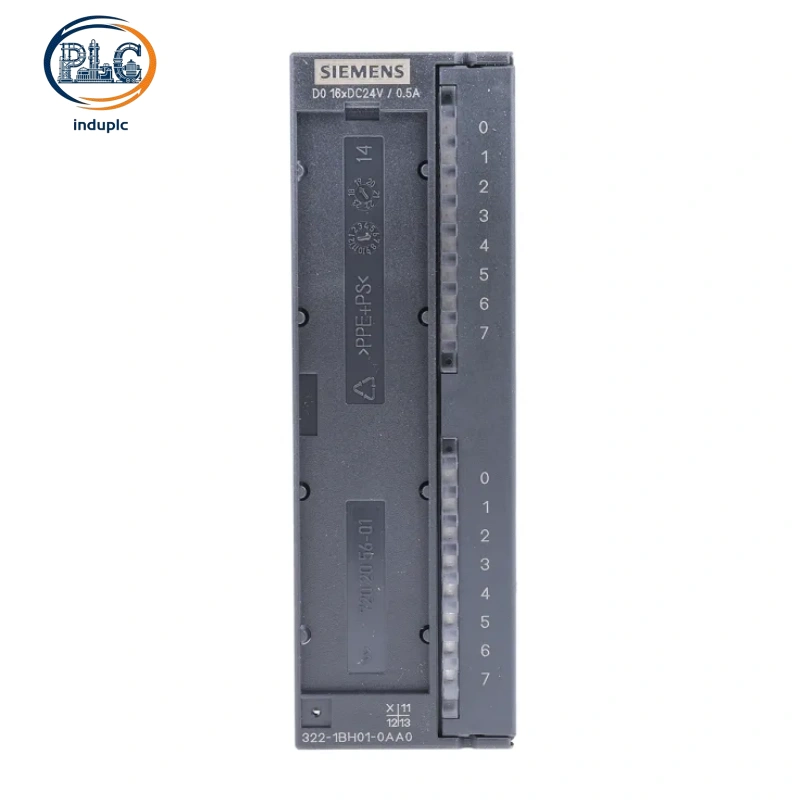

Siemens 6ES7322-1BH01-0AA0 | S7-300 SM322 Digital Output Module

6ES7322-1BH01-0AA0 is a high-density isolated digital output module under the Siemens SIMATIC S7-300 series, belonging to the classic SM322 signal output module. This module features 16-channel 24V DC transistor output with full electrical isolation, designed for driving various industrial DC actuators and switching equipment. With fast response speed, stable load driving capability and short-circuit protection function, it is widely used in conventional industrial automation logic control systems, serving as a reliable signal output and execution drive unit for S7-300 PLC projects.

Core Hardware and Electrical Parameters

Output Specification and Electrical Performance

The module is applicable to 24V DC industrial load voltage, with a stable working voltage range of 20.4V DC to 28.8V DC, adapting to conventional industrial power supply fluctuations. It integrates 16 independent digital output channels with group isolation design, and each single channel supports a rated output current of 0.5A. The module is divided into two output groups, with a maximum group current of 4A and an overall module maximum current of 8A, which can meet the centralized driving demand of multi-point DC loads. The output level strictly complies with industrial standards, ensuring stable and accurate output signal execution.

Signal Response and Switching Performance

This module has extremely fast signal switching response speed. Under resistive load conditions, the output delay from 0 to 1 is 100μs, and the delay from 1 to 0 is 500μs, which fully meets the fast logic action requirements of industrial automatic control. The maximum switching frequency reaches 100Hz for resistive loads and 0.5Hz for inductive loads, adapting to most conventional industrial switching action scenarios. All channels adopt photoelectric isolation design, which effectively isolates internal bus signals from field load circuits and avoids mutual interference.

Power Consumption and Structural Parameters

The module is powered by the S7-300 backplane bus, with a maximum backplane bus current of 80mA and a typical power consumption of 4.9W, featuring low heat generation and stable long-term operation. Adopting standard S7-300 modular structure, the overall dimension is 40mm × 125mm × 120mm, and the net weight is about 190g. It is equipped with a unified 20-pin front connector, supporting standardized screw wiring, which simplifies on-site construction and effectively reduces wiring errors.

Functional Highlights

1. 16-channel high-density transistor output design integrates multi-point load driving functions, greatly reducing the number of modules and cabinet slot occupation for multi-output control projects, and optimizing system configuration costs.

2. Built-in channel independent short-circuit protection and overcurrent protection functions, which can automatically protect the module and field loads when abnormal current occurs, effectively avoiding equipment damage and system failure.

3. Full-channel photoelectric isolation structure suppresses on-site electromagnetic interference and surge impact, ensuring stable output signals in complex industrial electromagnetic environments and improving system anti-interference performance.

4. Each channel is equipped with an independent status indicator light, which intuitively feeds back the real-time output state of the channel, facilitating daily equipment inspection, signal troubleshooting and rapid fault location.

5. Perfectly compatible with all S7-300 series CPU hosts and expansion racks, supporting flexible modular combination and system expansion, with strong versatility in new construction and renovation of traditional industrial automation projects.

Protection Grade and Environmental Adaptability

The module has an IP20 industrial protection grade and is suitable for installation inside closed industrial control cabinets. It adapts to wide-range industrial operating temperature conditions, with stable working performance in long-term continuous production environments. The industrial flame-retardant and anti-aging shell has excellent vibration resistance and mechanical stability, supporting 24-hour uninterrupted stable operation of factory automation equipment.

Industrial Application Advantages

6ES7322-1BH01-0AA0 features high integration and fast response, which can centrally drive multiple DC solenoid valves, indicator lights and small relays. The built-in overcurrent and short-circuit protection greatly improves the safety of field load control. The standard isolated design effectively reduces system interference and improves the stability of automatic logic operation. With low failure rate and convenient maintenance, it can effectively reduce the long-term operation and maintenance cost of automation systems.

Typical Application Scenarios

This module is widely used in various industrial automation DC load control scenarios, including production line actuator driving, mechanical equipment solenoid valve control, equipment operation indicator signal output, fan and water pump auxiliary circuit switching control, automation fixture sequential action control, and signal output execution of traditional factory renovation projects. It is a universal and cost-effective core output module for S7-300 PLC systems.
