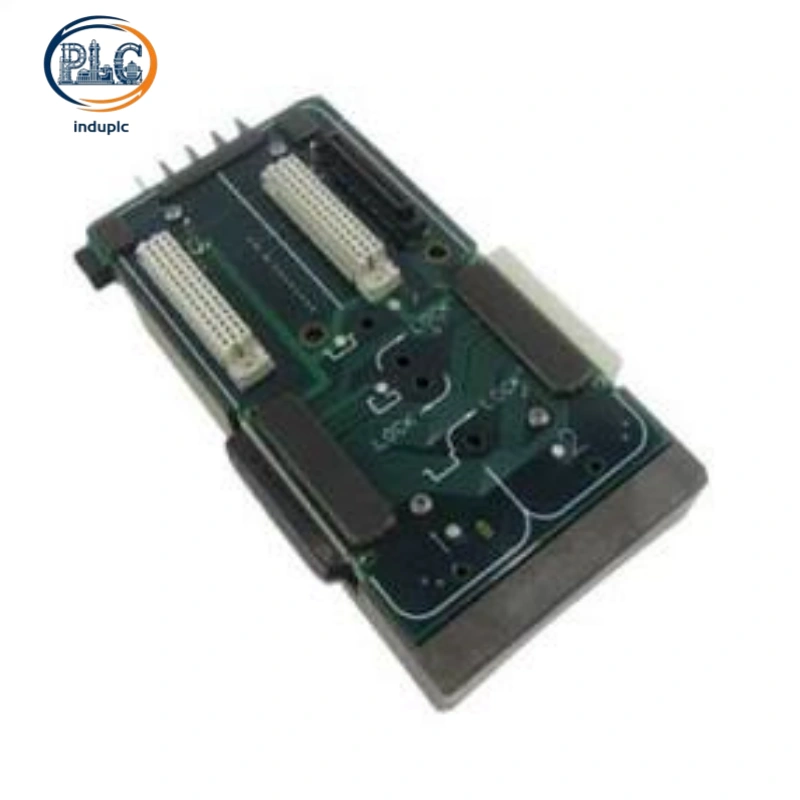

Emerson KJ4001X1-BA2 DeltaV 4-Channel HART Analog Input Module

1. Product Overview

The KJ4001X1-BA2 is a compact high-performance analog input module tailored for Emerson DeltaV distributed control systems, designed for accurate acquisition of standard industrial process signals. Optimized for medium and small-scale process monitoring loops, this 4-channel AI module supports universal 4-20mA signal collection and built-in HART protocol communication, enabling dual functions of real-time data sampling and intelligent instrument diagnosis. Different from high-density multi-channel cards, it adopts a refined single-slot layout with enhanced circuit anti-interference design, focusing on stable and high-precision signal capture for key process loops. Widely deployed in chemical, power, water treatment and oil & gas automation systems, it serves as a reliable core signal acquisition unit for standard DeltaV I/O cabinets.

2. Core Product Features

1. Compact 4-channel Precision Signal Acquisition Designed with four independent analog input channels, the module delivers targeted and high-stability signal collection for key process parameters including pressure, flow, liquid level and temperature. The streamlined channel layout reduces internal signal crosstalk, ensuring each sampling point maintains consistent precision and response efficiency, perfectly matching small-batch high-precision loop monitoring requirements.

2. Built-in HART Protocol Two-way Communication Native HART compatibility supports seamless connection with smart 4-20mA transmitters. Field technicians can remotely view instrument operating status, check device health data, adjust configuration parameters and troubleshoot loop faults without on-site physical operation. This intelligent interaction greatly improves maintenance efficiency and reduces inspection risks in industrial hazardous areas.

3. Optimized EMI Shielding & Anti-interference Performance Adopting enhanced industrial shielding circuit and multi-stage signal filtering technology, the module effectively suppresses high-frequency noise, voltage surge and electromagnetic interference generated by on-site inverters, motors and high-power equipment. It maintains jitter-free and drift-free signal output in complex electromagnetic environments, ensuring long-term stable operation of critical control loops.

4. Industrial-grade Wide Environmental Adaptability Selected high-reliability industrial components support stable operation under wide temperature fluctuation and high-humidity non-condensing conditions. The module complies with industrial anti-corrosion and vibration resistance standards, adapting to harsh installation environments such as on-site skids, indoor control rooms and semi-outdoor cabinet stations for long-term 24/7 continuous operation.

5. Real-time Loop Self-diagnosis Protection Integrated intelligent diagnosis function automatically monitors channel open circuit, short circuit, signal overload and abnormal communication faults. All abnormal information is uploaded to the DeltaV system in real time for alarm reminder and data logging, supporting rapid fault location and predictive maintenance to avoid process monitoring failure.

3. Technical Specifications

• Model: KJ4001X1-BA2

• Product Type: 4-Channel HART Analog Input (AI) Module

• Compatible System: Emerson DeltaV DCS System

• Input Signal Range: Standard 4~20mA DC analog signal

• Communication Protocol: HART protocol compatible

• Sampling Resolution: High-precision industrial ADC conversion

• Measurement Accuracy: Industrial high-stability precision grade

• Isolation Design: Field-to-backplane electrical isolation

• Operating Temperature: -40℃ ~ +70℃

• Working Humidity: 5%~95% RH, Non-condensing

• Environmental Grade: ISA G3 industrial anti-pollution standard

• Built-in Function: Loop fault diagnosis, signal filtering processing

• Protection Grade: IP20 (indoor cabinet installation only)

• Installation Method: Standard DeltaV DIN rail mounting

• Industrial Certification: CE, UL safety certified

4. Industrial Application Scenarios

1. Key process parameter signal acquisition for medium and small petrochemical reaction and refining units

2. Precision monitoring of pressure, flow and liquid level loops for oil and gas station process systems

3. Auxiliary equipment parameter collection and signal stabilization for power plant thermal control systems

4. Key loop signal detection and intelligent instrument management for environmental protection water treatment projects

5. DeltaV system upgrading, local I/O replacement and high-precision loop expansion for industrial automation renovation
