EPRO MMS6110 Dual Channel Shaft Vibration Monitor | Probes, Cables & Preamplifier Matching

Meta Description: EPRO MMS6110 dual-channel shaft vibration monitor supports PR642X eddy current probes, shielded extension cables and CON series preamplifiers, delivering high-precision non-contact rotor vibration monitoring for turbines and compressors.

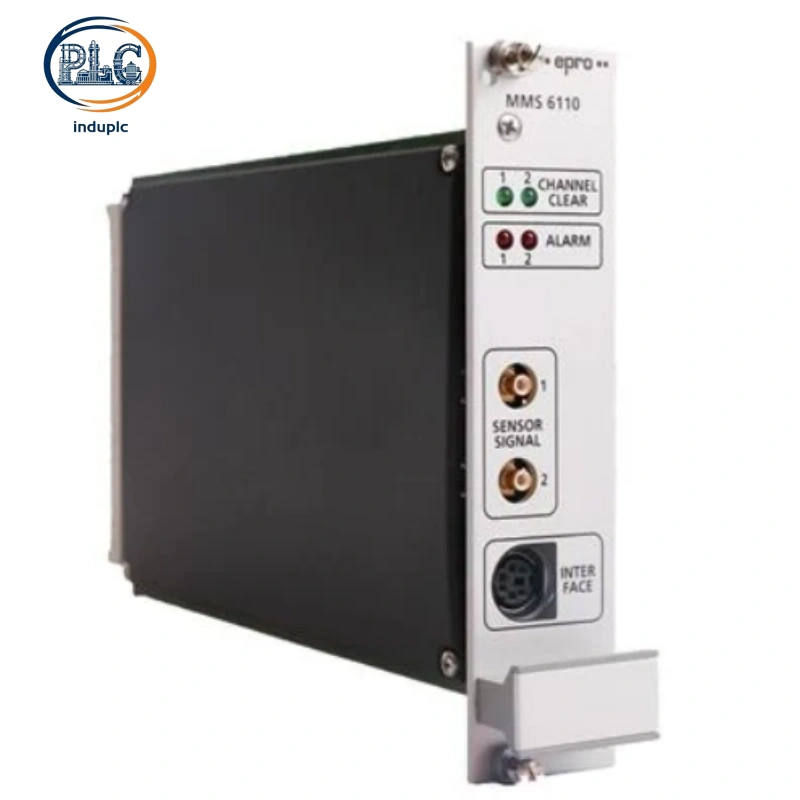

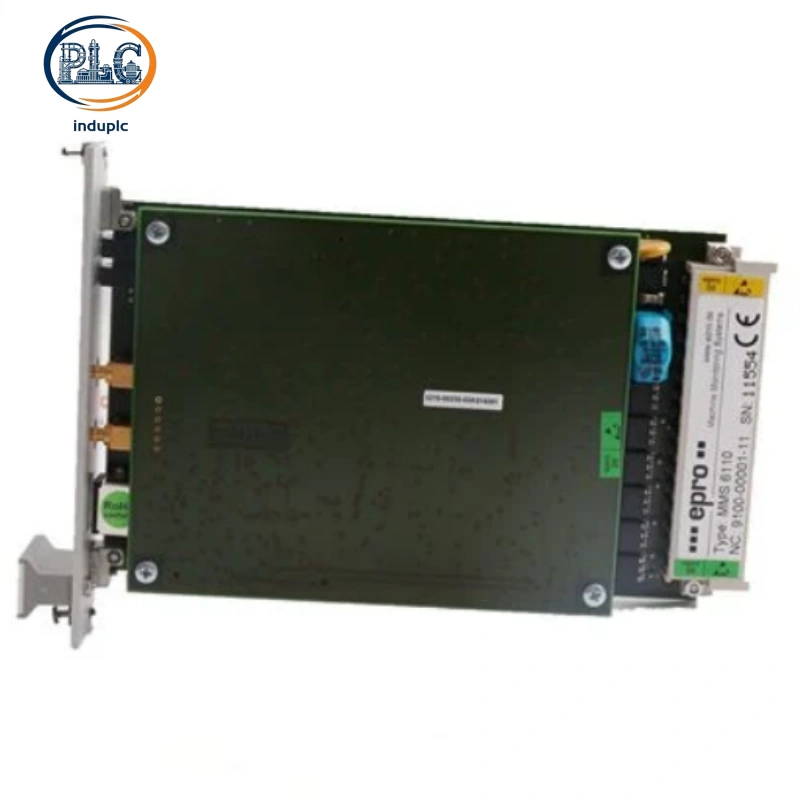

As a core dual-channel vibration monitoring module in EPRO MMS6000 series, the MMS6110 is specially developed for non-contact real-time supervision of radial shaft vibration and rotor displacement on rotating machinery. Different from speed protection modules, this unit focuses on continuous vibration trend tracking and abnormal amplitude alarm, serving as the key hardware for mechanical condition monitoring and predictive maintenance. It works stably with matched eddy current probe sets, dedicated shielded cables and original preamplifiers, ensuring long-term accurate vibration data acquisition in harsh industrial operation environments.

1. Matched Eddy Current Probe Performance & Structural Traits

The MMS6110 module is fully compatible with EPRO PR6422, PR6423 and PR6424 series eddy current probes, customized for vibration amplitude micro-change capture. Adopting integrated stainless steel probe body and anti-fatigue structural design, the probes resist long-term mechanical vibration and bearing oil corrosion inside equipment casings.

With stable linear measuring range and ultra-high displacement resolution, the probes can identify tiny vibration fluctuations that conventional sensors cannot capture. The standardized metal induction structure matches rotor journal characteristics perfectly, effectively reducing measurement deviation caused by metal permeability difference. Featuring wide temperature adaptability from -40℃ to 120℃, it maintains zero drift stability during long-cycle equipment operation, avoiding false vibration alarms caused by ambient temperature changes. Multiple thread mounting specifications adapt to various bearing box installation spaces for new construction and retrofit projects.

2. Dedicated Extension Cable Material & Transmission Advantages

Signal stability is the core guarantee of MMS6110 vibration monitoring accuracy, and the matched dedicated extension cable provides lossless signal transmission support. The cable adopts high-purity oxygen-free copper core, with low impedance characteristics that effectively suppress high-frequency signal attenuation during long-distance transmission, ensuring vibration waveform integrity without distortion.

The outer insulation layer uses high-performance PTFE material, with outstanding high-temperature resistance, oil resistance and chemical corrosion resistance, adapting to complex on-site environments with equipment oil leakage and high ambient temperature. Built-in double-layer shielding structure of tinned copper braid and aluminum foil fully isolates electromagnetic interference from frequency converters and high-power equipment, eliminating data jitter and waveform disorder of vibration signals. Standard 5m/9m lengths and customizable size options, plus LEMO anti-loose plug and terminal wiring dual forms, meet diversified on-site wiring and maintenance demands.

3. Preamplifier Matching & On-site Application Classification

The MMS6110 module cannot directly process weak eddy current signals and needs supporting CON series preamplifiers for signal excitation, demodulation and analog conversion. Different preamplifier models correspond to differentiated application scenarios, realizing targeted matching for various working conditions:

• CON021: Standard cabinet-type preamplifier with IP20 protection, suitable for indoor centralized control rooms. It outputs standard linear voltage signals that perfectly fit MMS6110 dual-channel input range, with built-in reverse connection and short-circuit protection, being the most widely used cost-effective matching solution.

• CON011: Field waterproof and explosion-proof upgraded model with IP67 protection grade. It can be installed directly on on-site bearing equipment, matching safety barriers to adapt to hazardous areas such as petrochemical explosion-proof zones and offshore platforms.

• CON031: Terminal wiring type preamplifier, applicable to large-scale MMS6000 system renovation projects with unified terminal wiring standards, consistent with CON021 core performance.

Dual independent signal loops are configured for MMS6110 dual channels, supporting synchronous vibration data collection of two measuring points, realizing multi-mode monitoring such as single-channel independent detection and dual-channel combined comparison.

4. Core Product Selling Points & Practical Values

Breaking single-function monitoring limitations, EPRO MMS6110 integrates high precision, strong compatibility and intelligent diagnosis, bringing practical operational value for industrial mechanical monitoring:

• Dual-channel Independent Precision Monitoring: Two fully independent acquisition channels support simultaneous vibration detection of different equipment measuring points, with measurement accuracy higher than ±1%FS, accurately capturing early mechanical abnormal vibration and avoiding major equipment failure risks.

• Diversified Working Modes: Supports multiple monitoring modes including single-point monitoring, Smax and Sppmax composite calculation, flexible adapting to vibration monitoring demands of different rotating equipment and improving data analysis comprehensiveness.

• Intelligent Fault Self-diagnosis: Built-in real-time self-check function automatically identifies probe disconnection, cable damage and preamplifier abnormal operation, timely uploading fault information to remind maintenance, greatly reducing equipment hidden dangers and downtime loss.

• Excellent Environmental Adaptability: Wide working temperature range adapts to indoor and outdoor industrial environments, with anti-vibration and anti-interference capabilities, supporting 24/7 uninterrupted stable operation of mechanical monitoring loops.

• Seamless System Compatibility: Standard 19-inch rack installation fits MMS6000 series system cabinets perfectly, compatible with mainstream DCS systems, convenient for system integration, renovation and capacity expansion.

5. Industrial Application Scenarios

EPRO MMS6110 is widely used for condition monitoring of core rotating equipment in high-standard industrial scenarios:

• Radial vibration real-time monitoring and trend analysis of steam turbines and gas turbines in thermal power plants

• Abnormal vibration early warning and equipment health supervision of petrochemical centrifugal compressors and large blowers

• Precision mechanical condition monitoring of rotating equipment on offshore oil and gas platforms

• Vibration loop upgrading and intelligent transformation of old industrial mechanical monitoring systems
