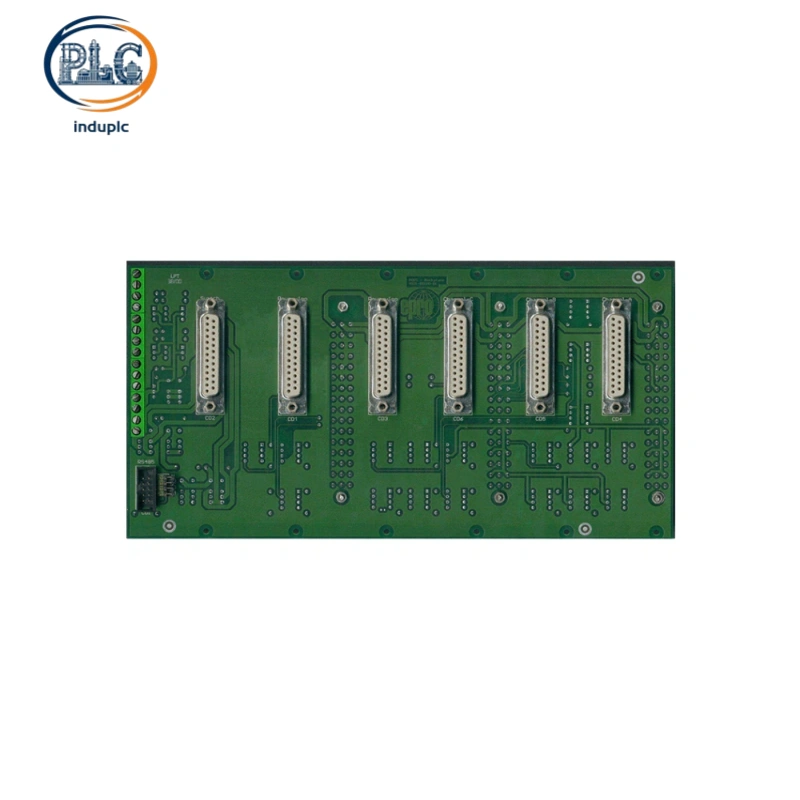

EPRO MMS6351 Overspeed Protection System Backplane Board

The EPRO MMS6351 is a dedicated system backplane and logic integration board for the MMS6000 TSI series DOPS overspeed protection system, serving as the core carrier for three-out-of-two redundant speed protection logic. Unlike the independent MMS6350 speed acquisition module, this backplane realizes centralized signal convergence, voting logic calculation and unified power distribution for three sets of MMS6350 modules. It builds a complete high-safety overspeed protection architecture for rotating machinery, widely deployed in turbine and compressor safety interlock loops that require SIL3-level redundant protection standards.

1. System Matching & Logical Operation Features

MMS6351 exclusively supports DOPS system configuration with three MMS6350 speed monitor modules. It collects independent speed data and alarm signals from three channels in real time, and executes professional 2oo3 voting logic judgment. This redundant mechanism effectively eliminates mis-trips and protection failures caused by single module or single channel faults, greatly improving the overall safety and stability of the overspeed protection system.

The backplane integrates dedicated logic processing circuits, which can independently complete signal comparison, fault discrimination and trip command output without additional auxiliary modules. It supports on-site mode switching and threshold synchronization configuration, ensuring consistent operating parameters of the three-group speed acquisition units and avoiding logic conflicts during system linkage operation.

2. Signal Transmission & Wiring Stability

Matched with standard industrial shielded signal cables, MMS6351 realizes lossless data interaction with MMS6350 modules. The built-in unified signal filtering and anti-interference circuit suppresses cabinet electromagnetic crosstalk and power fluctuation interference, ensuring accurate transmission and stable identification of speed pulse data and alarm status signals.

Adopting standardized backplane bus docking design, it avoids loose wiring and signal attenuation caused by traditional terminal wiring. The integrated wiring structure simplifies on-site cabinet layout, reduces manual wiring errors, and lowers daily system maintenance and fault troubleshooting difficulty.

3. Power Supply & Hardware Reliability Design

MMS6351 supports dual redundant power supply input, with built-in power isolation and anti-surge protection circuits. It can automatically switch power supply paths in case of single power failure, ensuring continuous and uninterrupted operation of the entire DOPS overspeed system. The wide voltage power adaptation design resists industrial grid voltage fluctuations and instantaneous surge impacts.

The whole board adopts industrial-grade PCB and high-temperature resistant electronic components, with conformal coating anti-corrosion treatment. It adapts to long-term operation in high-temperature, humid and vibration-intensive industrial cabinet environments, supporting 24/7 stable operation of key safety protection loops.

4. Core Product Selling Points & Industrial Values

• 2oo3 Redundant Voting Logic: Realizes three-channel signal redundant judgment, effectively avoiding single-point failure risks, fully meeting IEC 61508 SIL3 safety integrity level requirements for key rotating machinery protection.

• Integrated System Integration: Unifies power distribution, signal convergence and logic judgment for three MMS6350 modules, simplifying system structure and saving cabinet space compared with discrete configuration schemes.

• Online Replaceable Design: Supports hot-swap maintenance without system shutdown, allowing engineers to replace or troubleshoot single module without affecting the overall operation of the overspeed protection system.

• Built-in Full-function Self-diagnosis: Automatically detects backplane circuit faults, module communication abnormalities and power supply anomalies, outputs accurate fault codes for rapid positioning, reducing system downtime and maintenance costs.

• Excellent System Compatibility: Perfectly compatible with full series of MMS6350 modules and MMS6000 TSI system cabinets, seamlessly docking with mainstream DCS and SIS systems, suitable for new project construction and old system safety upgrade.

5. Industrial Application Scenarios

• SIL3-level redundant overspeed protection system construction for thermal power plant steam turbines and gas turbines

• High-safety DOPS system configuration for petrochemical large centrifugal compressors and key rotating equipment

• Safety loop upgrading and redundant transformation of old mechanical overspeed protection devices in industrial enterprises

• Overspeed safety monitoring system deployment for rotating machinery on offshore oil and gas platforms and energy chemical projects
