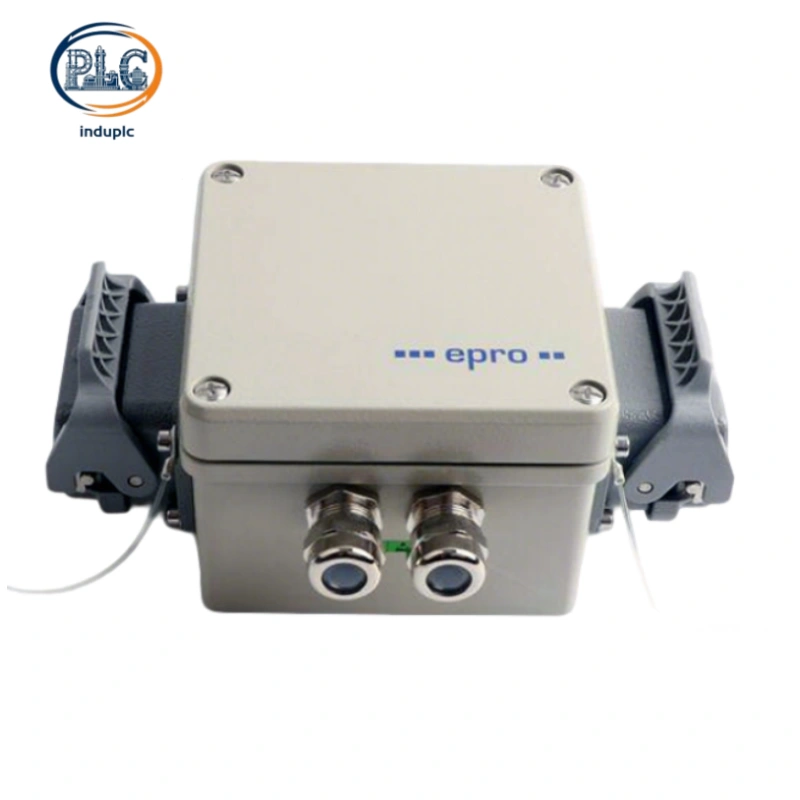

EPRO MMS3120/022-000 Dual Channel Bearing Vibration Transmitter

The EPRO MMS3120/022-000 is a robust dual-channel bearing vibration transmitter from the premium MMS3000 machinery condition monitoring series. Adopting field-mounted integrated design, this unit abandons traditional rack-mounted installation limits, enabling direct on-site deployment on rotating equipment. It independently completes eddy current vibration signal acquisition, precise data calculation and standard industrial signal output, focusing on real-time bearing vibration monitoring and mechanical health diagnosis for large turbomachinery. Widely deployed in power generation, petrochemical and energy industries, it delivers reliable vibration data for equipment trend analysis, fault early warning and standardized predictive maintenance.

1. Sensor Matching & Signal Acquisition Performance

MMS3120/022-000 is fully compatible with original EPRO eddy current sensors, supporting high-sensitivity non-contact vibration sampling. It can capture micro vibration amplitude changes, frequency deviation and subtle waveform variations that ordinary transmitters fail to identify, effectively reflecting early mechanical defects such as bearing fatigue and minor rotor unbalance.

Built-in multi-stage filtering and waveform shaping circuits suppress on-site high-frequency clutter, spike interference and electromagnetic crosstalk from inverters and high-power equipment. It ensures distortion-free and stable signal collection in humid, dusty and vibration-intensive industrial environments, eliminating data jitter and monitoring deviation.

2. Power Supply System & Environmental Adaptability

This field vibration transmitter features a high-stability power supply structure, supporting wide-range AC 100–240V mains input and 24VDC dual redundant power supply mode. Built-in surge, over-current and reverse connection protection effectively resists industrial grid voltage fluctuation and instantaneous power impact, avoiding monitoring loop interruption caused by power anomalies.

Constructed with industrial-grade electronic components and full conformal coating protection, the module delivers outstanding environmental adaptability. It operates continuously and stably within -20℃ to +60℃, with excellent dustproof, oil-proof and moisture-proof performance, fully adapting to long-term unattended field operation of industrial equipment.

3. Multi-mode Signal Output & System Docking

Designed with dual independent output channels to meet diverse industrial system access requirements. Each channel supports standard 4–20mA and 0–4mA analog current output, which can be directly connected to DCS, PLC and upper monitoring systems for real-time data uploading and remote display. In addition, it provides buffered 2–10V voltage dynamic signals, supporting professional secondary vibration waveform analysis and fault diagnosis.

The output signals feature high linearity and ultra-low temperature drift, ensuring real-time synchronous transmission of on-site vibration changes. It realizes seamless linkage between field monitoring points and central control room data platforms, simplifying system integration and debugging procedures.

4. Core Product Advantages & Practical Values

• Compact Field Integrated Structure: Different from rack-type TSI modules, it supports direct installation on bearing housings and equipment bases, saving cabinet space and simplifying on-site wiring layout and later maintenance.

• Dual-channel Independent Synchronous Monitoring: Two completely independent acquisition channels support simultaneous vibration detection of two measuring points, improving monitoring coverage and efficiency for multi-point mechanical equipment.

• High-precision Early Fault Identification: Ultra-high sampling resolution captures tiny abnormal vibration changes in the early stage of equipment failure, realizing early warning of bearing wear, loose components and rotor imbalance faults, reducing unplanned shutdown losses.

• Excellent Industrial Protection Capability: Adopts high-level field protection design, resisting oil pollution, dust erosion and high humidity, suitable for harsh working conditions of chemical plants, power workshops and offshore platforms.

• High Compatibility & Easy Debugging: Standard industrial signal output matches all mainstream automation systems without additional conversion modules. Equipped with built-in self-diagnosis function, it automatically locates sensor faults, signal interruption and circuit abnormalities.

• Stable Long-term Operation: Optimized anti-interference circuit and industrial component configuration ensure 24/7 stable operation, adapting to long-cycle continuous production requirements of industrial enterprises.

5. Industrial Application Scenarios

• Field vibration monitoring and real-time health assessment of thermal power plant steam turbines and generator sets

• Bearing condition monitoring and abnormal vibration early warning for petrochemical centrifugal compressors and large industrial blowers

• Mechanical vibration supervision and fault trend tracking of key rotating equipment on offshore oil and gas platforms

• Performance upgrading and precision transformation of traditional vibration monitoring systems for industrial rotating machinery
