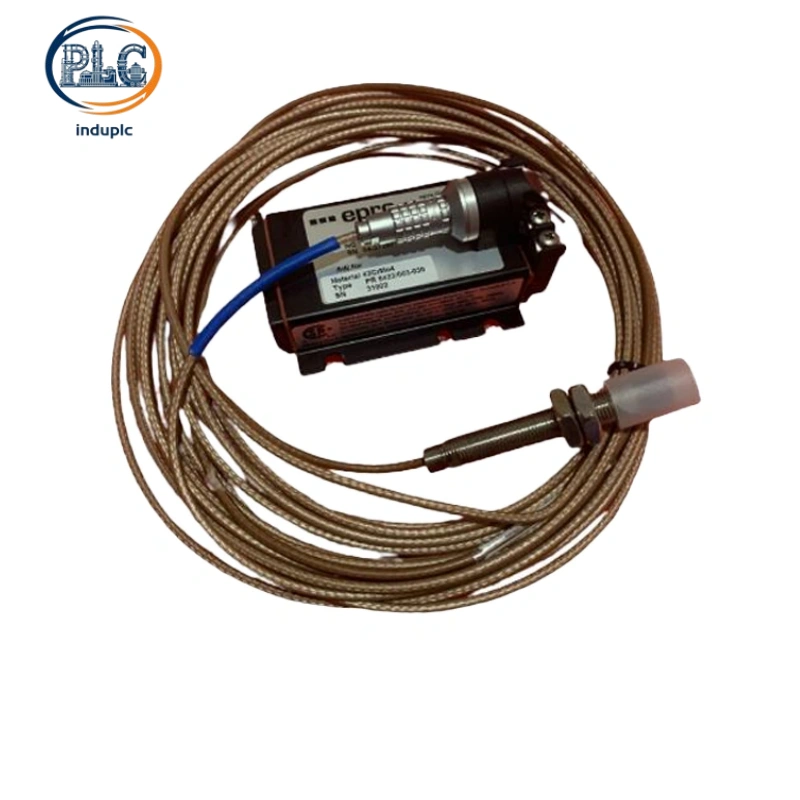

EPRO PR6423/00B-030 Eddy Current Vibration Sensor Probe

The EPRO PR6423/00B-030 is a compact high-precision eddy current probe tailored for turbomachinery condition monitoring, belonging to the classic PR6423 sensor series. Designed for non-contact dynamic displacement and vibration measurement, this sensor focuses on micro-amplitude vibration capture of rotating shafts, widely matched with EPRO CON series preamplifiers and MMS6000 TSI system modules. With fixed standard range, stable linearity and compact threaded structure, it is the mainstream general-purpose probe for routine vibration and position monitoring of turbines, compressors and blowers in power and petrochemical industries.

1. Probe Structure & Mechanical Characteristics

PR6423/00B-030 adopts integrated one-piece stainless steel probe body with anti-corrosion and anti-oxidation surface treatment, adapting to long-term working in bearing box oil mist and humid industrial environments. The standard threaded structure ensures precise locking installation, effectively resisting continuous mechanical vibration and slight impact of rotating equipment without loosening or displacement.

This model features a standardized initial installation air gap of 0.5mm and a full linear measurement range of 2mm, perfectly matching conventional shaft vibration monitoring stroke requirements. The compact probe head design is suitable for narrow installation spaces of old equipment bearing housings, with strong on-site adaptability and no need for structural modification during replacement and renovation.

2. Core Electrical & Measuring Performance

Built with high-stability inductance coil and precision winding process, the sensor delivers highly linear signal output with full-scale linear error strictly controlled within ±1% FS. It can accurately capture tiny shaft vibration, radial displacement and eccentricity changes, providing reliable original data for equipment fault early warning and trend analysis.

Supporting wide voltage working range of DC 5V to 24V, the probe maintains stable induction performance under industrial power supply fluctuation. The ultra-fast response time ≤5ms ensures real-time synchronous sampling of high-speed rotating equipment vibration changes, avoiding signal lag and data distortion during dynamic operation. It features consistent sensitivity and excellent repeatability after long-term continuous operation, effectively reducing periodic calibration frequency.

3. Matching Cable & Transmission Stability

Matched with EPRO original high-shielded extension cables, PR6423/00B-030 realizes lossless transmission of high-frequency eddy current signals. The cable adopts oxygen-free copper conductor and PTFE high-temperature insulation layer, with excellent oil resistance, high temperature resistance and anti-aging performance.

Double-layer shielding structure effectively isolates on-site electromagnetic interference from frequency converters and high-power equipment, ensuring complete and undistorted vibration waveform transmission. Standard industrial length specifications and stable impedance matching design eliminate signal attenuation and jitter during long-distance transmission, guaranteeing long-term stable operation of monitoring loops.

4. Preamplifier & System Matching Scheme

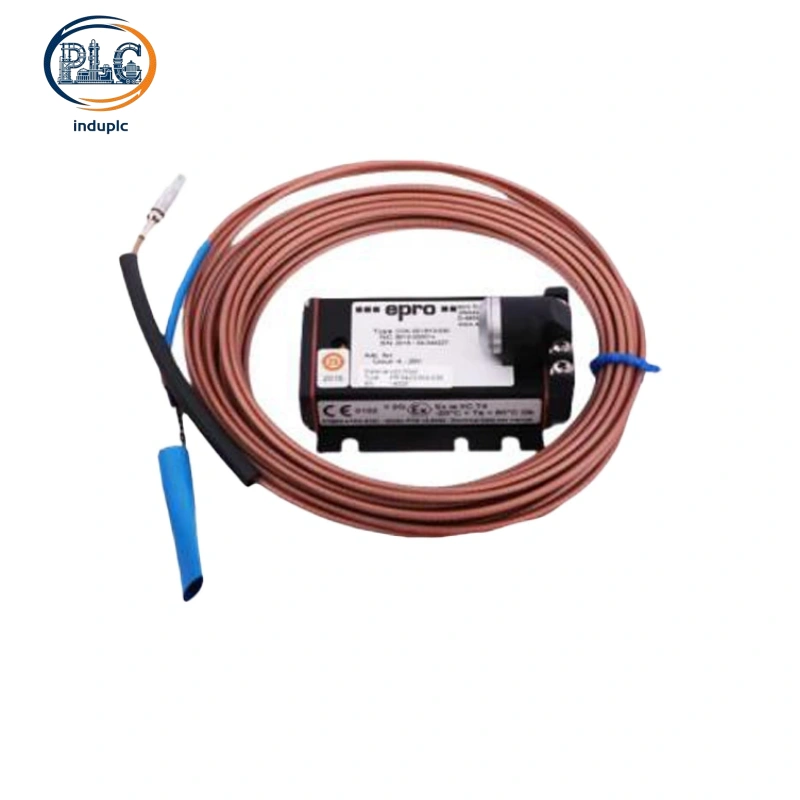

PR6423/00B-030 must work with EPRO original CON series preamplifiers to complete signal excitation, demodulation and analog conversion, realizing complete eddy current monitoring loop:

• CON021: Standard cabinet-mounted preamplifier, the most common matching solution for conventional vibration monitoring. It outputs stable linear voltage signals, perfectly compatible with MMS6110, MMS6250 and other TSI monitoring modules, suitable for indoor control room deployment.

• CON011: IP67 waterproof and explosion-proof preamplifier, applicable to field hazardous areas such as refineries and offshore platforms, supporting direct on-site installation near bearing boxes.

• CON031: Terminal wiring type preamplifier, suitable for unified wiring transformation and batch replacement of old MMS6000 system monitoring loops.

5. Core Product Selling Points & Industrial Advantages

• Stable Standard Linear Measurement: Fixed 2mm linear range and ±1% high precision meet most conventional shaft vibration and displacement monitoring demands, with stable data output and low failure rate.

• Strong Harsh Environment Adaptability: Works stably in -20℃ to +70℃ wide temperature range, resistant to oil pollution, dust and mechanical vibration, adapting to 24/7 long-term unattended operation of industrial equipment.

• High Compatibility & Versatility: Universal matching with full range of MMS6000 TSI system modules and CON series preamplifiers, suitable for new project configuration and old sensor replacement and renovation.

• Fast Dynamic Response: Millisecond-level rapid response ensures real-time capture of dynamic vibration changes of high-speed rotating machinery, improving the timeliness of equipment fault judgment.

• Low Maintenance Cost: Industrial-grade durable structure and stable electrical performance reduce daily maintenance and calibration workload, lowering long-term operation costs of monitoring systems.

6. Industrial Application Scenarios

• Shaft radial vibration and displacement monitoring of steam turbines and gas turbines in thermal power plants

• Dynamic condition monitoring and fault early warning of petrochemical centrifugal compressors and large industrial blowers

• Conventional vibration monitoring and data acquisition of rotating equipment on offshore oil and gas platforms

• Batch replacement and performance stability upgrade of old eddy current sensor monitoring loops
