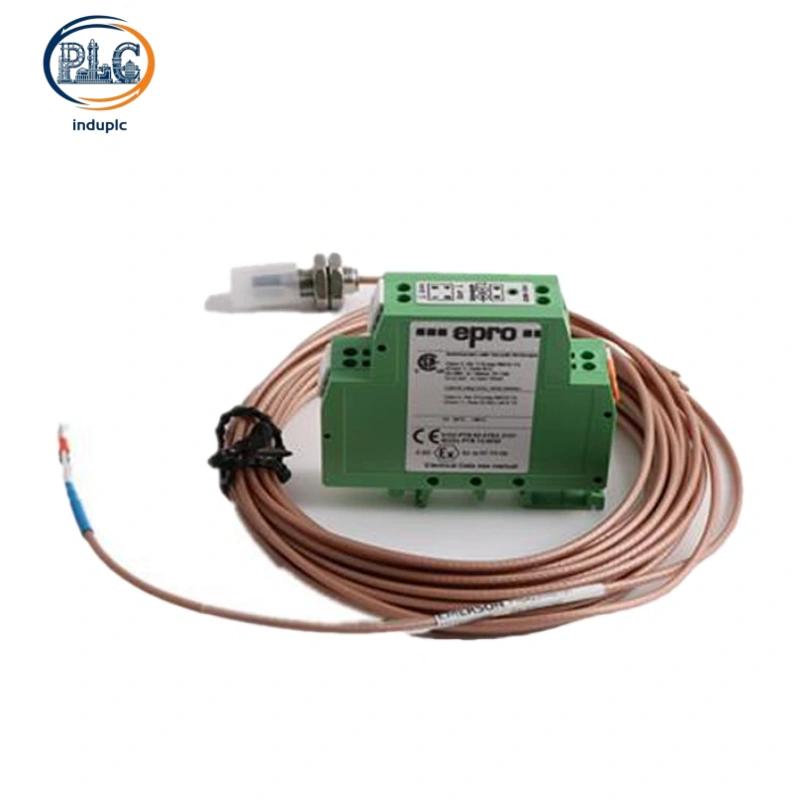

EPRO PR6423/000-131 Armored Eddy Current Vibration Probe

The EPRO PR6423/000-131 is a high-precision armored eddy current probe optimized on the basis of standard PR6423 series sensors. Featuring built-in metal armored cable structure and upgraded precision calibration, this model excels in anti-stretching, anti-squeezing and anti-damage performance compared with ordinary rigid probes. It is specially designed for harsh industrial sites with complex mechanical extrusion and sharp friction risks, perfectly matched with CON series preamplifiers and MMS6000 TSI system modules. Widely used for high-stability shaft vibration, radial displacement and eccentricity monitoring of turbines, compressors and large rotating machinery, it provides ultra-reliable sensing guarantee for key equipment safety loops.

1. Armored Structural Design & Installation Advantages

PR6423/000-131 adopts integrated stainless steel probe body and professional oil-corrosion resistant passivation treatment, adapting to long-term operation in bearing box oil mist, high-temperature and humid environments. The core upgrade is the built-in full-armored cable protection structure, which effectively resists external extrusion, sharp scratch and tensile damage that ordinary ordinary non-armored cables cannot withstand.

It retains industry-standard 8mm probe head diameter and universal M10×1 thread specification, supporting unified installation gap setting and plug-and-play replacement of conventional PR6423 probes. No on-site structural modification or parameter recalibration is required during equipment maintenance and system renovation, with excellent field interchangeability and installation compatibility.

2. High-precision Measurement & Electrical Performance

This armored sensor inherits the classic 2mm linear measurement range of the PR6423 series, with factory precision calibration using standard 4140 steel. The full-scale linear error is strictly controlled within ±0.25% FS, and the repeatability reaches ±0.1%, far exceeding the accuracy level of standard probes. It can capture ultra-micro vibration and tiny shaft floating changes of high-speed rotating equipment, supporting high-precision trend analysis and early fault warning.

With a DC-20kHz wide frequency response range, it fully covers full working conditions of equipment from low-speed turning to rated high-speed operation. The wide working temperature range of -35℃ to +180℃ ensures stable output without zero drift under extreme temperature changes, maintaining long-term consistent measurement accuracy and reducing frequent calibration workload.

3. Armored Cable Transmission & Anti-interference Performance

Different from ordinary rigid cables, PR6423/000-131 adopts multi-layer armored protective cable structure. The internal oxygen-free copper core and high-temperature PTFE insulation layer ensure low signal loss, while the outer metal armor layer provides mechanical anti-collision and anti-breakage protection. This structure completely solves cable failure risks caused by on-site pipeline extrusion, equipment friction and construction collision.

Equipped with double-layer shielding system of tinned copper braid and aluminum foil full wrapping, it effectively isolates industrial electromagnetic crosstalk, power frequency interference and ground loop potential difference. After strict factory impedance matching, it realizes distortion-free and stable transmission of high-frequency eddy current signals, adapting to medium and long-distance wiring in complex electromagnetic environment workshops.

4. Preamplifier & System Matching Solution

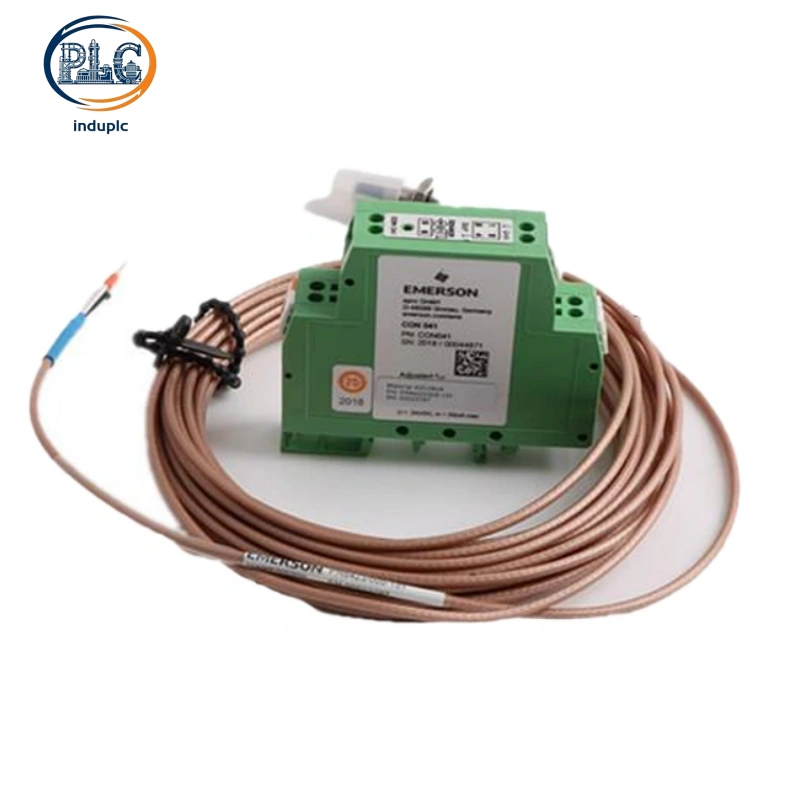

PR6423/000-131 forms a high-stability monitoring loop with EPRO original CON series preamplifiers, fully compatible with all MMS6000 TSI system modules, especially suitable for matching fixed terminal wiring systems:

• CON031: Dedicated terminal wiring preamplifier, perfectly adapted to PR6423/000-131 for unified cabinet terminal wiring projects, widely used in old MMS6000 system renovation and batch replacement.

• CON021: Standard cabinet DIN-rail mounted preamplifier, suitable for conventional indoor centralized control rooms, realizing stable signal demodulation and linear voltage output.

• CON011: IP67 waterproof and explosion-proof preamplifier, applicable to field harsh and hazardous area monitoring scenarios.

5. Core Product Selling Points & Industrial Values

• Mechanical Armored Protection: Exclusive armored cable design resists extrusion, scratch and tensile damage, greatly improving field impact resistance and service life in harsh construction environments.

• Ultra-high Measurement Accuracy: ±0.25% FS high linearity and ±0.1% repeatability realize ultra-precise micro-vibration monitoring, meeting high-standard equipment predictive maintenance requirements.

• Strong Harsh Environment Adaptability: Oil-proof, high-temperature resistant and mechanically reinforced structure adapts to complex industrial working conditions that ordinary standard probes cannot cope with.

• Excellent Signal Stability: Professional shielding and impedance matching technology eliminate long-line signal jitter and interference, ensuring zero-drift stable operation of key safety monitoring loops.

• Universal Plug-and-play Compatibility: Standard installation size and electrical parameters support seamless replacement of ordinary PR6423 probes, low renovation cost and simple on-site debugging.

6. Industrial Application Scenarios

• High-precision vibration and displacement monitoring of steam turbines and gas turbines in thermal power plants with complex cabinet wiring

• Harsh working condition monitoring of petrochemical compressors and rotating equipment with cable extrusion and friction risks

• Precision mechanical condition monitoring for industrial sites with frequent construction and equipment maintenance

• High-precision upgrade and armored reinforcement renovation of old standard eddy current sensor monitoring loops
