EPRO PR6424/011-140 + CON021 4m Armored 3mm Large-range Eddy Current Sensor Set

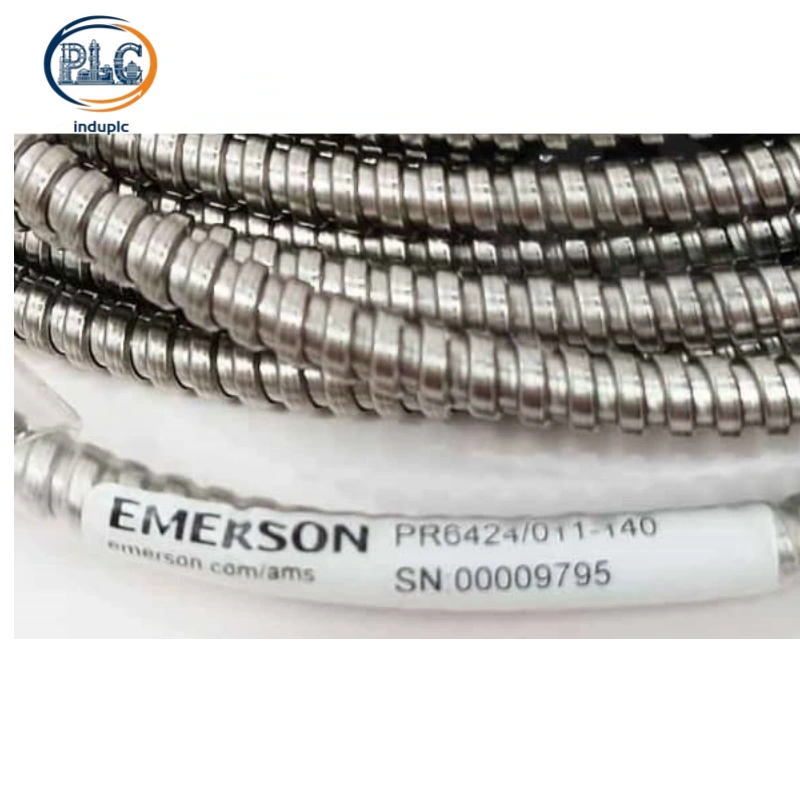

The EPRO PR6424/011-140 matched with original CON021 preamplifier forms a factory-integrated calibrated large-range armored eddy current monitoring assembly for heavy-duty industrial scenarios. Differentiated from standard short-cable and ordinary rigid probes, this complete set features exclusive 4m extended armored cable, 140-level enhanced mechanical protection, M18 heavy-duty thread and 3mm ultra-wide linear measurement range. It solves long-span wiring mechanical damage, large shaft runout measurement saturation and long-line signal attenuation pain points of conventional probes. Fully factory-calibrated for cabinet centralized signal processing, it delivers consistent low-drift and high-linear precision, perfectly compatible with MMS6000 TSI system. It is the preferred standard monitoring solution for large-span dispersed heavy rotating units in thermal power, petrochemical and heavy process industries.

1. PR6424/011-140 Probe Structural & Protective Advantages

PR6424/011-140 adopts thickened integral stainless steel probe body with upgraded high-temperature oil-resistant and anti-fatigue passivation treatment. Adopting classic PR6424 series M18×1.5 heavy-duty large-diameter thread, it provides far higher mounting rigidity and anti-loosening performance than M10 standard probes, reliably resisting severe vibration impact and long-term load fluctuation of heavy compressors and large turbines without installation deviation or thread loosening.

Equipped with customized 4m medium-long full armored cable and exclusive 140 enhanced protection specification, the probe adds seamless metal outer armor to withstand field extrusion, sharp friction and tensile stress. It effectively avoids cable insulation breakage and aging failure in complex maintenance-intensive field wiring paths. The extended 4m cable length fills the gap between 3m medium and 6m long specifications, perfectly adapting to medium-long span equipment-cabinet fixed wiring layout. Standard mounting dimensions support plug-and-play replacement of old PR6424 large-range probes, minimizing on-site renovation workload.

2. 3mm Large-range Core Measurement Performance

As a high-spec heavy-duty probe, it inherits the series 3mm extended effective linear range and professional 2.67V/mm sensitivity, breaking the 2mm range limitation of ordinary PR6423 sensors. Precisely factory-calibrated with standard ferromagnetic steel, the full-scale linear error is strictly controlled within ±1% FS. It accurately captures large-amplitude vibration, excessive radial runout and large floating displacement of heavy high-speed rotating units, completely solving measurement saturation and data distortion failures of standard probes under heavy-load fluctuating working conditions.

It supports ultra-wide 0.1kHz–50kHz full-band frequency response, covering ultra-low-speed creeping, variable-speed adjustment and full-load high-speed operation of all heavy industrial equipment. With a working temperature range of -40℃ to +180℃ and ultra-low thermal drift, it maintains stable linear output under drastic field temperature changes and long-term heat radiation, adapting to 24/7 uninterrupted heavy-duty online monitoring and reducing frequent calibration maintenance costs.

3. 4m Armored Cable Transmission & Anti-interference Strength

Matched with professional 4-meter medium-long armored cable, the probe adopts high-purity oxygen-free copper core and high-temperature PTFE composite insulation layer, possessing superior anti-aging, oil corrosion and thermal radiation resistance. The integrated metal armor layer provides all-round mechanical protection, eliminating extrusion deformation, bending fatigue and wear damage that easily occur in ordinary rigid cables during long-term medium-long distance fixed laying.

Adopting double-layer shielding of full-coverage aluminum foil and tinned copper braid, the cable strongly suppresses strong electromagnetic coupling noise, power frequency interference and ground loop potential difference generated by surrounding high-power heavy equipment. The whole probe set undergoes exclusive 4m long-line impedance matching calibration before delivery, realizing low-loss and distortion-free transmission of wide-frequency large-range eddy current signals, effectively solving long-line signal attenuation and waveform distortion of medium-long span monitoring loops.

4. CON021 Preamplifier Customized Matching Characteristics

The supporting CON021 DIN-rail cabinet preamplifier is specially factory-calibrated for PR6424/011-140 large-range 4m armored probe, with targeted signal compensation and parameter optimization different from ordinary short-cable matching schemes, forming a dedicated heavy-duty medium-long distance high-stability monitoring loop:

• 4m Long-line Loss Compensation: Built-in customized signal restoration algorithm compensates natural transmission attenuation of 4m armored cables, accurately restoring full-band large-amplitude vibration and displacement original signals without waveform truncation or distortion.

• 3mm Large-range Demodulation Optimization: Optimized internal circuit parameters for PR6424 ultra-wide measuring range, ensuring linear and continuous signal demodulation under large displacement fluctuation, avoiding data saturation and dead zone phenomenon.

• Indoor Cabinet Anti-interference Adaptation: Standard DIN-rail mounting design adapts to centralized cabinet deployment, with enhanced internal electromagnetic shielding to resist multi-module crosstalk in dense cabinet environments, maintaining stable long-term output accuracy.

5. Complete Set Core Selling Points & Industrial Value

• 3mm Large-range Heavy-duty Monitoring: Extended linear range adapts to large displacement and high-amplitude vibration of heavy rotating machinery, completely avoiding measurement saturation of standard 2mm probes.

• 4m Armored Medium-long Span Adaptation: Exclusive 4m armored specification perfectly matches medium-long distance field wiring, balancing layout neatness and mechanical protection performance.

• 140-level Enhanced Protection: Upgraded mechanical anti-extrusion and anti-wear structure improves field durability, suitable for harsh working conditions with frequent equipment maintenance and cable friction.

• Factory Integrated Calibration: Probe-cable-preamplifier one-piece calibration eliminates on-site secondary debugging, ensuring overall loop precision and reducing commissioning difficulty.

• M18 Reinforced Thread Stability: Large-diameter thickened thread structure resists extreme vibration of heavy-load equipment, ensuring drift-free long-term fixed-point monitoring.

6. Industrial Application Scenarios

• Medium-long span large-amplitude vibration and displacement monitoring of heavy-duty steam turbines and gas turbines in thermal power plants

• Harsh-condition monitoring of petrochemical high-power centrifugal compressors with cable wear risks and large shaft runout characteristics

• Long-distance fixed-point monitoring of dispersed heavy industrial equipment with medium-long span wiring and complex electromagnetic interference

• High-protection and large-range upgrade renovation of old 3m ordinary rigid probe monitoring systems for heavy-duty units
