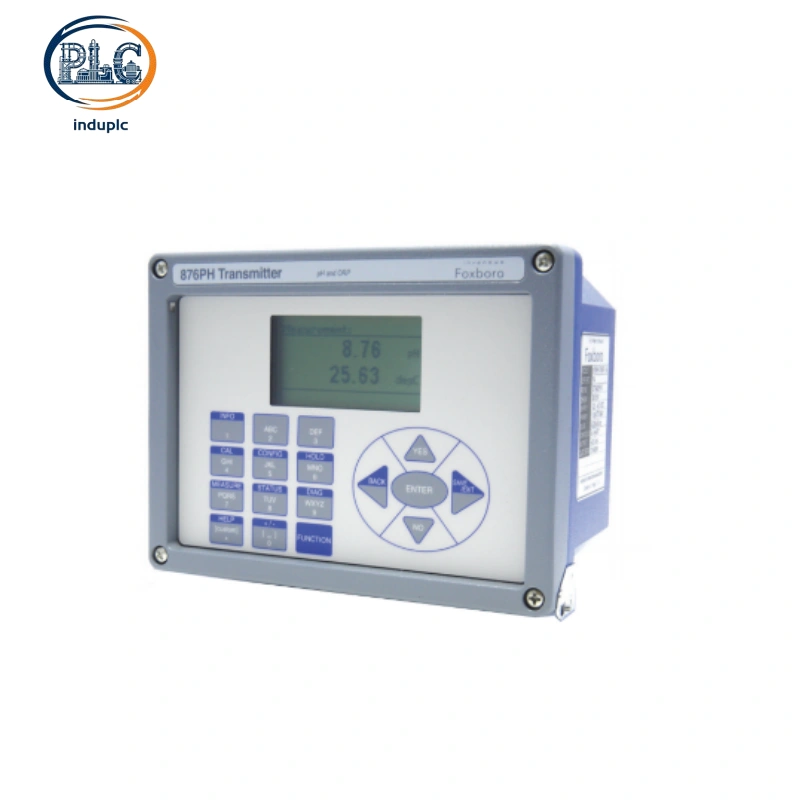

Foxboro 876PH-TYFA Intelligent pH/ORP Transmitter | HART Communication Field Mount Analyzer

1. Product Overview

The Foxboro 876PH-TYFA is a high-performance field-mounted intelligent transmitter engineered for industrial pH, ORP and ISE ion selective measurement. As a core device of Foxboro’s advanced electrochemical analysis series, this model adopts a rugged field installation structure, differing from traditional panel-mounted water quality analyzers, and is specially optimized for on-site harsh industrial environments. Supporting universal smart and analog sensor access, it integrates precise liquid phase detection, digital signal processing and remote communication functions in one compact unit.

Designed with industry-standard 12.8–42V DC wide-range power supply and built-in HART 7 digital communication protocol, the transmitter realizes dual signal output of 4-20mA analog and digital HART data. It features IP66 and NEMA 4X high-grade enclosure protection, perfectly adapting to outdoor field pipelines, production workshops and corrosive industrial sites. With multi-certified intrinsic safety performance including ATEX, IECEx and FM, it meets explosion-proof monitoring requirements for petrochemical, chemical and pharmaceutical hazardous areas, supporting long-term stable unattended online monitoring.

2. Core Technical Specifications

The 876PH-TYFA delivers professional-grade detection accuracy and stable operational parameters, tailored for full-cycle industrial process water and chemical liquid monitoring, with standardized and reliable technical indicators:

• Measuring Function Supports real-time detection of solution pH value, oxidation-reduction potential (ORP) and ion selective electrode (ISE) parameters, compatible with multiple electrochemical sensor types.

• Power Supply Range Adopts wide DC voltage input of 12.8V to 42V, adapting to diverse industrial field power distribution modes, with low power consumption for continuous long-term operation.

• Signal Output & Communication Standard 4-20mA two-wire analog output paired with HART 7 digital communication, enabling simultaneous analog transmission and remote digital parameter configuration.

• Display & Operation Equipped with backlit multi-functional LCD screen and four-button integrated keypad, supporting real-time display of 1–3 measurement variables and on-site parameter calibration and setting.

• Environmental Resistance Electronics operating temperature ranges from -30°C to +70°C, solution temperature adaptation up to 200°C; IP66/NEMA 4X dustproof and waterproof enclosure resists outdoor wind, rain and dust erosion.

• Sensor Adaptation Compatible with traditional analog electrodes and Foxboro smart digital sensors, supporting plug-and-play sensor replacement and dual sensor signal acquisition.

3. Differentiated Product Core Features

Compared with conventional ordinary pH analyzers, the Foxboro 876PH-TYFA boasts unique intelligent diagnosis, adaptive calibration and field anti-harsh design, focusing on improving on-site monitoring efficiency and reducing equipment maintenance costs:

• Intelligent Sensor Predictive Diagnosis Built-in exclusive electrode health detection function, capable of identifying electrode aging, probe fouling and slope attenuation in advance. It pushes predictive maintenance reminders instead of passive fault alarms, effectively avoiding monitoring failure caused by electrode performance degradation and improving system operation stability.

• Dual-mode Local & Remote Configuration Supports on-site parameter setting, calibration and data viewing via local keypad and LCD screen. Meanwhile, HART protocol enables remote device configuration, data query and fault diagnosis through handheld communicators or upper computer systems, greatly simplifying field debugging workload.

• Automatic Temperature Adaptation Compensation Matches multiple specifications of RTD temperature sensors, achieving real-time dynamic temperature correction for measured liquid. It eliminates detection errors caused by drastic fluid temperature changes, ensuring consistent measurement accuracy in variable process working conditions.

• Multi-layer Safety & Data Protection Comes with authority password lock to prevent unauthorized parameter modification. The device can store 2 sets of complete system configurations, realizing rapid parameter recovery after equipment replacement or power failure restart, ensuring uninterrupted monitoring.

• Explosion-proof & Anti-corrosion Field Design Certified with multiple international intrinsic safety explosion-proof standards, the reinforced sealed enclosure resists chemical corrosion, dust accumulation and water splashing, suitable for long-term operation in flammable, explosive and corrosive industrial field environments.

4. Industrial Application Scenarios

With its field-mounted rugged design, intelligent diagnosis capability and explosion-proof safety performance, the Foxboro 876PH-TYFA is widely deployed in high-standard process liquid monitoring scenarios across multiple industries. It is mainly used for pH and ORP online monitoring of chemical reaction liquids in fine chemical production, water quality parameter supervision of pharmaceutical purified water and process liquid, corrosive liquid detection and sewage treatment monitoring in petrochemical plants, and precise water quality control of circulating water and wastewater discharge in power plants. Its HART remote communication and predictive maintenance functions are particularly suitable for large-scale distributed monitoring systems, helping enterprises realize intelligent management of process water quality.
