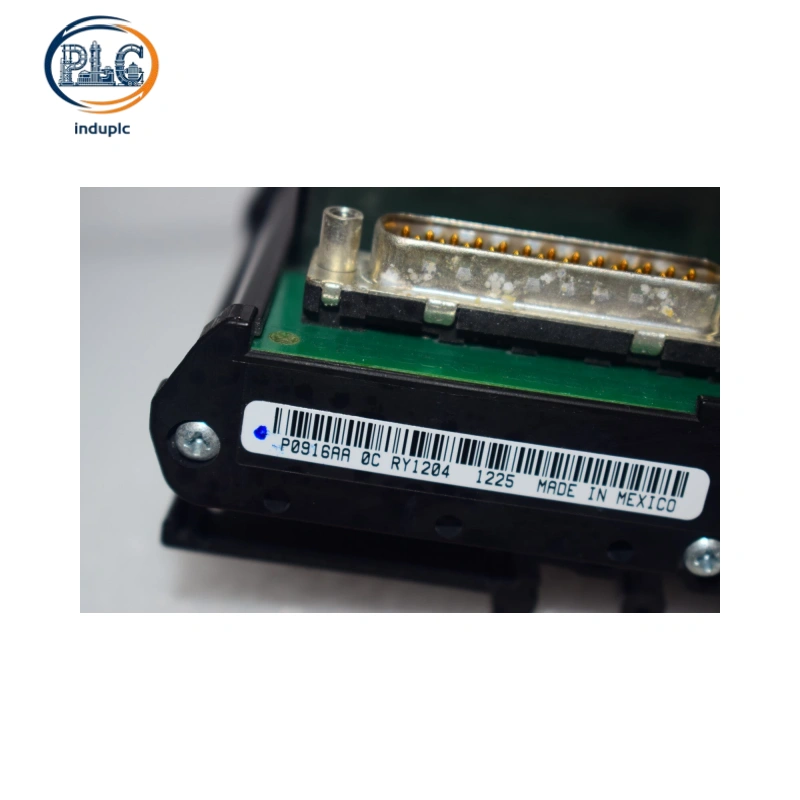

Foxboro FBM201 P0916AA 8-Channel Analog Input Field Module | I/A Series DCS I/O Unit

1. Product Overview

The Foxboro FBM201 P0916AA belongs to Compact 200 Series I/O subsystem under I/A Series distributed control system. It serves as a field analog signal acquisition unit responsible for collecting standard current signals transmitted from site sensors and transmitters. The module converts analog field signals into digital data and transmits information to system control processors via redundant fieldbus.

Equipped with independent channel isolation architecture, this hardware effectively suppresses interference risks such as ground loop voltage difference. It supports HART compatible field equipment connection, bringing flexibility for intelligent instrument debugging and remote diagnosis. With industrial reinforced hardware design, it meets Class G3 harsh environment standards and supports long-term continuous operation inside central control cabinets for process industries.

2. Core Technical Parameters

• Channel Configuration: 8-channel analog input

• Input Signal: 0–20mA DC (compatible with 4–20mA transmitters)

• Channel Isolation: 600VAC galvanic isolation between channels

• ADC Resolution: 16-bit Sigma-Delta conversion

• Measurement Accuracy: ±0.03% of full span

• Communication Bus: Redundant 2Mbps fieldbus

• Compatibility: HART signal compatible, matched with I/A Series FCP controller

• Environmental Grade: Class G3 industrial anti-corrosion standard

• Installation Mode: DIN rail baseplate rack mounting

3. Core Product Features

Different from ordinary low-density signal acquisition boards, FBM201 P0916AA targets continuous process control scenarios and focuses on signal stability and maintainability:

• Independent Channel Protection Design Each channel features separated isolation circuit. Fault on single measuring loop will not affect other signal channels, limiting fault influence range and improving overall system operation safety.

• High Precision Analog-to-Digital Conversion Adopts Sigma-Delta sampling technology. It captures tiny signal fluctuation from field transmitters, delivering consistent measurement data for closed-loop regulation of flow, pressure and temperature.

• Redundant Communication Support Dual-path fieldbus communication interface automatically switches link channel once communication failure occurs, avoiding data interruption caused by single line breakdown.

• Flexible Signal Parameter Configuration Users can set integration time and rate-of-change alarm thresholds for each channel via system software, adapting to different response requirements of diverse production processes.

• Easy On-site Maintenance Layout Cooperates with matched terminal assembly (TA) to realize separated field wiring and module body. Operators can replace modules without removing field instrument cables, greatly shortening maintenance downtime.

4. Industrial Application Scenarios

Foxboro FBM201 P0916AA is widely deployed in large-scale continuous manufacturing industries that adopt I/A Series DCS platforms. Typical occasions include petrochemical refining devices, thermal power unit control systems, pharmaceutical production process monitoring, natural gas pipeline parameter collection and municipal sewage automatic control projects. The module receives signals from pressure transmitters, flow meters, temperature transmitters and other field instruments, forming the fundamental data acquisition layer of the whole automation control network.
