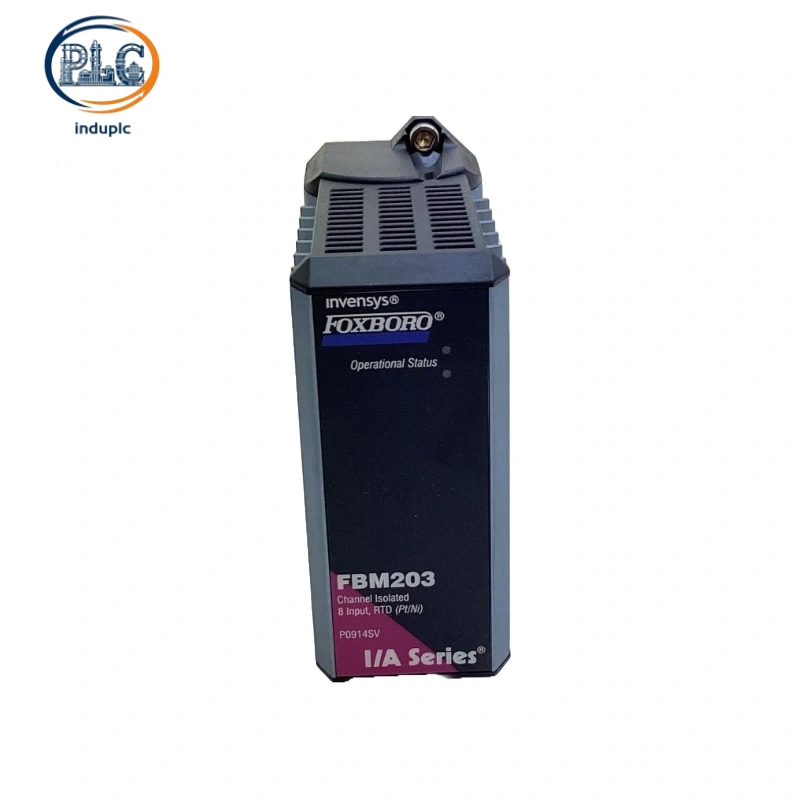

Foxboro FBM203 P0914SV 8-Channel RTD Resistance Temperature Input Module | I/A Series DCS Unit

1. Product Overview

The Foxboro FBM203 P0914SV is a dedicated RTD resistance temperature acquisition module within the I/A Series Compact 200 I/O system. Unlike thermocouple and current input modules, this unit is exclusively built for high-precision resistance-based temperature signal collection, perfectly matching platinum, nickel and copper RTD sensors widely used in industrial sites. It converts resistance variation signals caused by temperature changes into standard digital values for DCS system calculation, realizing stable and repeatable process temperature monitoring.

Adopting full-channel galvanic isolation and professional line resistance compensation technology, the module effectively eliminates measurement errors induced by long field wiring resistance. It supports flexible configuration of multiple RTD types and rate-of-change alarm logic, adapting to continuous temperature tracking in complex process environments. With Class G3 harsh industrial grade design and redundant fieldbus communication, it delivers reliable long-term operation for petrochemical, power and pharmaceutical automated production systems.

2. Core Technical Parameters

• Channel Configuration: 8-channel isolated RTD temperature input

• Supported Sensor: Pt100, nickel and copper industrial resistance temperature detectors

• Channel Isolation: 600VAC galvanic isolation per channel, channel-to-ground isolation

• Conversion Technology: 16-bit Sigma-Delta high-precision ADC conversion

• Max Lead Resistance: 50Ω per line with automatic line resistance compensation

• Measurement Accuracy: Ultra-stable linear precision for industrial temperature range

• Communication Bus: Redundant 2Mbps fieldbus transmission

• Environmental Grade: Class G3 harsh industrial environment adaptation

• Working Temperature: -40°C ~ +85°C wide temperature operation range

• Installation Mode: Standard DIN rail baseplate rack mounting

3. Core Product Features

Focused on high-stability resistance temperature measurement, FBM203 P0914SV has unique technical advantages different from thermocouple and universal analog modules:

• Specialized RTD Signal Matching Optimized for resistance temperature detector signals, the module supports mainstream industrial RTD specifications. It precisely captures tiny resistance changes caused by subtle temperature fluctuations, providing more stable and repeatable measurement results compared with thermocouple acquisition in medium and low temperature monitoring scenarios.

• Automatic Lead Resistance Compensation Built-in intelligent line resistance correction function offsets signal deviation generated by long-distance field wiring and cable impedance difference. It guarantees consistent temperature reading accuracy even in long-span equipment layout, eliminating manual line resistance calibration workload.

• Independent Channel Isolation Protection Every channel adopts fully isolated circuit design. Single-channel sensor failure, short circuit or wiring fault will not affect other temperature loops, limiting fault range and improving overall system operational safety and stability.

• Configurable Temperature Change Alarm Supports user-defined temperature rate-of-change threshold and filtering parameters via system software. It effectively filters occasional signal jitter and quickly responds to abnormal temperature mutation, realizing proactive equipment overheating and process temperature deviation early warning.

• Harsh Environment Industrial Adaptability Compact reinforced hardware structure meets G3 industrial anti-corrosion and anti-vibration standards. It maintains stable acquisition performance under long-term cabinet temperature fluctuation and electromagnetic interference, suitable for 24/7 unattended industrial operation.

4. Industrial Application Scenarios

Foxboro FBM203 P0914SV is widely deployed in industrial scenarios requiring stable medium-low temperature precision monitoring. It is commonly used for pipeline and equipment surface temperature collection in petrochemical refining processes, auxiliary equipment temperature monitoring in thermal power units, constant temperature control tracking in pharmaceutical and fine chemical production, and environmental temperature detection in sewage treatment systems. As a professional RTD temperature acquisition unit, it provides reliable basic data for process temperature closed-loop control, equipment condition monitoring and production parameter trend analysis.
